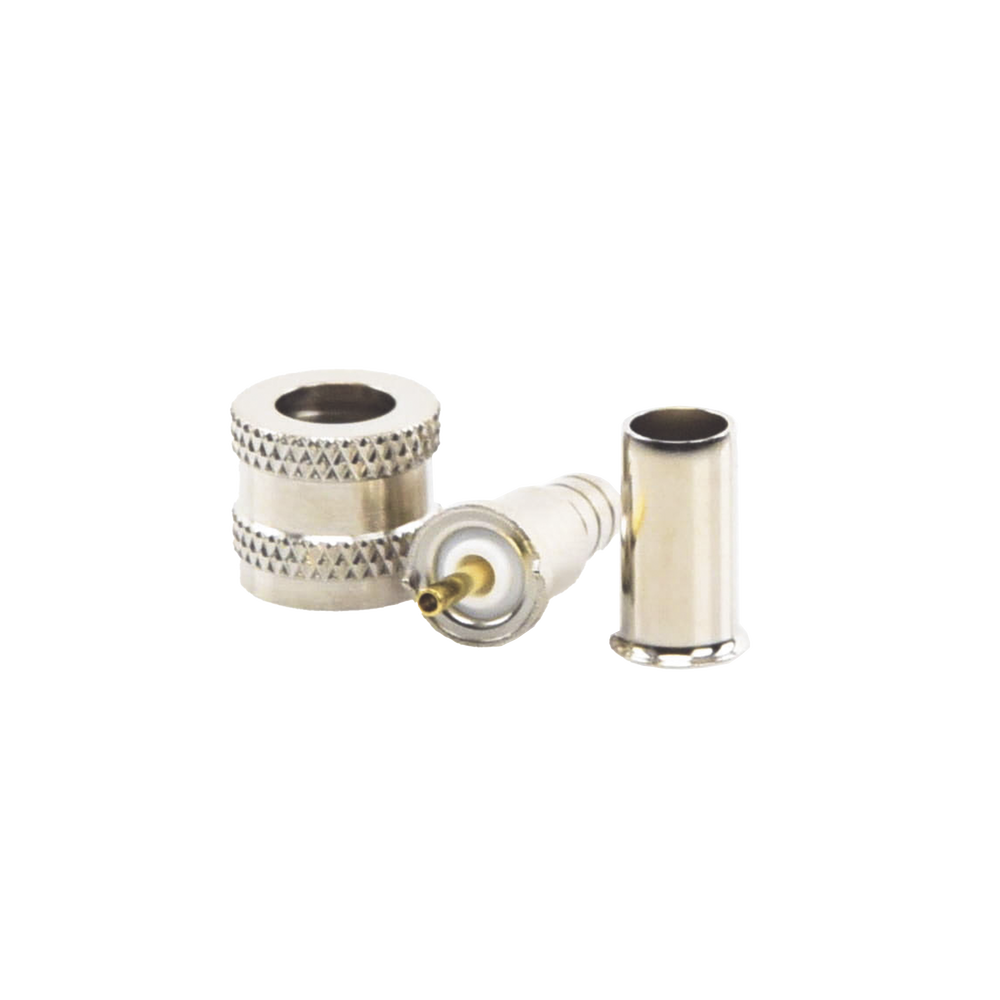

RF Industries RFU-600-1 Mini UHF Male Crimp Connector 50 Ohm DC-2.5 GHz
Product identifier
SKU
RFU-600-1
$13.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Overview
The RFU-600-1 Mini UHF Male Crimp Connector from RF Industries is ideal for radio frequency applications, delivering reliable performance with a 50-ohm impedance. Designed to support an operating voltage of up to 335 VRMS at sea level and a frequency range from DC to 2.5 GHz, this connector ensures low insertion loss ≤ 0.3 dB at 2 GHz and a maximum VSWR of 1.25:1.
Technical Specifications
- Impedance: 50 ohms
- Operating Voltage: 335 VRMS @ sea level
- Frequency Range: DC-2.5 GHz
- Insertion Loss: ≤ 0.3 dB @ 2 GHz
- Max VSWR: 1.25:1 @ 2 GHz
Advanced Specifications
- Shell Material: Brass with nickel finish
- Contact: Brass with gold plating
- Contact Diameter: 1.09 mm
- Body Diameter: 23.88 mm
- Total Length: 29.21 mm
Applications
This connector is ideal for RF applications, including telecommunications and data transmission, where high signal quality and compatibility with multiple cable types are required.
Key Features
- Foldable Ring Design for Easy Installation and Removal
- Nickel-Plated Brass Body for Superior Durability and Corrosion Resistance
- Gold-Plated Center Contact Ensures Optimal Signal Conductivity
- High-Quality Delrin Dielectric Insulator for Stable Performance
- 50 Ohm Impedance Matches Industry Standard RF Applications
- Compact Mini UHF Design Saves Space in Dense Installations
