REYEE

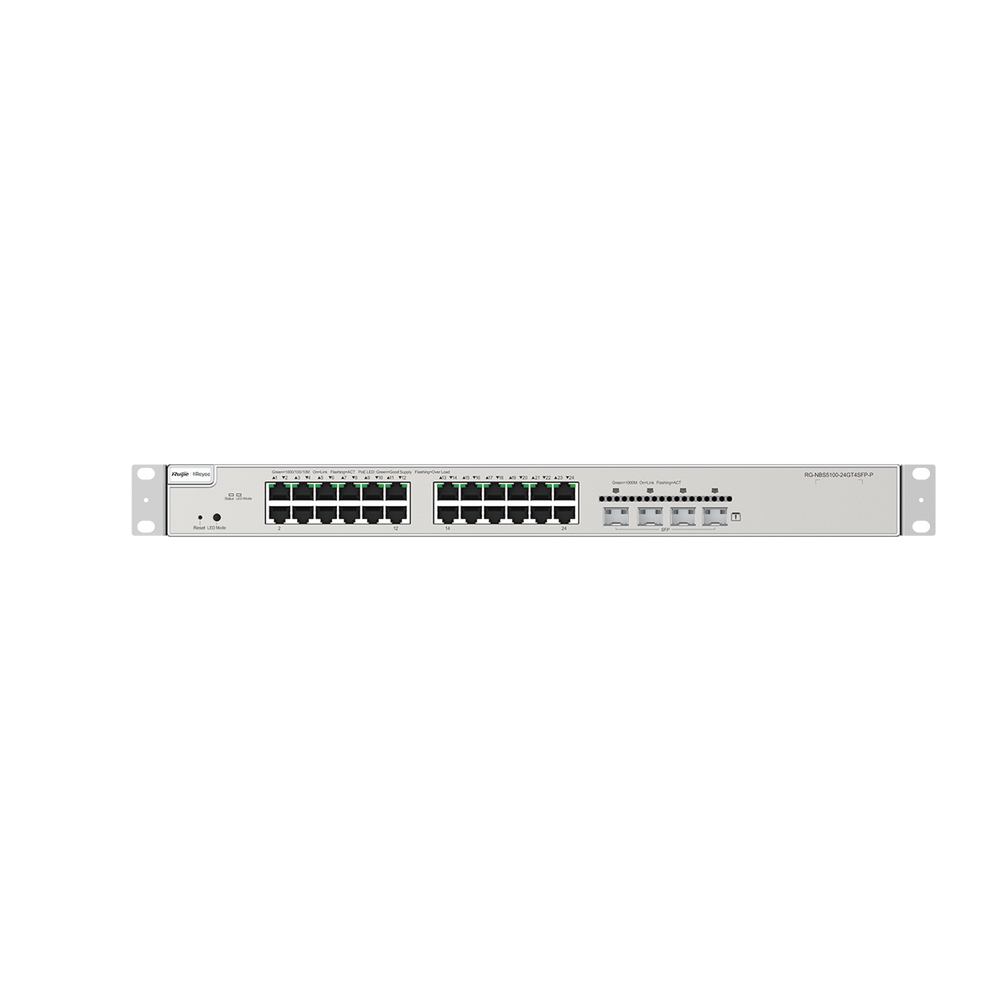

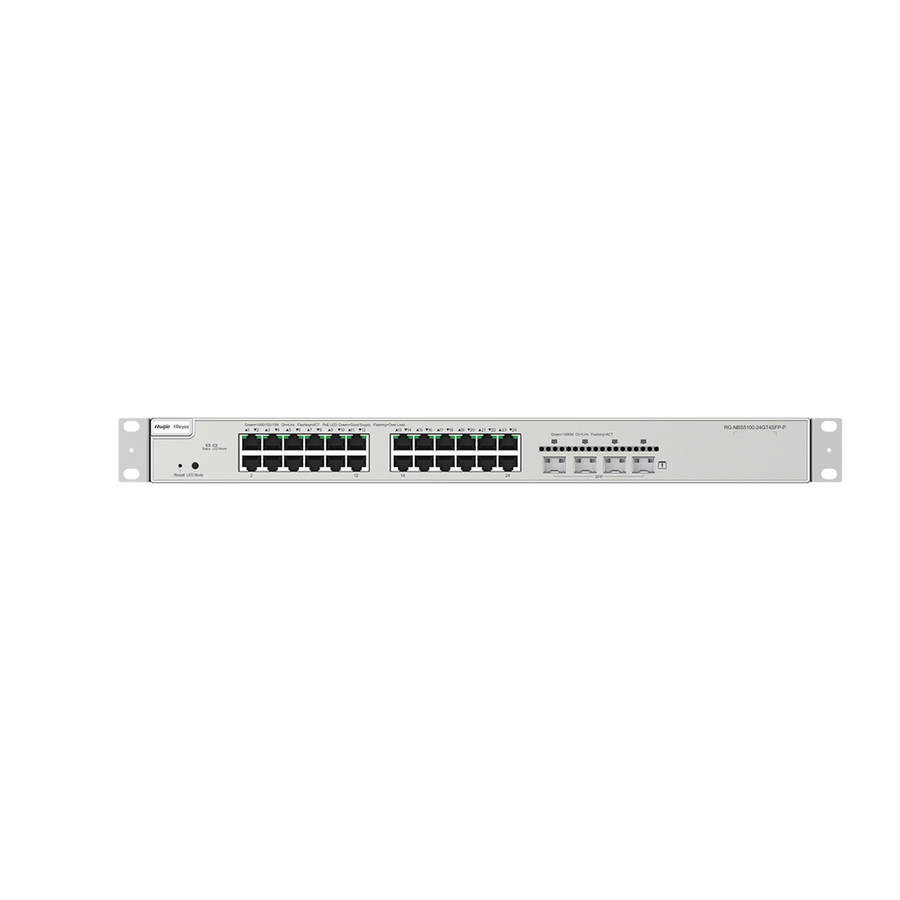

Reyee RG-NBS5200-24GT4XS-P(US) 24-Port Gigabit PoE+ Switch 4 SFP+ 370W
Product identifier
SKU
RG-NBS5200-24GT4XS-P(US)
$358.74
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Package Contents
| Item | Quantity |
|---|---|
| RG-NBS5200-24GT4XS-P Switch | 1 |
| Mounting Bracket | 2 |
| Rubber Pad | 4 |
| M4 x 8 mm Screw | 8 |
| Grounding Cable | 1 |
| Power Cord (1.8 m/5.91 ft) | 1 |
| Power Cord Retention Clip | 1 |
| User Manual | 1 |
Key Specifications
| Ports | 24 × 10/100/1000Base-T PoE+ ports, 4 SFP+ uplink | Layer Type | Layer 3 |
|---|---|---|---|
| PoE (802.3af)/PoE+ (802.3at) | 370W | Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps | MAC Address Table | 16000 |
| Maximum VLAN | 4094 | Fan | Dual, Left/Right-to-Rear |
| Port Surge | 6 kV | Dimensions (W × D × H) | 440 mm × 350 mm × 43.6 mm |
| Weight (With Package) | 4.5 kg | MTBF | > 200,000 |
Key Features
- Free Cloud Management With Zero-Touch Provisioning
- 128 Gbps Switching Capacity for High-Performance Networks
- 4 SFP+ 10G Fiber Uplink Ports for Backbone Connectivity
- 370W Total PoE Budget for Powering Multiple Devices
- Supports VLANs and Link Aggregation for Network Optimization
- Dual Cooling Fans for Reliable 24/7 Operation
Product support
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
