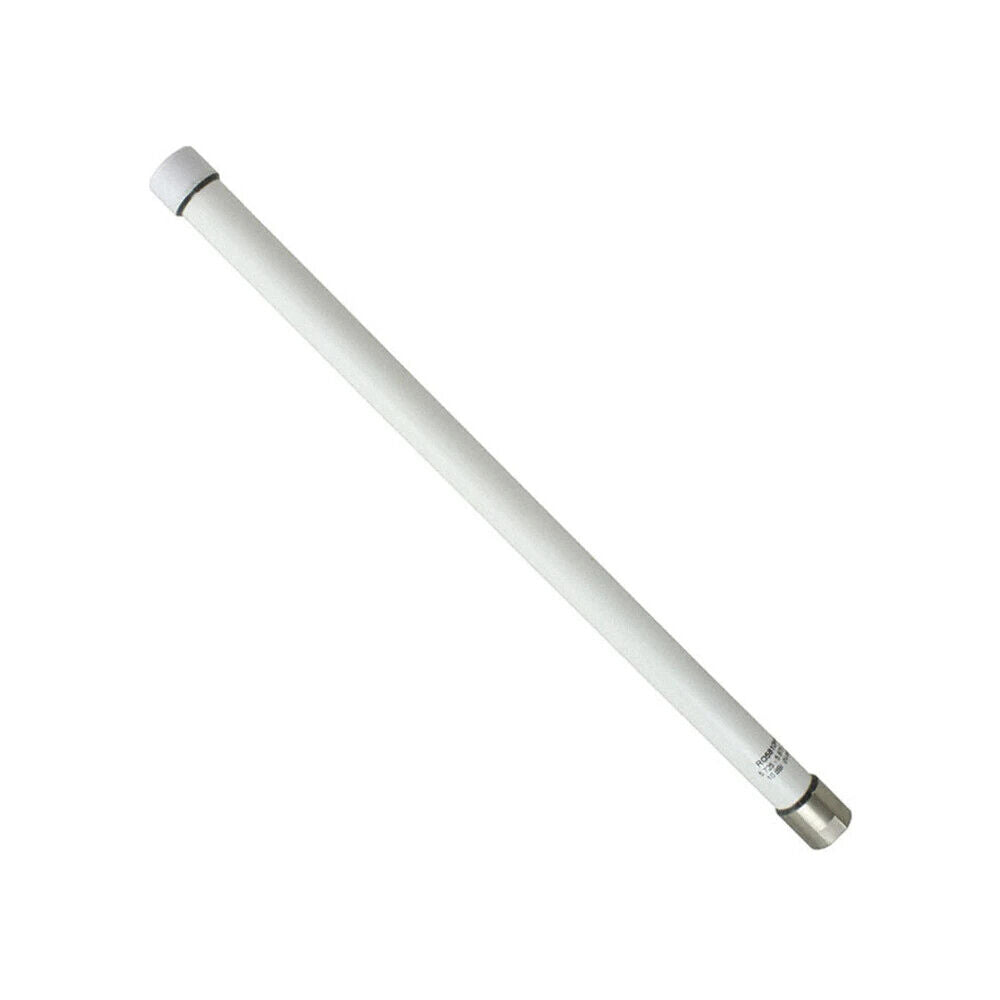

Pulse Larsen RO5810NM Omnidirectional Antenna 10 dBi 5GHz fiberglass N Male

The Pulse Larsen RO5810NM is an omnidirectional fiberglass antenna engineered for 5 GHz wireless networking deployments. Delivering 10 dBi of gain, it concentrates RF energy into a low, wide radiation pattern ideal for point-to-multipoint coverage across open floors, outdoor campuses, or industrial yards where a single elevated antenna must serve dispersed client devices. The durable fiberglass radome withstands the mechanical and environmental stresses of permanent outdoor or indoor installations, while the N Male connector provides a secure, low-loss interface to access points, bridges, and other N-type-equipped radio equipment. Wall and pole mounting compatibility gives installers straightforward integration into existing infrastructure, and RoHS-6 compliance supports procurement programs with environmental material restrictions.

Key features & benefits

• 10 dBi Omnidirectional Gain — A 10 dBi gain figure compresses the radiation pattern vertically and extends horizontal reach, increasing effective range for client devices distributed around a central access point or bridge without requiring beam steering or antenna repositioning.
• 5 GHz Band Operation — Optimized for the 5.725–5.925 GHz operating band, the antenna aligns with less-congested 5 GHz spectrum allocations, supporting cleaner channel environments compared to the crowded 2.4 GHz space.
• Fiberglass Radome Construction — A fiberglass radome provides structural rigidity and weather resistance, protecting the internal radiating element against mechanical impact, UV exposure, and moisture ingress in permanent outdoor or semi-exposed indoor installations.
• N Male RF Connector — The industry-standard N Male connector delivers a robust, weatherproof mechanical and electrical interface, minimizing insertion loss at the feedpoint and ensuring compatibility with the wide range of N-type-terminated coaxial cables and radio ports used in professional networking gear.
• Wall and Pole Mount Versatility — Integrated mounting provisions accommodate both wall surfaces and round poles, giving network engineers and field installers the flexibility to position the antenna at the optimal elevation and orientation without custom hardware fabrication.
• RoHS-6 Compliance — RoHS-6 compliance confirms the antenna is manufactured without the six substances restricted under the EU RoHS directive, satisfying environmental procurement requirements for commercial, government, and institutional customers.
