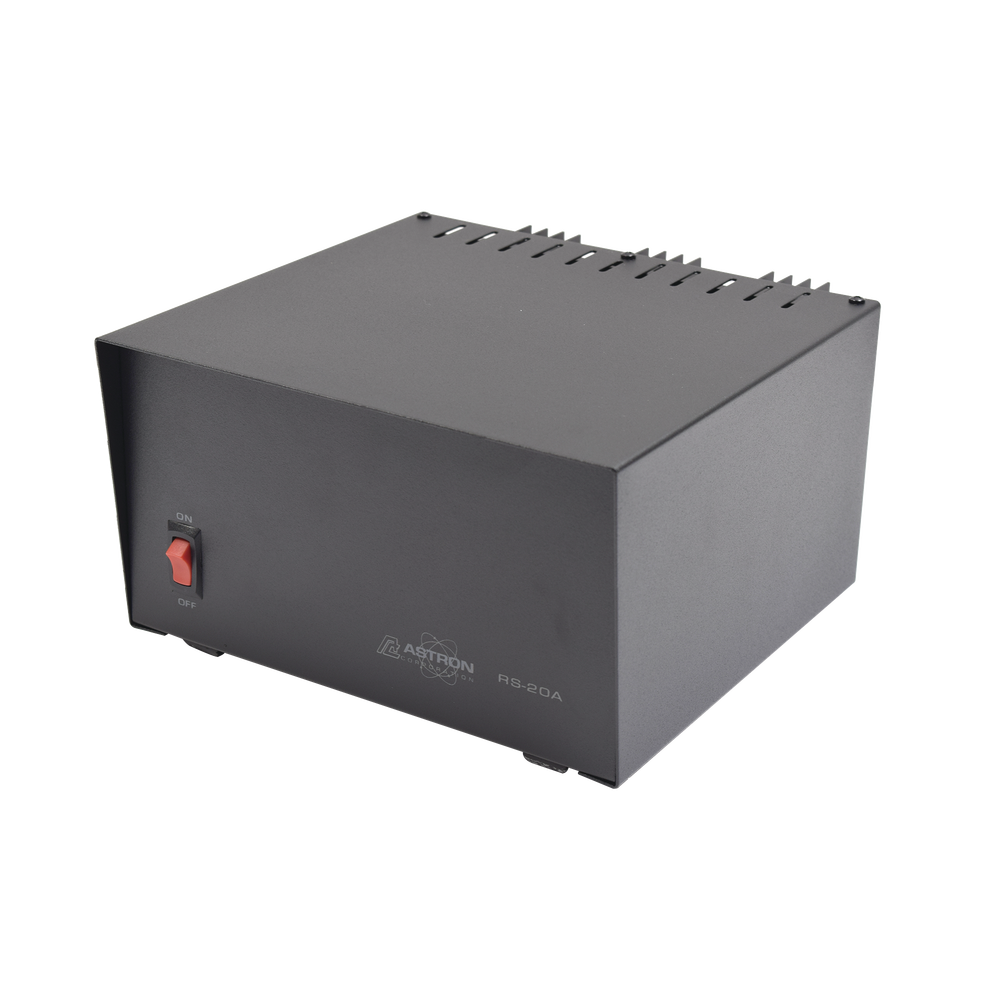

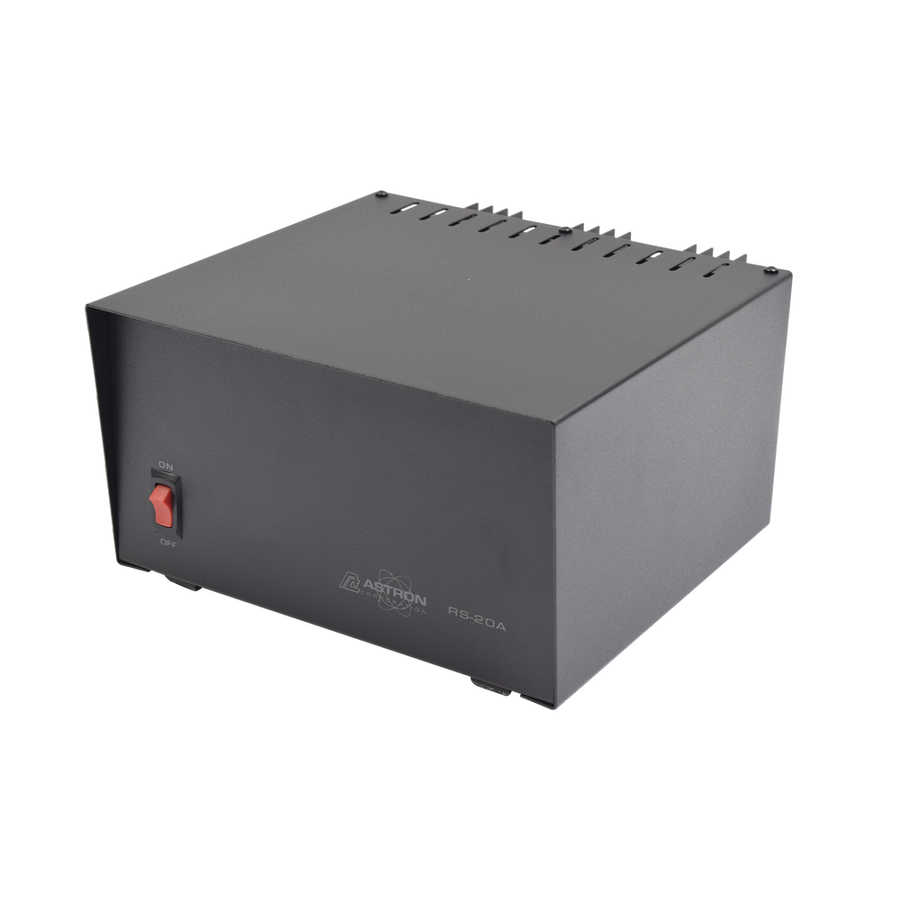

Astron RS-20A 20A 13.8VDC Linear Power Supply 50W Radio

• Three conductor power cord

• Solid-state electronically regulated

• Made in the U.S.A.

• Fold-back current limiting protects power supply performance specifications from an excessive current & continuous shorted output

• Input voltage: 105-125 VAC

• Crowbar overvoltage protection on all models

• Output Voltage: 13.8 VDC ± 0.05 volts (internally adjustable: 11-15 VDC)

• Maintain regulation & low ripple at low line input

• Ripple less than 5mv peak to peak (full load & voltage low line)

• Heavy-duty heat sink

• Chassis mount fuse

Works on radios up to 50w power

Key Features

• Solid State Electronic Regulation for Reliable Performance
• Current Limiter Protects Against Overloads and Short Circuits
• Maintains Stable Regulation During Low Voltage Input Conditions
• Heavy Duty Heat Sink for Continuous High Power Operation
• Optimized for Professional Radios up to 50W Power Output
• Made in USA With Quality Components Since 1976
