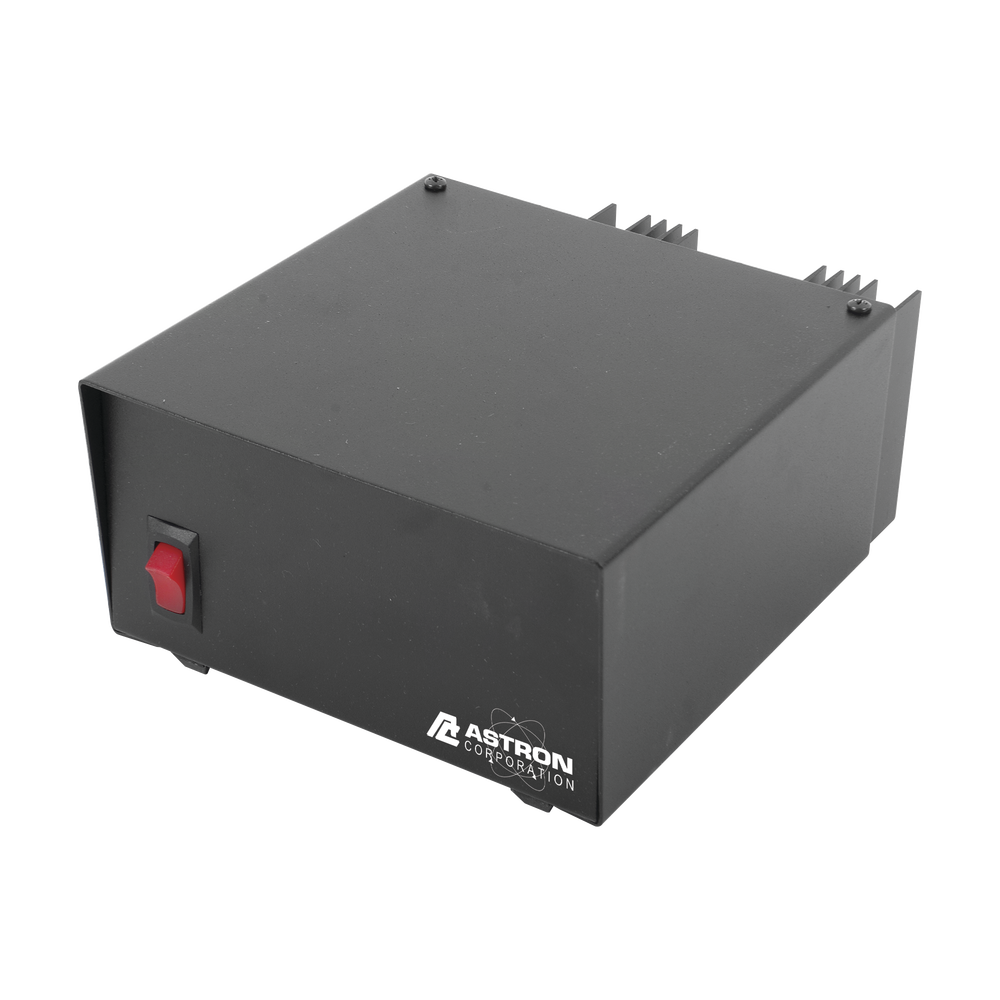

Astron RS12A220V Linear Power Supply, Input: 220 Vac, Output: 13.8 Vdc, 12A.

ASTRON

Astron RS12A220V Linear Power Supply, Input: 220 Vac, Output: 13.8 Vdc, 12A.

Product identifier
SKU RS12A220V
$202.49
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

-Voltage input: 220 Vac.
-Output Voltage: 13.8 Vdc.
-Maximum current: 12 A.
-Continuous: 9 A.
-Backup: No.

* Recommended for radios up to 30W of power.

Key Features

  • Stable 13.8V DC Output With ±0.05V Precision Regulation
  • Maximum 12A Current at 50% Duty Cycle Operation
  • Ultra Low Ripple for Clean Signal Quality Applications
  • Compact 4 x 8 x 9 Inch Design for Space-Saving Installation
  • Heavy-Duty Heat Sink for Rugged Continuous Operation
  • Fold-Back Current Limiting and Crowbar Overvoltage Protection
