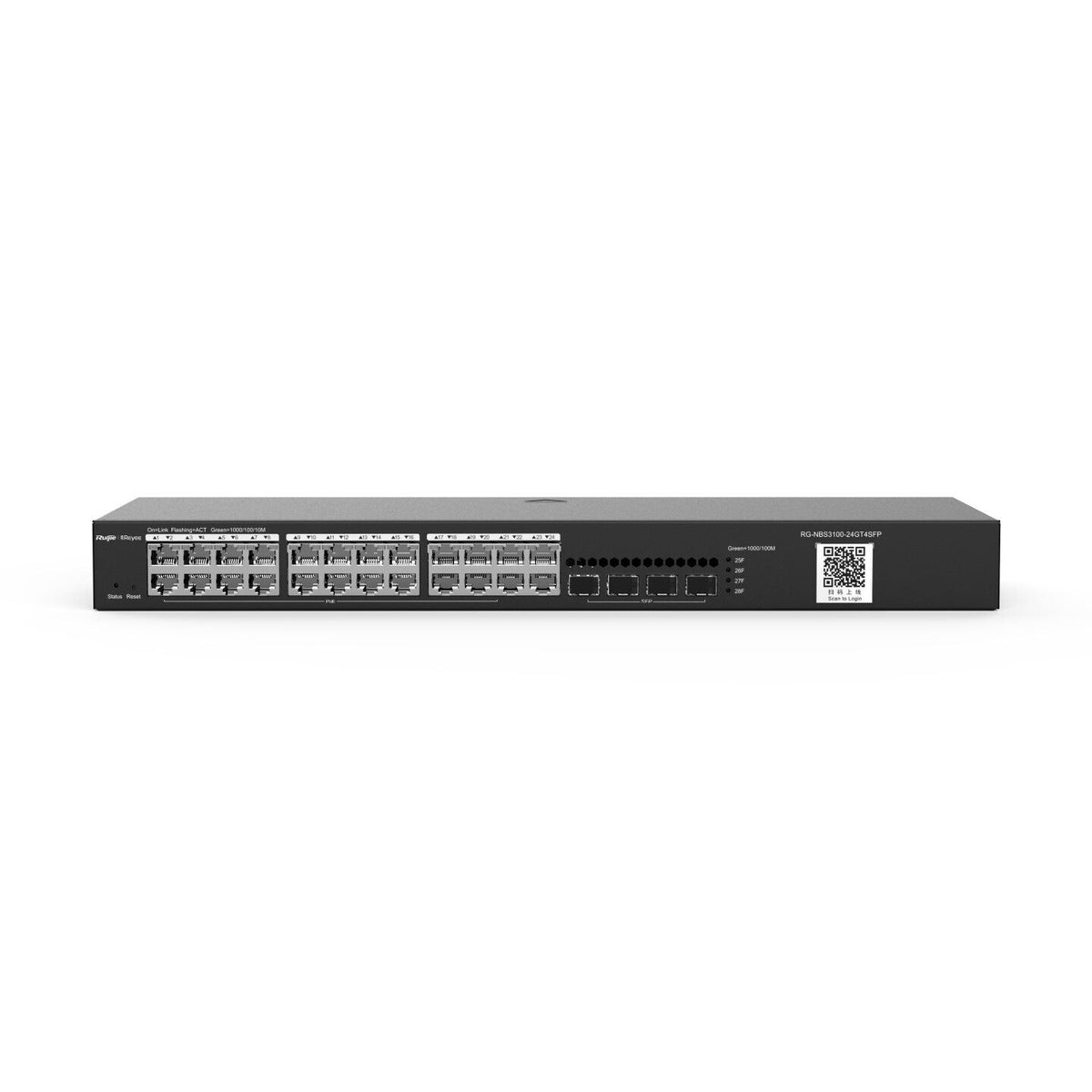

Reyee RG-NBS3100-24GT4SFP(US) Managed Switch with 24 Gigabit ports + 4 SFPs

The Reyee RG-NBS3100-24GT4SFP(US) is a Layer 2 managed switch purpose-built for small-to-medium enterprise edge and access deployments. With 24 Gigabit copper ports and 4 SFP uplink slots, it delivers a non-blocking switching fabric of 56 Gbps and a forwarding rate of 41.67 Mpps to handle demanding, latency-sensitive workloads. The fanless design eliminates mechanical noise and reduces maintenance overhead, making the switch equally at home in open-plan offices, classrooms, and noise-sensitive environments. Support for up to 4,094 VLANs provides granular network segmentation, while a 6 kV port surge rating protects connected equipment in electrically demanding environments. The unit ships in a standard 1U rack form factor ready for immediate integration into existing infrastructure.

Key features & benefits

• 24 Gigabit Copper Ports — Each of the 24 10/100/1000Base-T ports auto-negotiates to the highest supported speed, accommodating legacy and modern endpoints on the same switch without manual configuration.
• 4 SFP Uplink Slots — Dedicated SFP uplink ports free all copper ports for edge devices while providing flexible fiber or copper uplink options to distribution and core layers.
• 56 Gbps Non-Blocking Switching Fabric — A 56 Gbps switching capacity paired with a 41.67 Mpps forwarding rate ensures wire-speed throughput across all ports simultaneously, eliminating internal bottlenecks during peak traffic.
• Fanless Passive Cooling — The completely fanless chassis produces zero acoustic emissions and removes the primary mechanical failure point, contributing to the switch's greater-than-200,000-hour MTBF rating.
• Layer 2 Managed Feature Set — Full Layer 2 management enables VLAN segmentation across up to 4,094 VLANs, giving network administrators precise control over broadcast domains, security zones, and traffic policies.
• 8,000-Entry MAC Address Table — An 8,000-entry MAC address table supports large access-layer deployments with many endpoints, reducing flooding and improving forwarding efficiency as the network scales.
• 6 kV Port Surge Protection — Built-in 6 kV surge protection on each port safeguards both the switch and connected devices against transient voltage events common in industrial or electrically noisy environments.
• Compact 1U Rack Form Factor — At 440 × 165 × 44 mm and 2.4 kg packaged, the switch occupies a single rack unit and imposes minimal weight load, simplifying installation in space-constrained wiring closets and server rooms.
