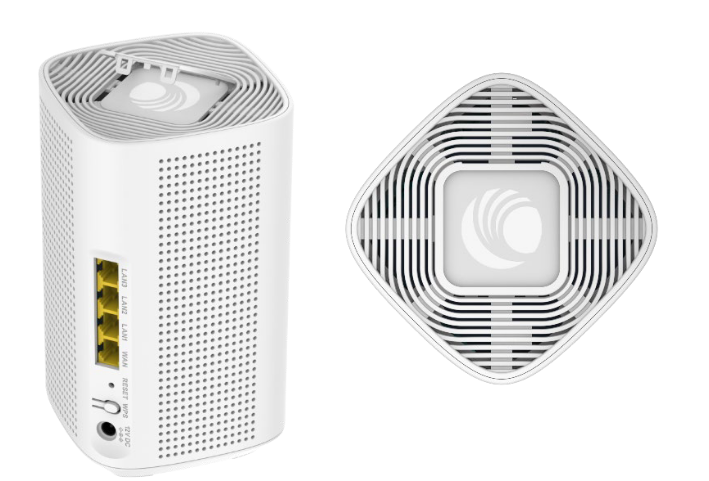

Cambium Networks RV22USB00-US RV22 Wi-Fi 6 Dual-Band 4x4 Mesh Router

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

Cambium Networks RV22USB00-US RV22 Wi-Fi 6 Dual-Band Home Mesh Router

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

The Cambium Networks RV22 Wi-Fi 6 Home Mesh Router delivers dual-band Wi-Fi 6 connectivity with automatic mesh capability, four Gigabit Ethernet ports, and cloud-based management through cnMaestro with subscriber self-service features.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘

Parent Category: Networking

Subcategory: Wireless Access Points

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• Wi-Fi 6 (802.11ax) dual-band home mesh router
• 5 GHz 3x3:2 and 2.4 GHz 2x2:2 radio architecture
• Automatic mesh discovery and setup
• Supports mesh star, mesh linear, and wired mesh modes
• Four Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports
• Auto RF management with automatic channel selection
• Frequency coordination with compatible Cambium FWA subscriber modules
• Supports up to 64 wireless clients and 2 SSIDs
• Subscriber App supports guest Wi-Fi, speed test, Family Time, web content filtering, Optimize Wi-Fi, and multiple site management
• Supports band steering and 802.11r fast roaming
• Managed through cnMaestro Essentials or cnMaestro X with appropriate RV22 device subscription

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Brand: Cambium Networks
• Model: RV22
• Part Number: RV22USB00-US
• Wireless Standard: IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac Wave 2
• Frequency Bands:
• 5 GHz: 3x3:2
• 2.4 GHz: 2x2:2
• Maximum PHY Rates:
• 5 GHz: Up to 2.4 Gbps
• 2.4 GHz: Up to 600 Mbps
• Ethernet Ports: 4 × Gigabit Ethernet (10/100/1000 Mbps)
• Antenna Type: Internal, vertically polarized
• Antenna Gain:
• Up to 5 dBi (5 GHz)
• Up to 5 dBi (2.4 GHz)
• Transmit Power:
• 25.7 dBm (5 GHz)
• 24 dBm (2.4 GHz)
• WLAN Security: Open, WPA2-PSK, 802.11w PMF
• Network Services: NAT firewall/router, DHCP server, DNS server
• Power Input: 12 VDC, 1.2 A
• Power Connector: 2.5 mm × 5.5 mm center-positive
• Dimensions: 100 × 100 × 175 mm
• Weight: 400 g
• Operating Temperature: 0°C to +40°C
• Storage Temperature: 0°C to +70°C
• Humidity: 10% to 90% RH, non-condensing
• Certifications: FCC, CE, AU, NZ, UK
