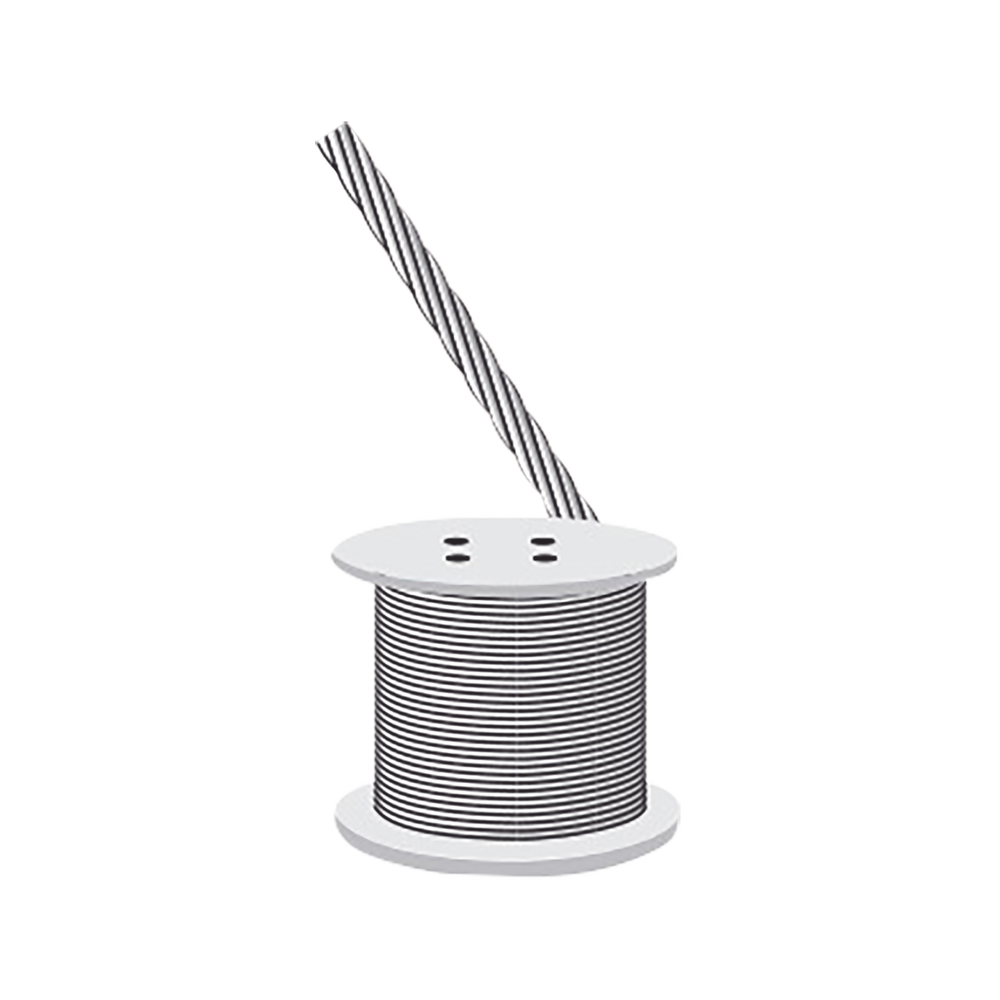

Syscom S-RET-318 Guy-wire, Resistance 1,330 lb, Diameter 1/8"
Product identifier
SKU
S-RET-318
$11.09
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Features:
• 7 braided wires
• Diameter: 1/8”
• Tensile strength: 1402.14 lbs
• Approximate weight : 0.1 lb/m
• Immediate availability
• Galvanized for high resistance against corrosion (Class A)
| Wire (â…›") diameter | Min. tensile strength | Min. stress with 1% extension | Min. extension percentage when L=250 | Min. No. of 3600 twist | |
| mm | Mpa | Mpa | % | ||
| GENERAL | 1.24~2.25 | 1340 | 1170 | 3.0 | 16 |
| HIGH | 1.24~2.25 | 1450 | 1310 | 2.5 | 16 |
| Very high | 1.24~2.25 | 1620 | 1450 | 2.0 | 14 |
| No. of Wires | Steel wire diam. | Dia. | Section area | Nominal tensile strength of Gauge steel wire (Mpa) 1175 1270 1370 1470 1570 Breaking strength of standard | Approximate Weight of standard |
| mm | mm | mm² | kN ≥ | kg/100M | |
| 1.60 | 4.8 | 14.07 | 16.53 17.87 19.28 20.68 22.09 | 11.17 | |
| 1.80 | 5.4 | 17.81 | 20.93 22.62 24.40 26.18 27.96 | 14.14 | |
| 2.00 | 6.0 | 21.99 | 25.84 27.93 30.13 32.32 34.52 | 17.46 | |
| 2.20 | 6.6 | 26.60 | 31.26 33.78 36.44 39.10 41.76 | 22.77 | |
| 2.30 | 6.9 | 26.08 | 34.17 36.93 39.84 42.75 45.66 | 23.09 | |
| 1 X 7 | 2.60 | 7.8 | 37.17 | 43.60 47.20 50.92 54.63 58.30 | 29.51 |
| 2.90 | 8.7 | 46.24 | 54.33 58.72 63.36 67.97 72.60 | 36.71 | |
| 3.00 | 9.0 | 49.48 | 58.14 62.84 67.79 72.74 77.68 | 36.71 | |
| 3.20 | 9.6 | 56.30 | 66.15 71.50 77.13 82.76 88.39 | 44.70 | |
| 3.50 | 10.5 | 67.35 | 79.14 85.85 92.27 99.00 105.74 | 53.48 | |
| 3.80 | 11.4 | 79.39 | 93.28 100.82 108.76 116.70 124.64 | 63.04 |
Key Features
- High 1330 lb Working Load Capacity for Heavy-Duty Applications
- 1400 lb Minimum Breaking Strength for Maximum Safety Margin
- Class A Galvanized Coating for Superior Corrosion Resistance
- 1x7 Strand Construction for Flexibility and Durability
- Lightweight 0.31 lb per Foot for Easy Handling and Installation
- Ideal for Marine Environments and Heavy Construction Projects
