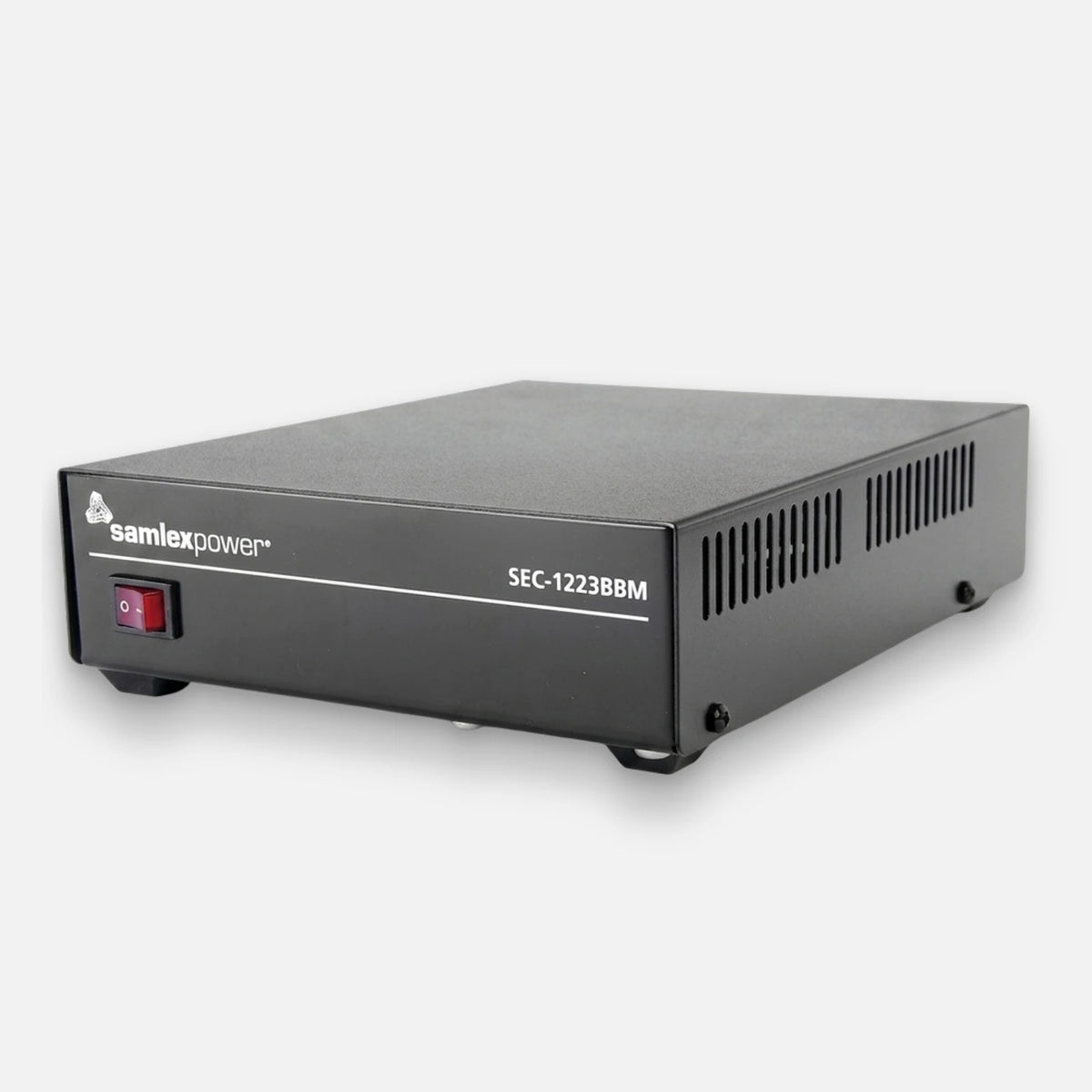

Samlex SEC-1223BBM Desktop Switching Power Supply 13.8 Vdc Circuit for Backup
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
12V nominal DC uninterruptible power supply designed for continuous operation with external lead acid battery backup support. Features switch mode technology, multiple protection systems, and temperature-controlled cooling.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking — Networking Accessories
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Advanced switch mode technology
• 12V nominal DC uninterruptible power source (DC UPS)
• Supports external 12V lead acid battery backup
• High-efficiency compact design
• Portable installation profile
• Protection against short circuit, overload, over-voltage, and over-temperature conditions
• Temperature-controlled cooling fan operation
• UL listed for Information Technology Equipment Power Supply applications
• FCC Part 15(B) Class B compliant for EMI limits
• Built-in battery backup circuit
• Designed for continuous DC power delivery applications
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Input Voltage: 120 VAC Nominal (+6% / -10%), 60 Hz
• Output Voltage (Load Terminals): 13.8 VDC
• Output Voltage (Battery Terminals): 13.8 VDC
• Supported External Battery Voltage: 12V
• Supported External Battery Capacity: 40Ah to 100Ah
• Battery Type: Lead Acid
• Cooling System: Forced-air temperature-controlled fan
• Fan Activation Temperature: ≥ 158°F (70°C) internal hot spot
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Dimensions (W × D × H): 7.28 × 9.47 × 2.40 in (185 × 240.5 × 61 mm)
• Weight: 3.4 lb (1.6 kg)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Backup DC power systems
• Communications and networking equipment backup power
• Security and surveillance power continuity applications
• Information technology equipment power support
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
