SAMLEX

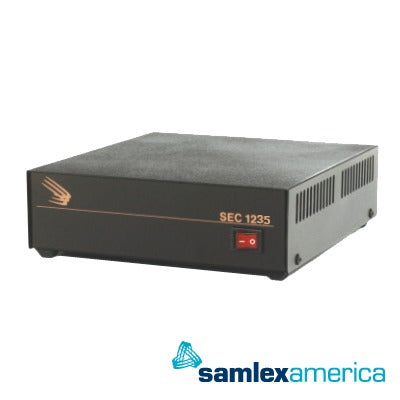

Samlex SEC-1235 Desktop Switched-mode Power Supply, 30 Amps
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
30 Amp Switching Power Supply
SEC-1235
This high efficiency UL-60950-1 approved AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 30 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz possible models also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, over-temperature and over voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- Input voltage can be set at 120VAC or 240VAC (internal jumper)
- UL listed to both USA & Canadian safety standards
Input: 100-130 VAC
Output: 13.8 VDC
Amps: 30 Amps
Fuse: 8 Amps
Weight: 3.4 (lbs) / 1.54 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in) / 185 x 208 x 61 (mm)
Key Features
- Adjustable Output Voltage From 11.5 to 15.5 VDC
- High 85% Efficiency With Advanced Switching Technology
- Low 50 mV Peak-to-Peak Ripple for Clean Power Delivery
- Overload, Short Circuit, and Overheating Protection
- Temperature-Controlled Fan for Efficient Cooling Operation
- Compact Design Measuring 8 x 7.3 x 2.5 Inches
