SAMLEX

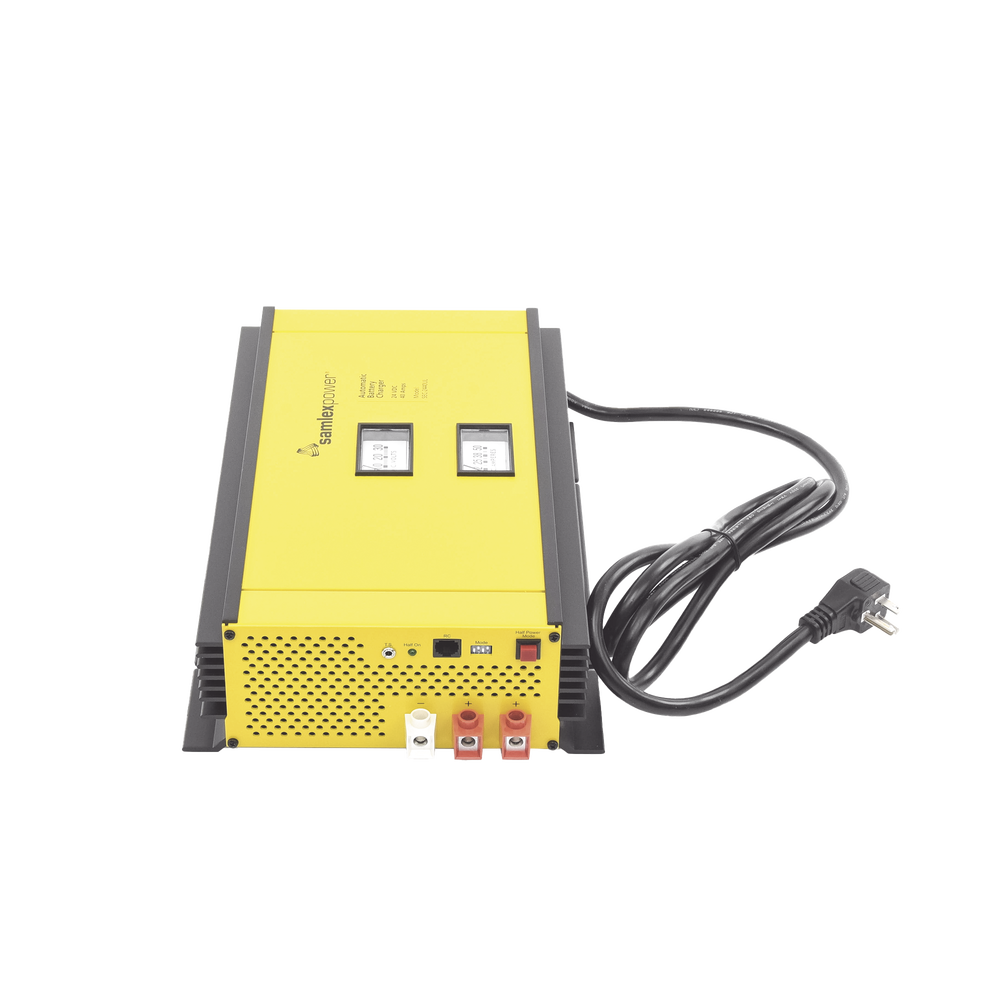

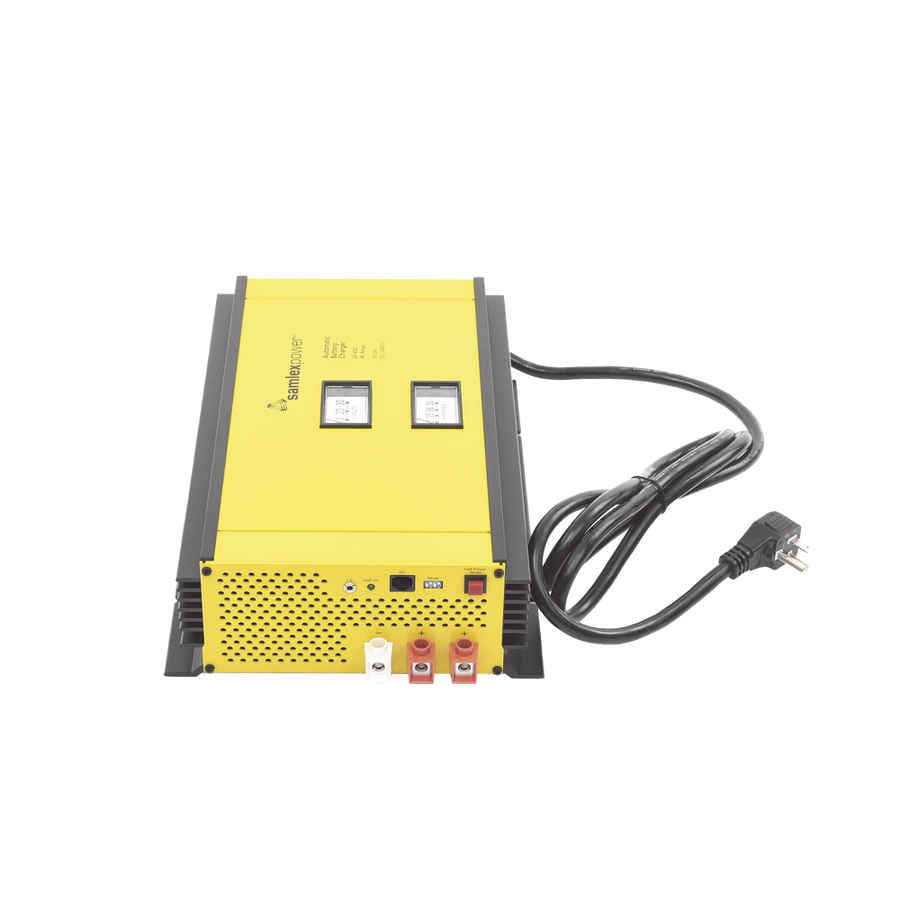

Samlex SEC-2440-UL Battery Charger for Lead Acid Batteries 24 Volts, 40A
Product identifier
SKU
SEC-2440-UL
$850.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Model: SEC-2440UL
This advanced fully automatic three-stage 40 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.
- Input: 110/220 Vac
- Output: 24 Vdc
- 40A continuous
- 3 terminals
- Charges 2 batteries simultaneously
Key Features
- High Efficiency Design With Lightweight Construction
- Fully Automatic Connect-and-Forget Operation
- Built-in Ammeter for Precise Current Monitoring
- Dual Mode: Power Supply and DC Backup Operation
- Protection Against Short Circuit and Reverse Polarity
- Dual Voltage Input 120/220 VAC for Worldwide Use
