SAMLEX

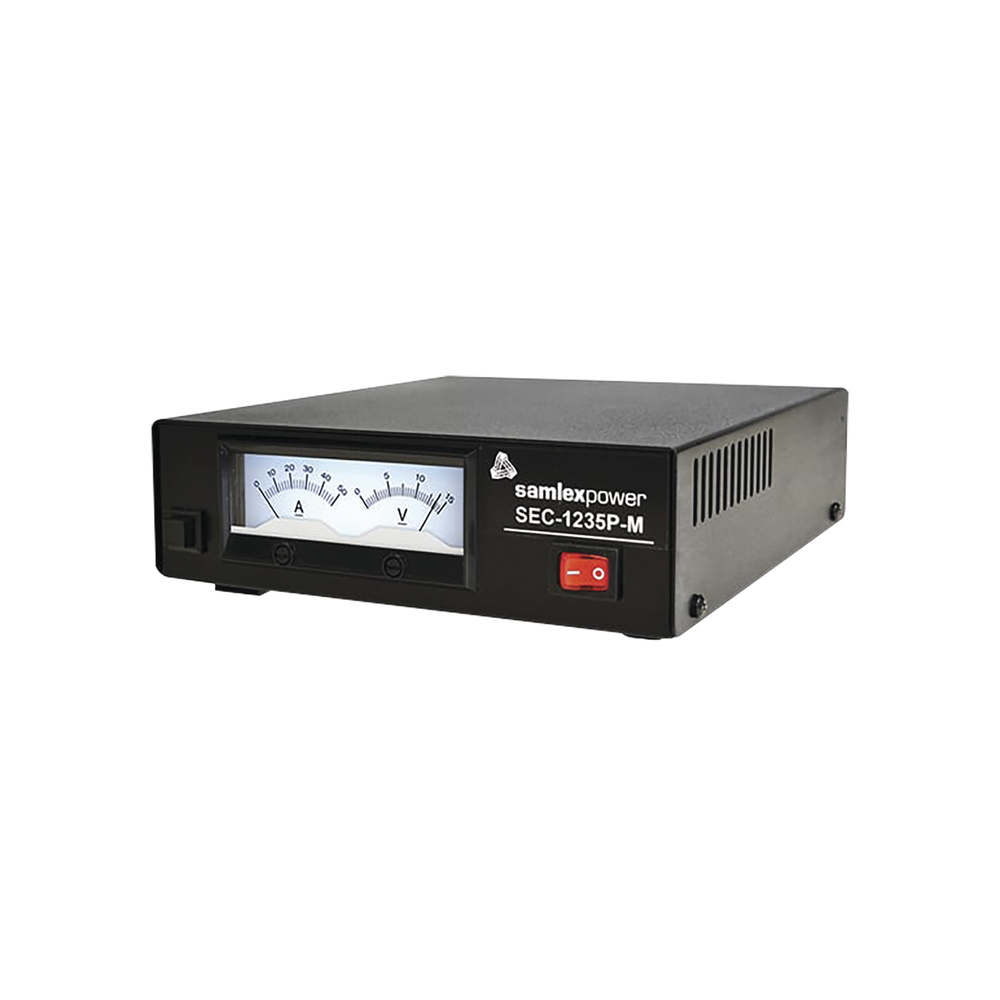

Samlex SEC1235PM 30 Amp Switching Power Supply with Backlit Meter 120/220 VCA
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Description:
The new technologically advanced SEC-1235P-M desktop power supplies are lighter, quieter, power factor corrected, and have a universal AC input of 100 to 240 Volts, 50/60 Hz. These premium, high-efficiency power supplies are UL safety listed and CE certified to the newly released IEC 62368-1 safety standard globally. These advanced switch-mode DC power supplies sport the newly designed backlit dual analog meters and are designed specifically for use with land mobile radio. The power supplies produce clean, reliable power, and new circuit innovations minimize output voltage ripple and RFI. The AC-DC power supply conforms to FCC Part 15(B), class B digital device, and Efficiency Level VI.
Features.
- Universal Input: 100 to 240 VAC, 50/60 Hz
- Power Factor Corrected
- Backlit dual analog meters
- Complies with Minimum Energy Performance Standard (MEPS) for external power supplies
- Efficiency Level VI
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- UL listed to both USA & Canadian safety standards, CE certified for use all
Specifications:
- Input: 100-240 VAC
- Output: 13.8 VDC
- Amps: 30 Amps
- Weight: 3.7 (lbs)
- Weight: 1.67 (kg)
- Dimensions: 7.3 x 8.2 x 2.4 (in)
- Dimensions: 18.5 x 20.8 x 6.0 (cm)
- Safety: UL, FCC, CE
Key Features
- Universal 100-240 VAC Input With 50/60 Hz Frequency Support
- Integrated Power Factor Correction for Enhanced Efficiency
- Dual Backlit Analog Meters for Clear Voltage and Current Monitoring
- Advanced Switching Technology for Clean and Reliable DC Power
- UL Listed for US and Canada Safety Standards Compliance
- FCC Part 15(b) Class B Digital Device Certified Operation
