EPCOM

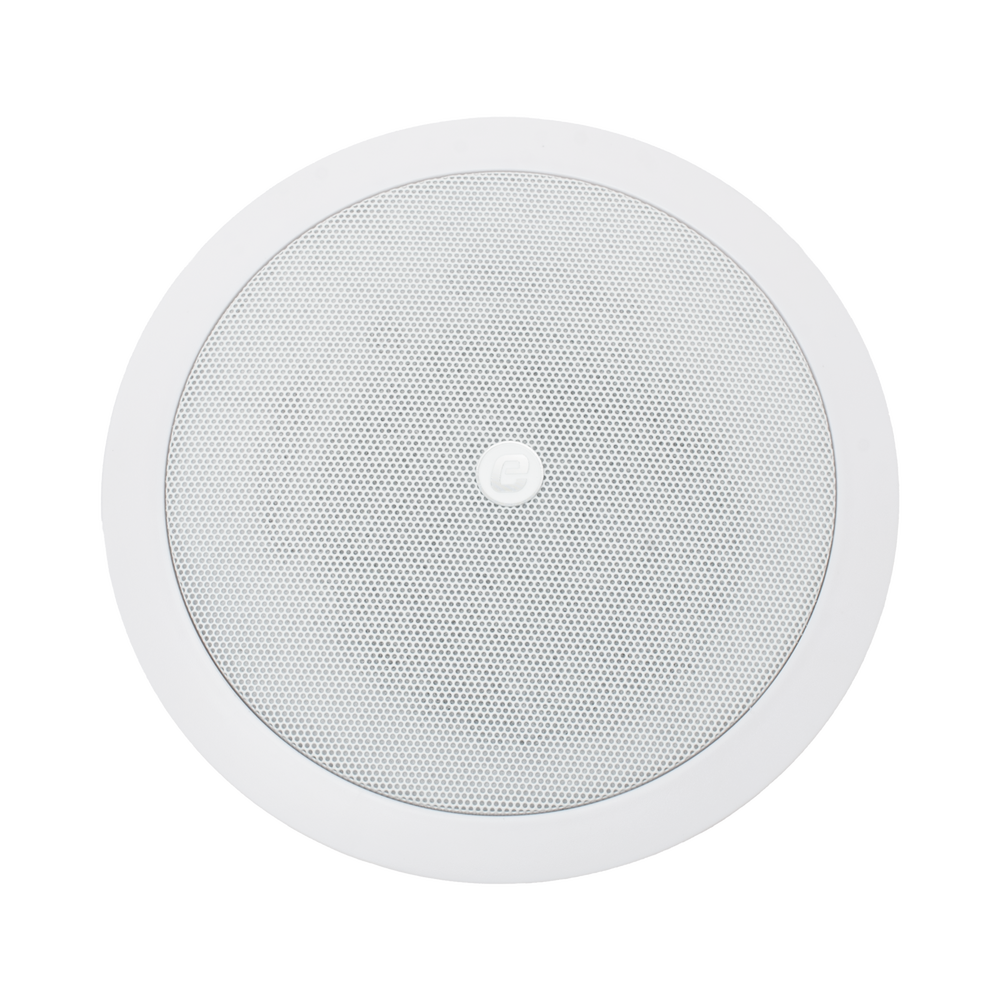

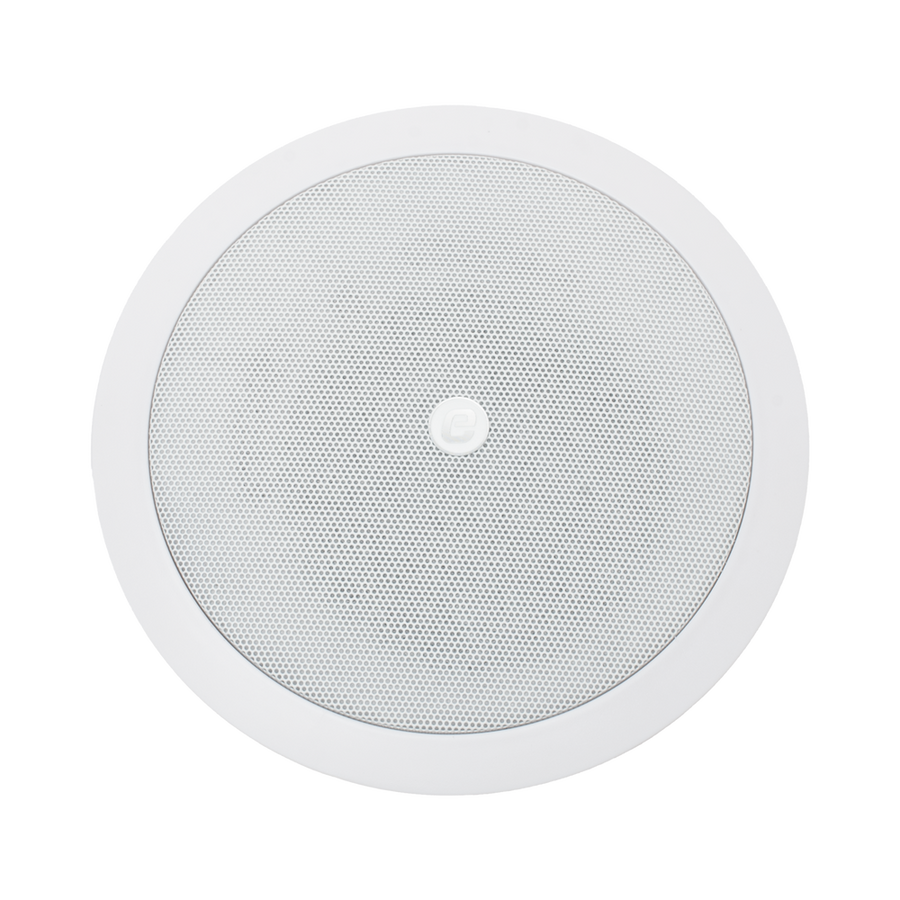

Epcom SF-206P 5"+1.5" Coaxial Ceiling Speaker 30W 70/100V
Product identifier
SKU
SF-206P
$78.85
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
5"+1.5" Coaxial Ceiling Speaker / 3.75-30w | 70/100v | 8ohm | ABS Baffle & Back Cover / Metal Grille
SF-206P
The SF-206P is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.
Features
- Built-in 100v/70v transformer
- In-ceiling type loudspeaker
- 5 ” +1.5 ” coaxial speaker unit
- Power output 3.75W, 7.5W, 15W & 30 W @100V
- Built-in crossover for hi-fi use
- Line input: 100V, 70V or 8 Ω
- Metal grille, ABS baffle & ABS back cover
- Paint in white color
- Secure flush mount installation
Audio Features
- Built-in 100v/70v transformer
- Support both high impedance input and low impedance input use
- Wide frequency response 100-18 kHz
- Power output from 3.75W, 7.5W, 15W & 3 0W
- High Response
- Power taps are convenient for switching the input from 100V to 70V or 8 Ω
Applications
It is ideal for industrial and commercial applications in hotels, schools, offices, and factories where background music and paging are needed.
Key Features
- Built-In 70V/100V Transformer Reduces Line Loss Over Long Distances
- Coaxial Design With 5" Woofer and 1.5" Tweeter for High Fidelity
- Multiple Power Taps: 3.75W, 7.5W, 15W, and 30W at 100V
- Flush Mount Installation With Secure White Metal Grille
- Built-In Crossover for Clear Audio Separation and Performance
- Durable ABS Construction for Commercial and Industrial Environments
