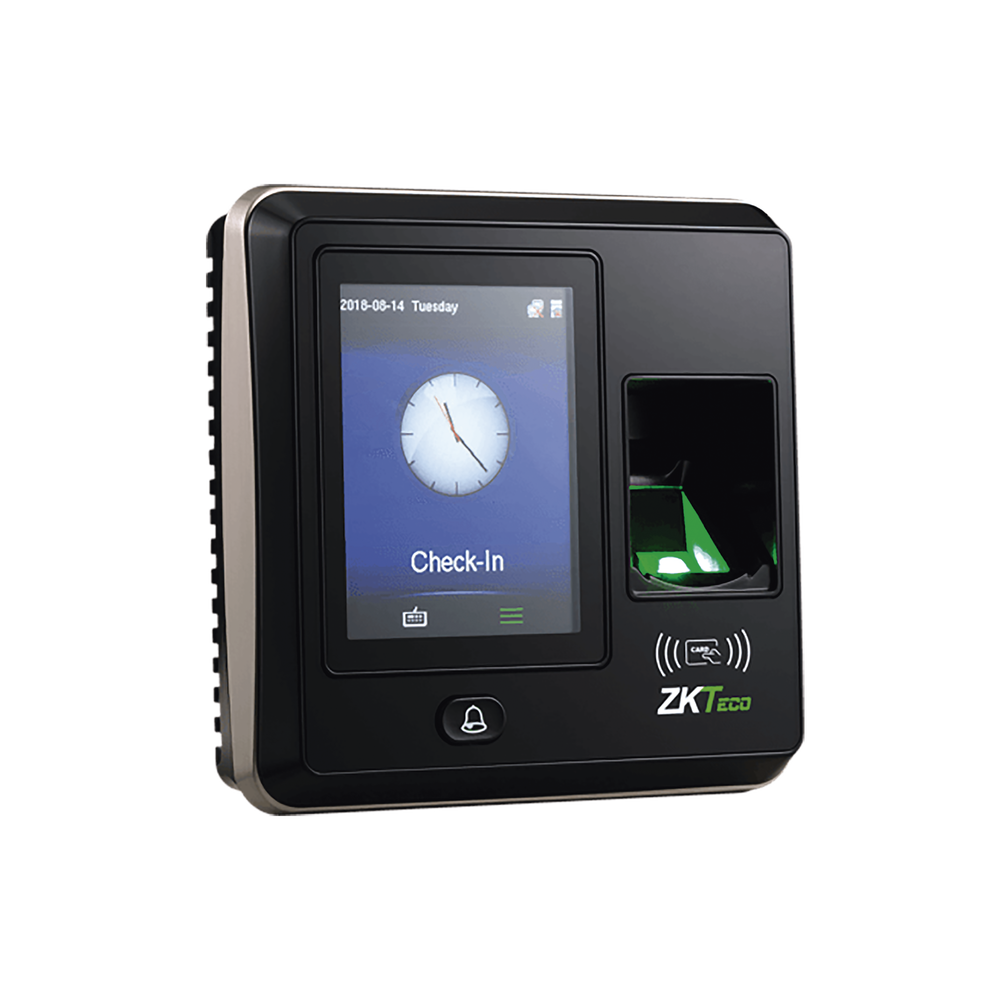

Zkteco SF-300 IP Fingerprint Access Control Terminal 1500 Users Wiegand
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The SF300 is an IP based fingerprint terminal, which operates in both network mode and standalone mode. it can connect with ZKAccess3.5 software for access control and time attendance management.
Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader, Additionally, Wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.
Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.
Compatible Softwares:
(free)
The software can manage Access control and Time & Attendance at the same time, get a basic report for Check-In and Check-Out (For Time & Attendance Terminals up to 1000 employees).
| LCD | 2.8 inch resistive touch screen |
| Fingerprint Sensor | ZK Optical Sensor (500DPI) |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Fingerprint Capacity | 1,500 |
| Records Capacity | 80,000 |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Door Bell |
| Wiegand Signal | Wiegand input & output |
| Aux. Input | 1ea for linkage function |
| Power Supply | DC 12V/3A |
| Operating Temperature | 32°~113°F (0 ~ 45°C ) |
| Operating Humidity | 20 ~ 80% |
| Dimension(L x W x H) | 4.1" x 4.1" x 1.2" (105 x 105 x 32mm) |
Key Features
- Optical Anti-Scratch Fingerprint Sensor for Durable Performance
- Compact Design Measuring 4.1 x 4.1 x 1.3 Inches for Space Saving
- 12V DC Power Input With 3A Current Rating for Reliable Operation
- Operating Temperature Range From 32°F to 113°F for Various Environments
- Includes Free ZKAccess 3.5 Management Software for Easy Administration
- Relay Output With NC/NO/COM Contacts for Access Control Integration
