SFIRE

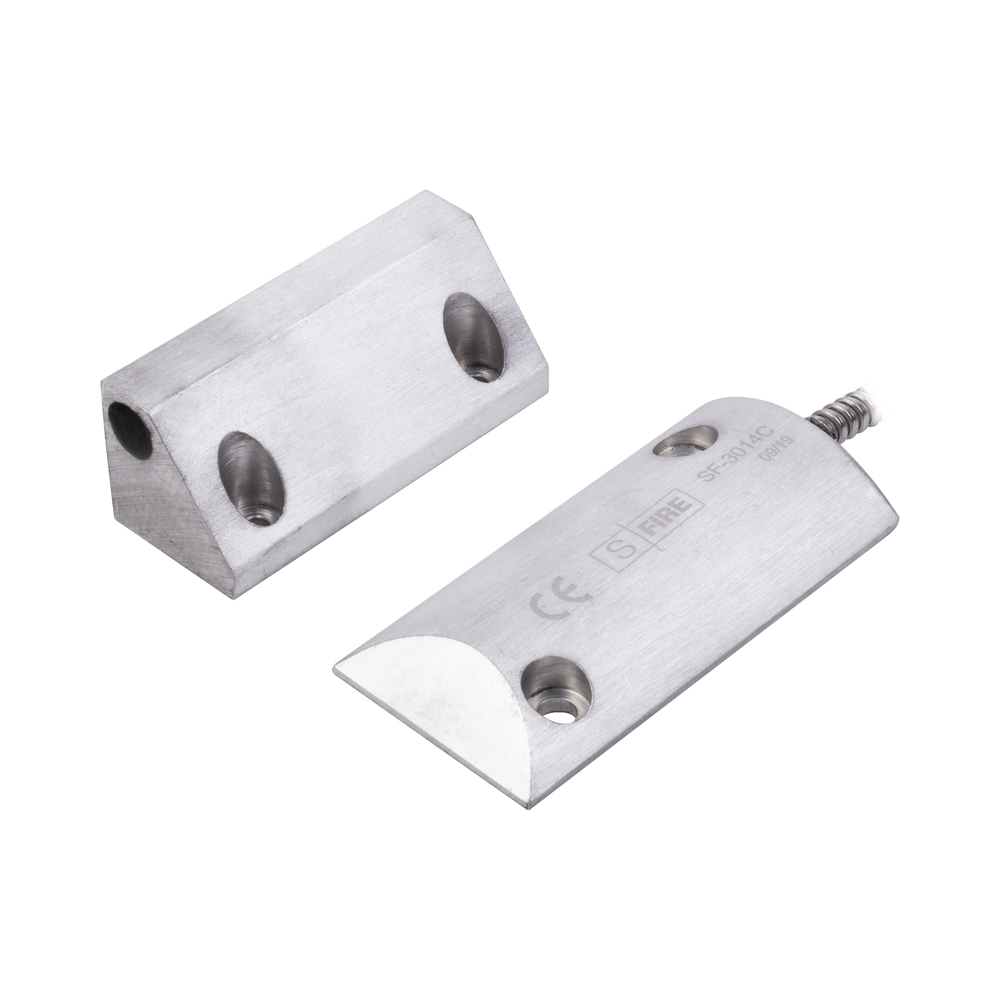

Sfire SF-3014-C Dual NC/NO Magnetic Contact Switch 12VDC 0.5A
Product identifier
SKU
SF-3014-C
$33.91
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
-
Dual reed Normal Open/Normal Close
-
55 cm of 22 AWG wire.
-
Space between mounting holes: 34.64" (88 cm).
-
Space between magnet holes: 20" (50.8 cm).
-
Switch dimensions: 35 x 10.03 x 4.52" (88.9 x 25.5 x 11.5 mm).
-
Magnet dimensions: 28.81 x 11.81 x 11.81 (73.2 x 30 x 30 mm).
Key Features
- Dual NC/NO Output for Maximum Installation Versatility
- 2.5 Inch Detection Gap for Precise Magnetic Sensing
- 22 Gauge Shielded Cable for Enhanced Signal Integrity
- Industrial-Grade Aluminum Housing for Maximum Durability
- SPDT Contact Rating 12VDC at 0.5A Maximum Current
- Compact Design 3.5 x 1 x 0.45 Inches for Space-Saving Installation
