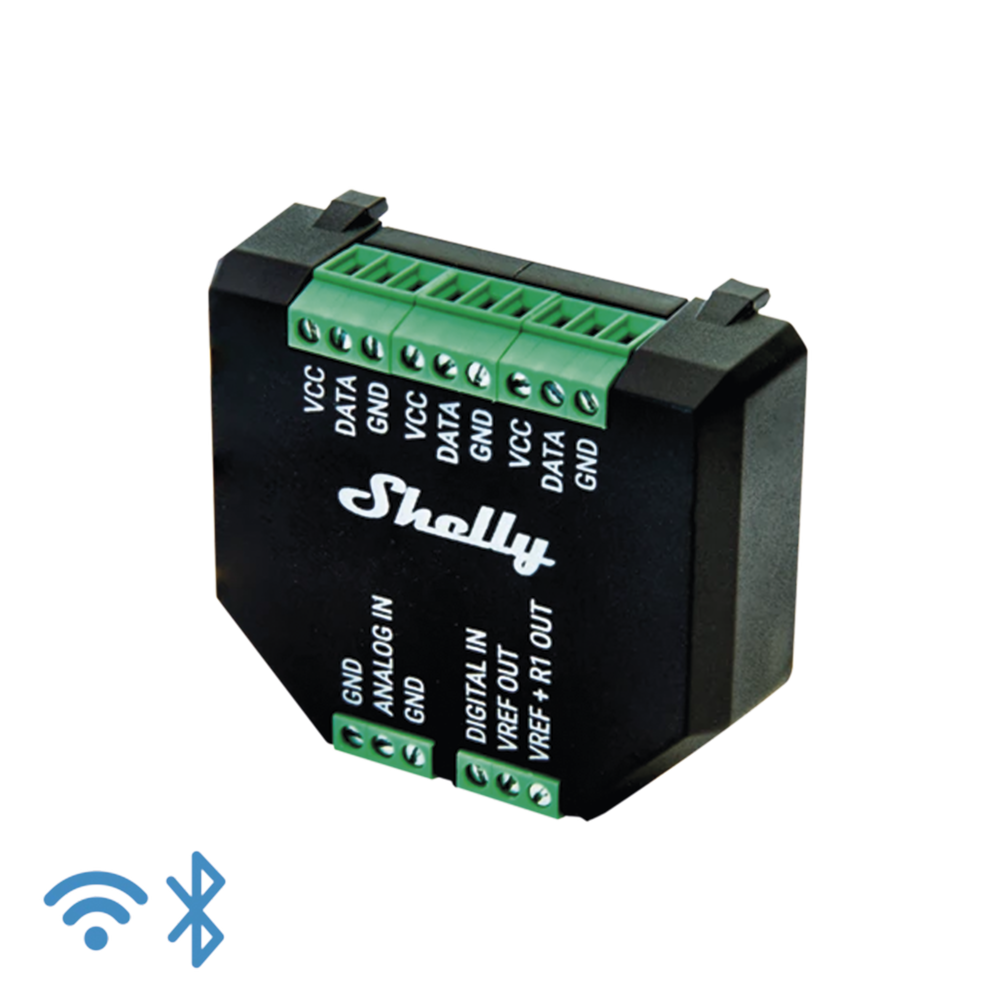

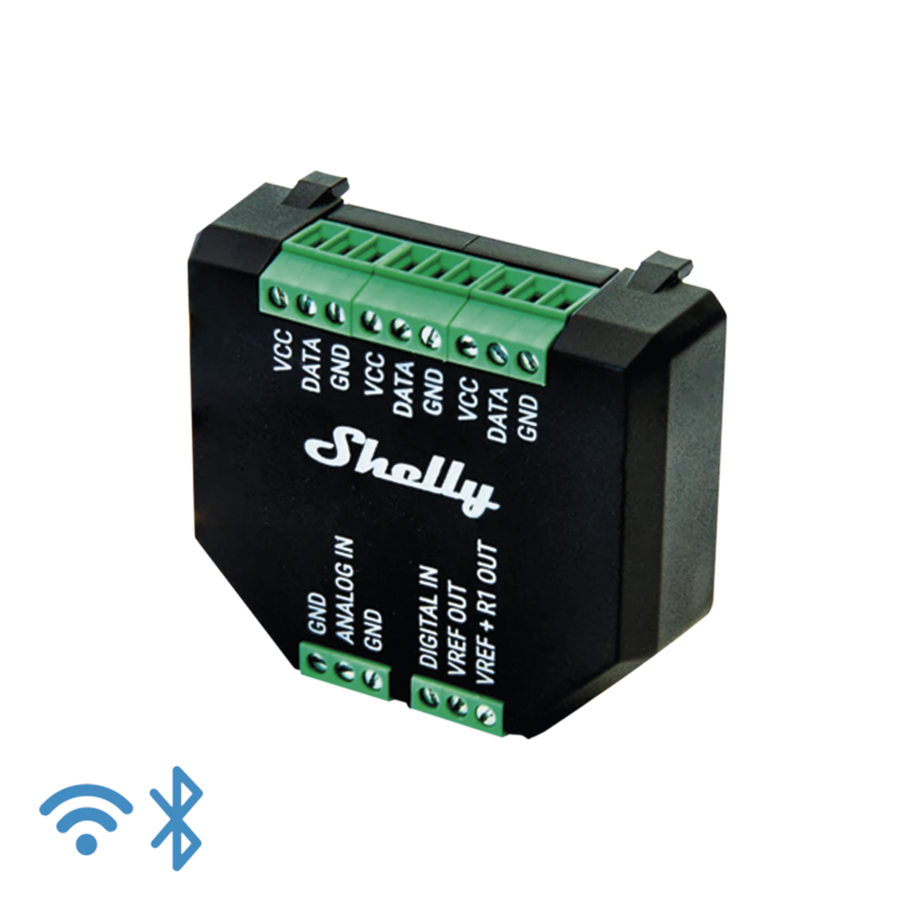

Shelly SHELLY PLUS ADD-ON Sensor Interface 1 Analog 1 Digital
Product identifier
SKU
SHELLY PLUS ADD-ON
$24.41
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Description:
Shelly Plus Add-on (the Device) is a galvanically isolated sensor interface to the Shelly Plus devices.
Applications:
- Residential
- MDU (Multi-Dwelling Units - apartments, condominiums, hotels, etc.)
- Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
- Agricultural (greenhouses, hotbeds, nurseries, ranches, etc. )
- Government/Municipal
- University/college
Main Features:
Inputs
- 1 analog input: ANALOG IN
- 1 digital input: DIGITAL IN
Output
- 1 reference voltage output: VREF OUT
- 1 reference voltage through a pull-up resistor output: VREF + R1 OUT
- 2 ground terminals: GND*
1-Wire interface
- 3 sensor power supply outputs (connected to the same PCB track): VCC
- 3 sensor data terminals (connected to the same PCB track): DATA
- 3 ground terminals: GND*
- Connected to the same PCB ground layer.
Physical and Electrical Characteristics:
- Power supply voltage DC: 3.3V (from Shelly Plus device)
- Size (HxWxD): 1.46 x 1.65 x 0.59 ±0.02 in / 37x42x15 ±0.5 mm
- Weigh:3.70 oz / 105 g
- Ambient temperature: -20 °C to 40 °C
- Humidity: 30 % to 70 % RH
- Shell material: plastic
Key Features
- Expands Shelly Plus Relay Functionality With Additional Inputs
- DIN Rail Mounting for Professional Electrical Installations
- Wireless Control via WiFi and Bluetooth Connectivity
- Compatible With Shelly Plus Relay Series Devices
- Adds Extra Digital Inputs for Sensor Integration
- Seamless Smart Home Automation System Expansion
