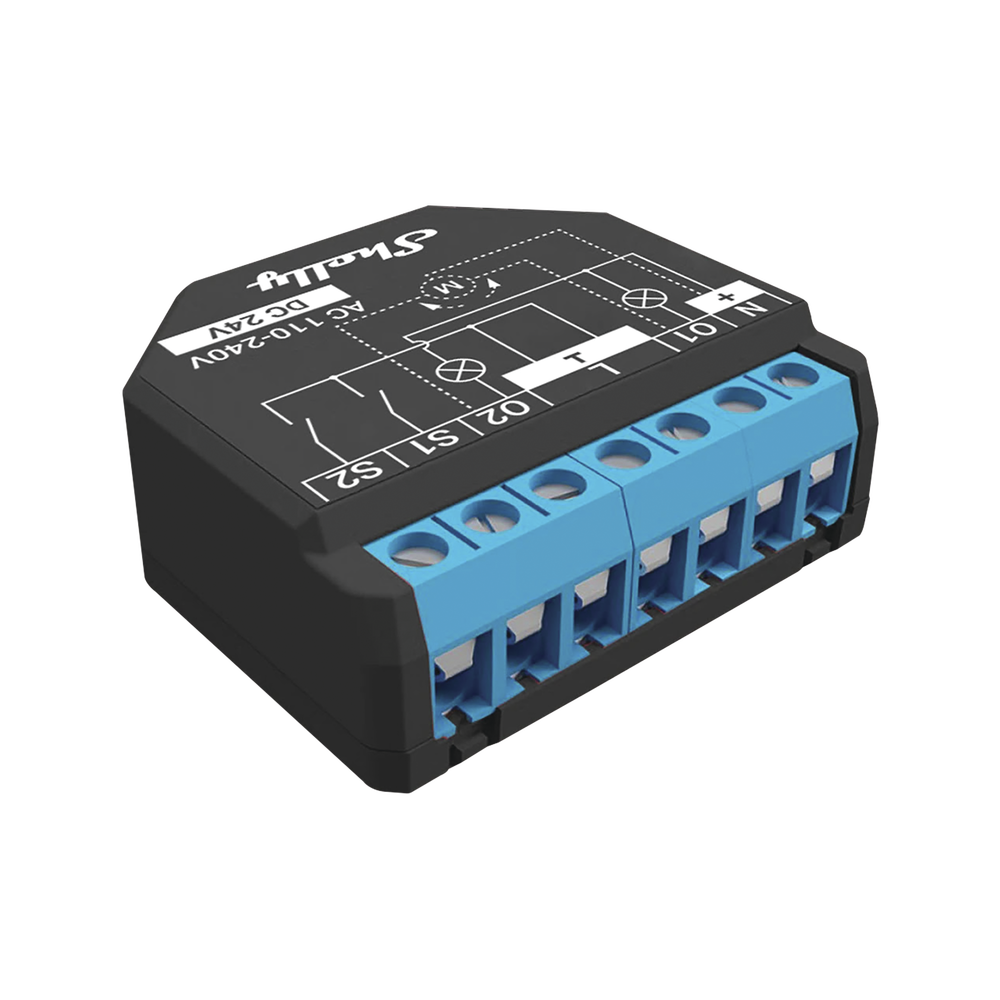

Shelly SHELLYPLUS2PM 2-Channel Smart Relay WiFi Power Meter

• 2 channels on the same phase
• Power metering on each channel
• Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
• Scripting, schedules, and webhooks
• Designed to fit in most standard electrical boxes and switches
• Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

• Power supply AC: 110-240V ±10%, 50/60Hz
• Power supply DC: 24 V ±10%
• Channels: 2
• Power consumption: < 1.4 W
• Dimensions: 1.65" x 1.5" x 0.67" (42 x 38 x 17 mm)
• Mounting: Wall console
• Shell material: Plastic
• Operating temperature: -20 °C to 40 °C / -5 °F to 105 °F

SENSORS, METERS

• Temperature sensor: Yes
• Voltmeter (AC): Yes
• Ammeter (AC): Yes

RADIO

• RF band: 2400 - 2495 MHz
• Max. RF power: <20 dBm
• Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depending on local conditions)
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depending on local conditions)

FIRMWARE CAPABILITIES

• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• Scripting: mJS
• MQTT: Yes
• CoAP: No
