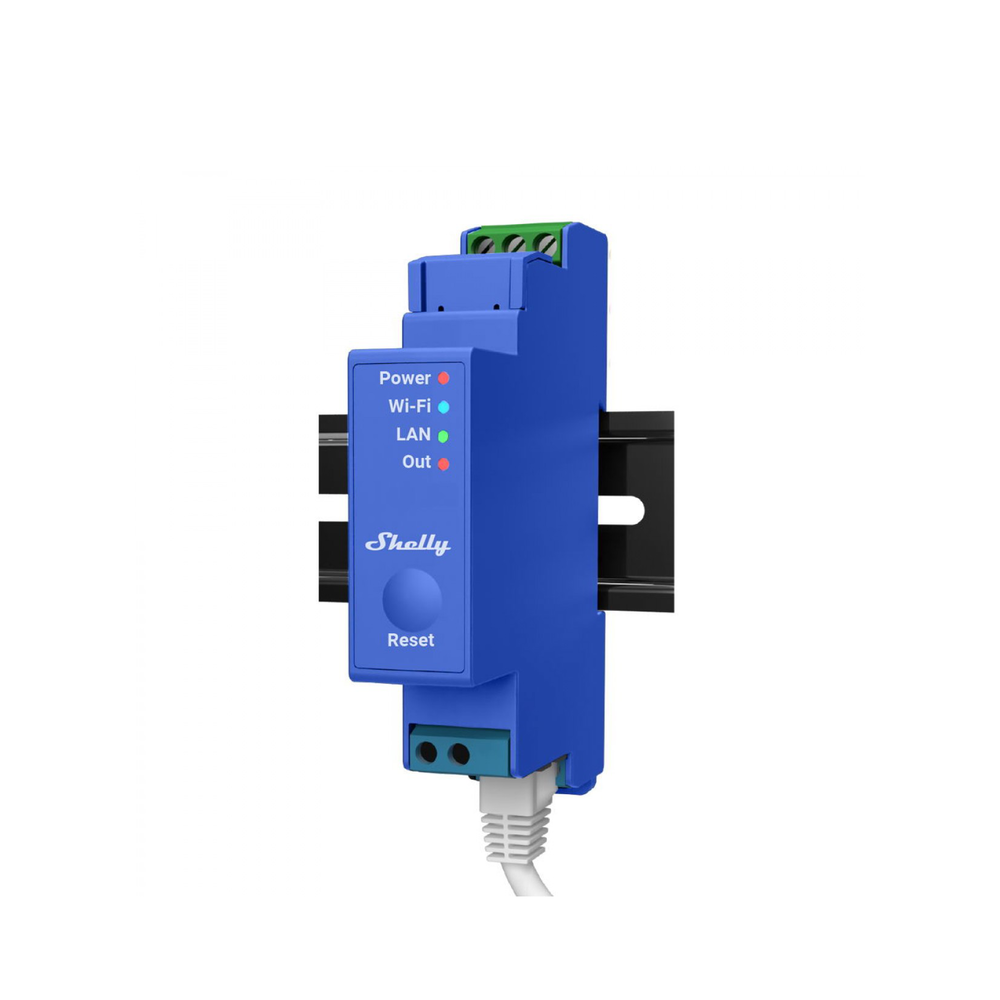

Shelly SHELLYPRO1 1-Channel WiFi Relay 16A DIN Rail Mount
Product identifier
SKU
SHELLYPRO1
$67.36
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Main Features:
- No HUB required
- Channels: 1
- Dry contact
- Connectivity: Wifi 2.4GHz, Bluetooth and Ethernet
- DOM rail mounting
- Temperature protection
- Overcharge protection
Physical and Electrical Features:
- AC power supply: 110-230V, 50/60Hz
- Max. load: 16A
- Operating temperature: -20°C a+40°C
- Current consumption: <3W
- Dimensions: 68.5mm × 18.5mm × 89.5mm
Highlights:
SHELLYPRO1 is a 1-channel device with Wi-Fi, LAN and Bluetooth, suitable for home automation and installation of remote control. Mountable on a DIN rail inside a switch box Enhanced security features and compatible with the most widely used home automation platforms.
INSTALL
Install your ShellyPRO1 relay
INSTALL
Download and install the free mobile application from Google Play or Apple® App Store.
DOWNLOAD
Download our user guide and follow the instructions.
Key Features
- Integrated WiFi, LAN, and Bluetooth Connectivity for Multiple Control Options
- DIN Rail Mount for Easy Installation in Electrical Panels
- Enhanced Temperature and Overload Protection for Safety
- AC Power 120-230V, 50/60Hz for Reliable Operation
- Operating Temperature Range -4°F to 104°F for Versatile Environments
- Smart Home Compatible With Google Assistant and Alexa Voice Control
