SHELLY

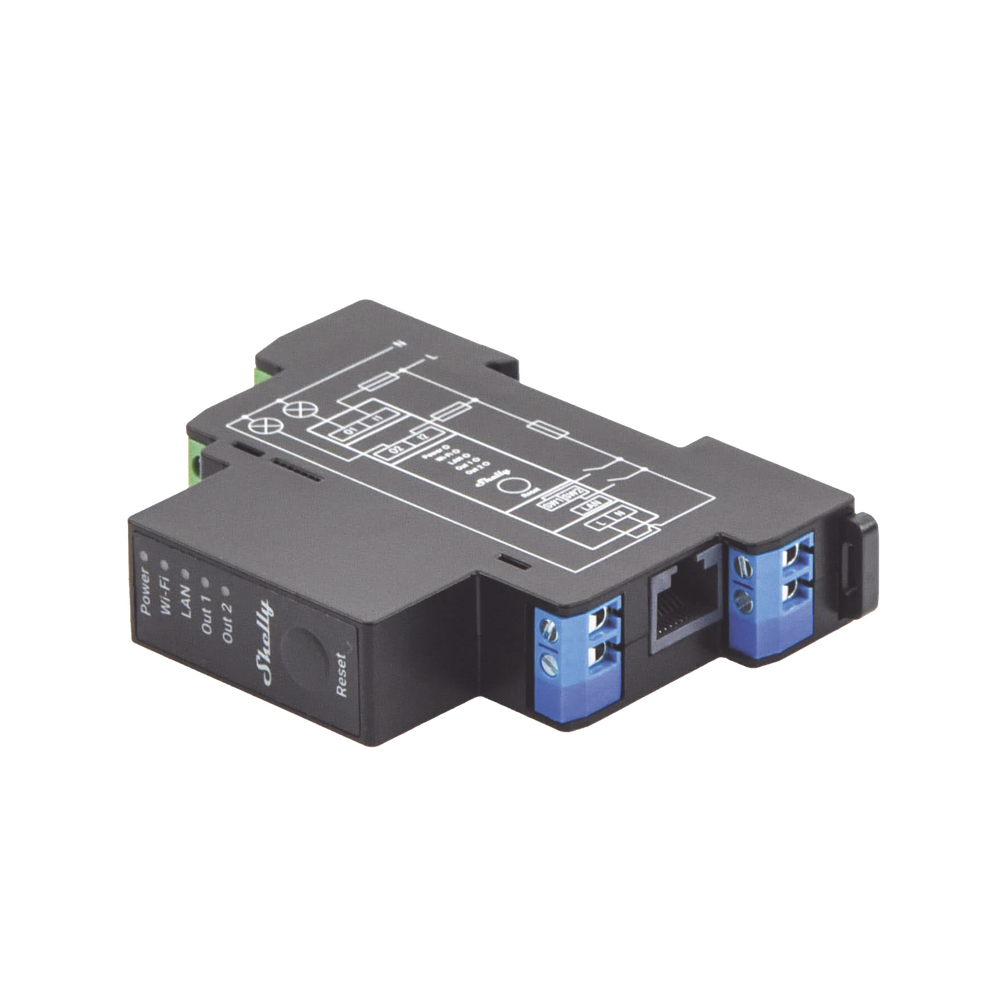

Shelly SHELLYPRO2PM 2-Channel Wi-Fi Relay 16A DIN Rail Smart Switch
Product identifier
SKU
SHELLYPRO2PM
$87.09
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Key Features:
- No HUB required
- Consumption measurement (only in AC)
- Temperature protection
- Overload protection
- Channels: 2
- DIN rail mountable
- Connectivity: 2.4 GHz Wi-Fi, Bluetooth, and Ethernet
Physical and Electrical Characteristics:
- AC Power Supply: 110 - 230V, 50/60 Hz
- DC Power Supply: 12V
- Maximum Load: 16A per channel, 25A in total
- Operating Temperature: -20°C to +40°C
- Power Consumption: <4W
- Dimensions: 2.69" x 0.73" x 3.52" (68.5mm x 18.5mm x 89.5mm)
Highlighted Features:
SHELLYPRO2PM is a 2-channel device with Wi-Fi, LAN, and Bluetooth connection, suitable for home automation and installations with remote control. Mountable on a DIN rail inside a switch box. Enhanced security features and compatible with the most widely used home automation platforms for controlling lights, blinds, garage doors, gates, awnings, curtains, pool covers, and bidirectional AC motors.
INSTALL
Install your ShellyPRO2PM relay
INSTALL
Download and install the free mobile app from Google Play or Apple® App Store.
DOWNLOAD
Download the user guide and follow the instructions.
Key Features
- Real-Time AC Power Consumption Monitoring for Energy Management
- Dual Connectivity With WiFi 2.4 GHz and Ethernet Port
- Built-in Bluetooth for Easy Setup and Local Control
- Overload and Temperature Protection for Enhanced Safety
- Compact DIN Rail Mount Design for Electrical Panel Installation
- Compatible With Popular Home Automation Systems and Platforms
