Silent Knight · Fire Alarm

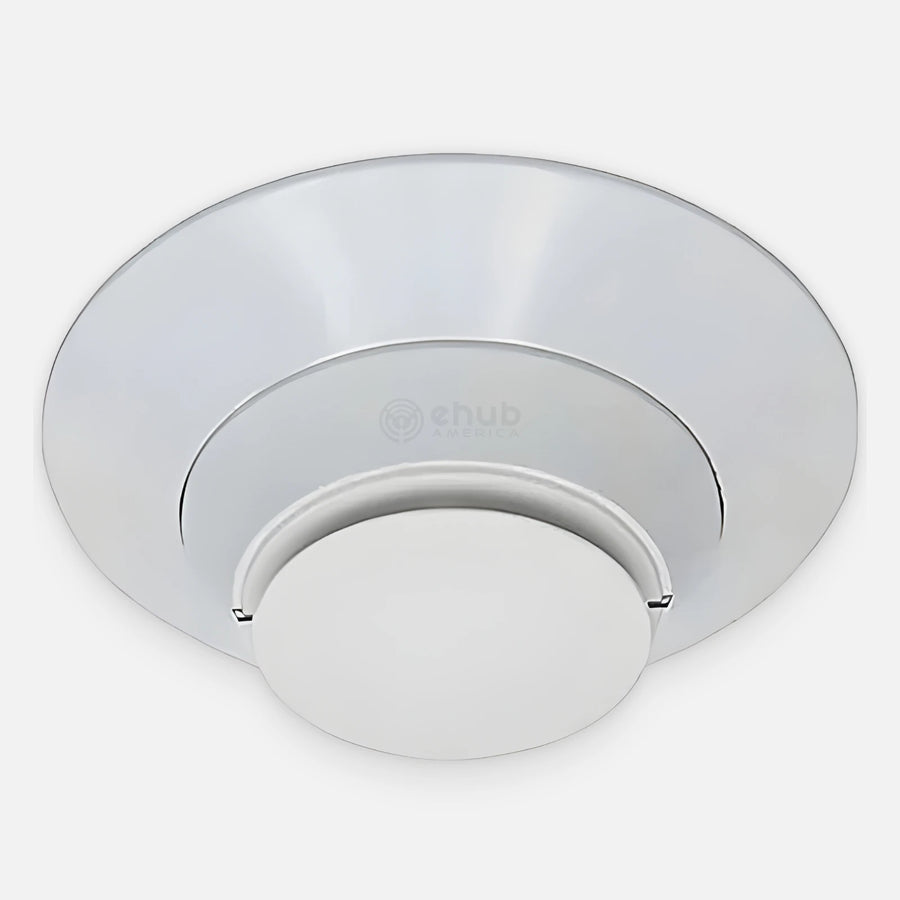

Silent Knight SK-PHOTO-W Addressable Photoelectric Smoke Detector, White

Part number / SKU
SK-PHOTO-W
  • Plug-in smoke detector
  • Photoelectric
  • Addressable
  • Plug-in
  • 15 to 32 VDC peak

Works with: B300-6 mounting base, B501 mounting base, B200S sounder base, B200SR sounder base, B200S-LF low frequency sounder base, B200SR-LF low frequency sounder base and 7 more models Confirmed by the manufacturer


$52.99

In stock

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Silent Knight SK-PHOTO-W is an intelligent, addressable, low-profile plug-in photoelectric smoke detector in white. It connects to a Silent Knight panel over a two-wire SLC with built-in communication and device-type identification, and directly replaces the earlier SK-PHOTO Series. Sensitivity is programmed in the panel software and continuously monitored.

The detector runs on 15 to 32 VDC peak, drawing 200 µA maximum average standby and 4.5 mA in alarm at 24 VDC. Sensitivity ranges from 0.5% to 4.0% per foot obscuration for UL applications, and the air velocity range is 0 to 4000 ft/min, so it is suitable for duct installation. Rotary decimal switches set the address, and two-color LEDs give 360° viewing: green blink in normal status, steady red in alarm. It is UL Listed S6173, FM Approved and CSFM 7272-0559:0512.

It plugs into the B300-6 or B501 bases, the B200S and B200SR sounder bases, the B224RB relay base or the B224BI isolator base, on a back box at least 1.5 in deep.

  • Best for: addressable smoke detection on Silent Knight systems, including duct installations within the 0 to 4000 ft/min air velocity range.
  • System fit: Silent Knight addressable panels on the SLC; bases B300-6, B501, B200S, B200SR, B224RB and B224BI.
  • Important to know: installation must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Programmable sensitivity

    0.5% to 4.0% per foot (UL), set and monitored from the panel.

  • 360° status LEDs

    blink green in normal status and turn steady red in alarm.

  • Built-in testing

    remote test from the panel plus a magnet-activated test switch.

  • Flexible bases

    standard, sounder, relay and isolator bases are available.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUSK-PHOTO-W
General
Brand Silent Knight
Series SK-PHOTO-W Series
Model SK-PHOTO-W
Device Type Plug-in smoke detector
Device Type Detail Intelligent
Detection Type Photoelectric
Addressing Addressable
Addressing Detail Rotary decimal address switches
Sensitivity, UL 0.5% to 4.0% per foot obscuration
Sensitivity, ULC 0.5% to 3.5% per foot obscuration
Air Velocity 0 to 4000 ft/min (1219.2 m/min)
Indicators Two-color LEDs, 360° viewing; blink green in normal status, steady red in alarm
Testing Remote test from the panel; magnet-activated test switch
Mount Type Plug-in
Mount Type Detail Requires separate base on a back box at least 1.5 in (3.81 cm) deep
Wiring Two-wire SLC; T-taps permitted for Class B wiring
End-of-Line Resistor Not required; SLC loop supervision
Electrical
Operating Voltage 15 to 32 VDC peak
Standby Current 200 µA max average at 24 VDC (one communication every 5 s, LED enabled)
Alarm Current 4.5 mA max at 24 VDC
Physical
Height 2.0 in (51 mm)
Diameter 6.1 in in B300-6 base; 4 in (10.2 cm) in B501 base
Weight 3.4 oz
Color White
Environmental
Operating Temperature 32°F to 122°F (0°C to 50°C)
Humidity 10% to 93% RH non-condensing
Listings and Approvals
Agency Approvals UL Listed S6173; FM Approved; CSFM 7272-0559:0512
Standards Designed to meet UL 268, 7th Edition
