Simplex · Batteries

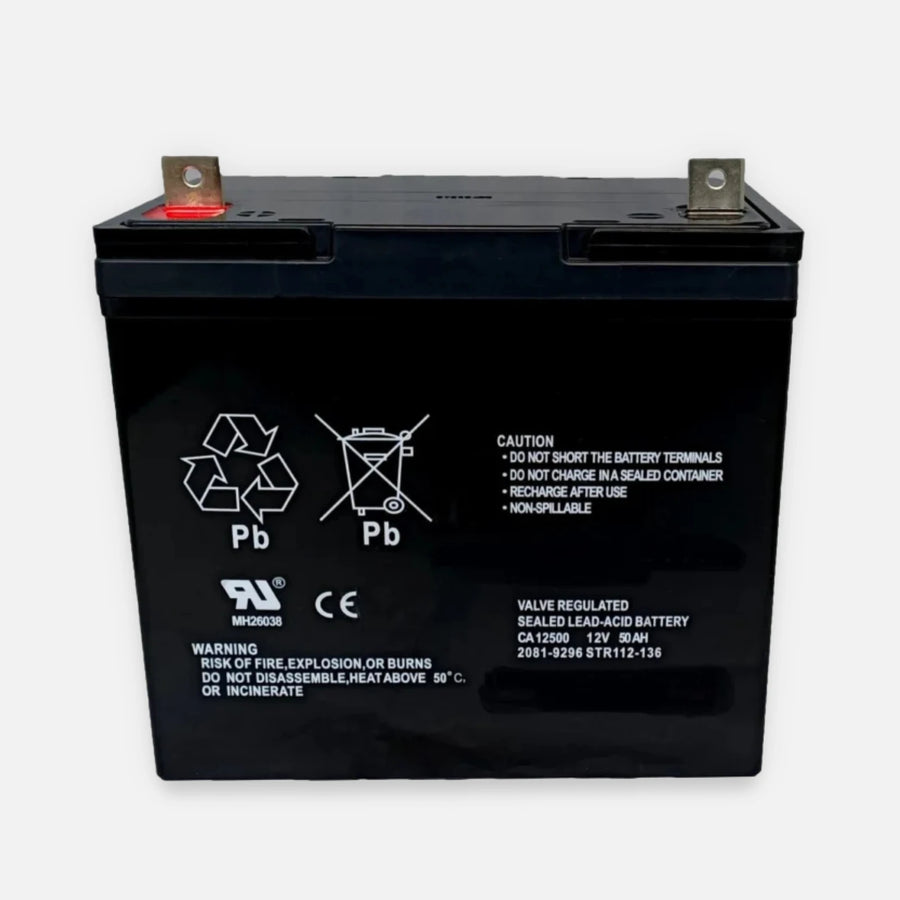

Simplex 2081-9296 12 V 50 Ah Sealed Lead-Acid Fire Alarm System Battery

Part number / SKU
2081-9296
  • 50 Ah, 20 hour rate
  • Sealed lead-acid

Works with: Simplex 4100ES panel (2 or 3 bay cabinet), Simplex 4100U panel (2 or 3 bay cabinet), Simplex 4010ES panel (two-bay cabinet), Simplex 4100 and 4120 panels (external cabinet), Simplex 4004R and 4010 panels (4081 series charger cabinet), 2081-9281 battery cabinet, beige and 5 more models Confirmed by the manufacturer


$210.91

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 2081-9296 is a 12 V, 50 Ah sealed lead-acid system battery for standby power on larger Simplex fire alarm systems. Two batteries are wired in series for 24 V systems. Because of its size it mounts in 2 or 3 bay 4100ES and 4100U cabinets, in two-bay 4010ES cabinets, or in an external battery cabinet or 4081 series charger cabinet, depending on the panel.

The battery measures 9 x 5.5 x 8.875 in (229 x 140 x 225 mm) including terminals and weighs 41.8 lb (19 kg). It uses a lead-calcium grid with immobilized electrolyte, needs no water added, has low self-discharge and carries UL 924 recognized pressure relief valves in a one-piece polystyrene cover. Simplex calls for charging only with compatible Simplex chargers, prefers a charge temperature of 60 to 90 F and gives a typical life of 100 to 150 charge/discharge cycles.

External cabinets Simplex lists for the 50 Ah battery include the 2081-9281 (beige) and 2081-9282 (red) two-unit battery cabinets, the 4081-9301 and 4081-9302 charger cabinets for 4004R and 4010 panels, and the 4081-9306 and 4081-9308 charger cabinets for 4100ES, 4010ES and 4100U panels.

  • Best for: long standby periods on Simplex 4100ES, 4100U, 4010ES and other panels that need 50 Ah batteries in a larger or external cabinet.
  • System fit: 2 or 3 bay 4100ES/4100U cabinets, two-bay 4010ES cabinets, external cabinet on 4100/4120, 4081 series charger cabinet on 4004R and 4010.
  • Important to know: this battery does not fit the 4003EC, 4005, 4006, 4007ES, 4008 or 4009 cabinets; battery sizing and installation should be done by a qualified fire alarm technician.

Why teams choose it

Keeps your radios in service

  • High capacity

    50 Ah at 12 V for extended standby on large systems.

  • Cabinet options

    listed for 2081-9281 and 2081-9282 battery cabinets and 4081 series charger cabinets.

  • Low maintenance

    immobilized electrolyte and a lead-calcium grid mean no water is added in service.

  • Pressure relief

    UL 924 recognized pressure relief valves are built into the cell cover.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU2081-9296
General
Brand Simplex
Model 2081-9296
Device Type Sealed lead-acid system battery
Chemistry Sealed lead-acid
Chemistry Detail Lead-calcium grid, immobilized electrolyte in an absorbent separator
Maintenance No water addition; low self-discharge
Electrical
Nominal Voltage 12 V
Capacity 50 Ah, 20 hour rate
24 V Systems Two 12 V batteries wired in series
Battery Sets Same voltage and model number, about the same manufacture date
Charging Compatible Simplex battery chargers only
Preferred Charge Temperature 60 to 90 F (15.6 to 32.2 C)
Typical Life 100 to 150 charge/discharge cycles
Physical
Dimensions 9 x 5.5 x 8.875 in (229 x 140 x 225 mm) W x D x H, including terminals
Weight 41.8 lb (19 kg)
Panel Mounting 2 or 3 bay 4100ES/4100U cabinets; two-bay 4010ES cabinets only
External Cabinets 2081-9281, 2081-9282; charger cabinets 4081-9301, 4081-9302, 4081-9306, 4081-9308
Not Compatible (in cabinet) 4003EC, 4005, 4006, 4007ES, 4008, 4009
Cell Cover One-piece high-impact polystyrene
Pressure Relief UL 924 recognized pressure relief valves
Listings and Approvals
Standards Meets the requirements of UL, ULC and Factory Mutual for use with the respective equipment battery chargers
