Simplex 2098-9806 Remote Test Station with Keyswitch and Red Alarm LED for Duct Sensor Housings

Part number / SKU
2098-9806
  • Remote test station
  • Single-gang

Works with: 4098-9755 basic duct sensor housing, 4098-9756 duct sensor housing with relay control Confirmed by the manufacturer


$29.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

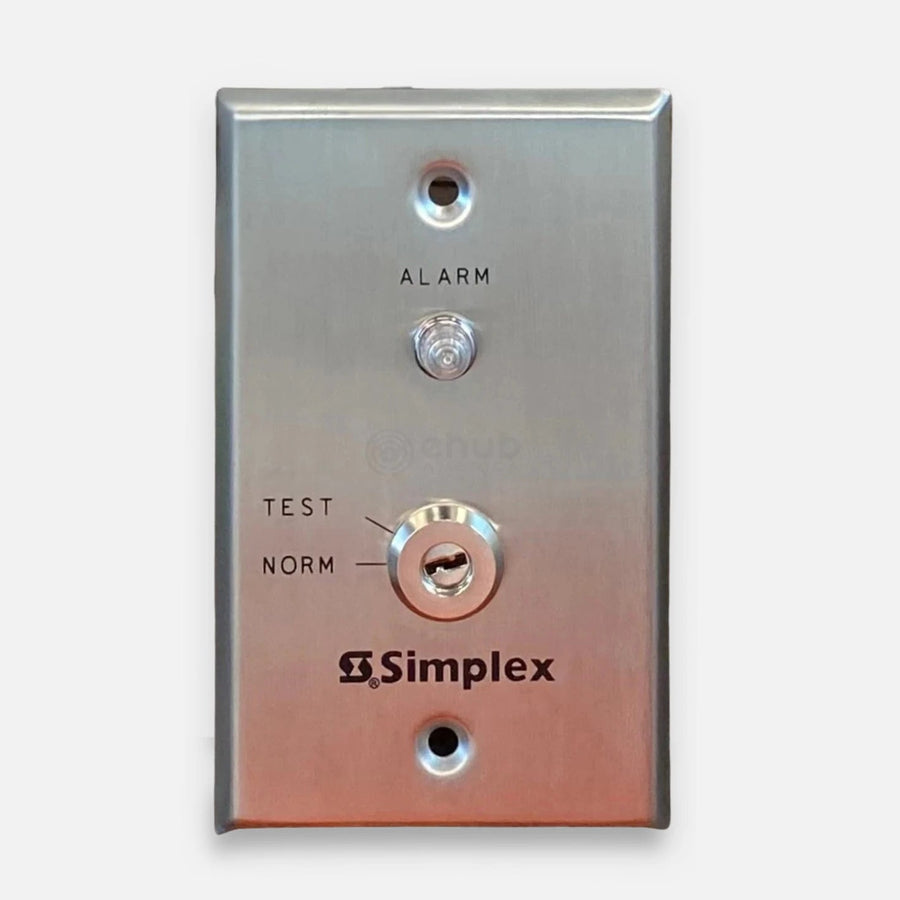

The Simplex 2098-9806 is a remote test station for Simplex addressable duct sensor housings. It has a keyswitch and a red status/alarm LED on a single-gang stainless steel plate, so a duct sensor housing can be tested and its status seen from a remote location.

Turning the keyswitch to TEST starts an alarm for system testing. The red LED draws 1.2 mA and the keyswitch 3.3 mA, with no effect on the 24 VDC alarm current, and the station can be located up to 250 ft (76 m) from the duct sensor housing. It is listed as an accessory for the 4098-9755 basic duct sensor housing and the 4098-9756 duct housing with relay control.

  • Best for: remote alarm testing and status indication for Simplex 4098-9755 and 4098-9756 duct sensor housings.
  • System fit: Simplex 4098-9755 and 4098-9756 TrueAlarm duct sensor housings.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Remote testing

    turning the key to TEST starts an alarm without opening the duct housing.

  • Visible status

    a red LED shows the duct sensor status at the test station.

  • Long reach

    mounts up to 250 ft (76 m) from the duct sensor housing.

  • Low current

    1.2 mA for the LED and 3.3 mA for the keyswitch.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU2098-9806
General
Brand Simplex
Model 2098-9806
Device Type Remote test station
Device Type Detail With keyswitch and red status LED
Test Function Keyswitch in TEST position initiates an alarm
Indicator Red status/alarm LED
For Use With 4098-9755 and 4098-9756 duct sensor housings
Electrical
LED Current 1.2 mA
Keyswitch Current 3.3 mA
Alarm Current Impact None on the 24 VDC alarm current
Maximum Distance 250 ft (76 m) from the duct sensor housing
Physical
Plate Single-gang stainless steel plate
Mount Type Single-gang
