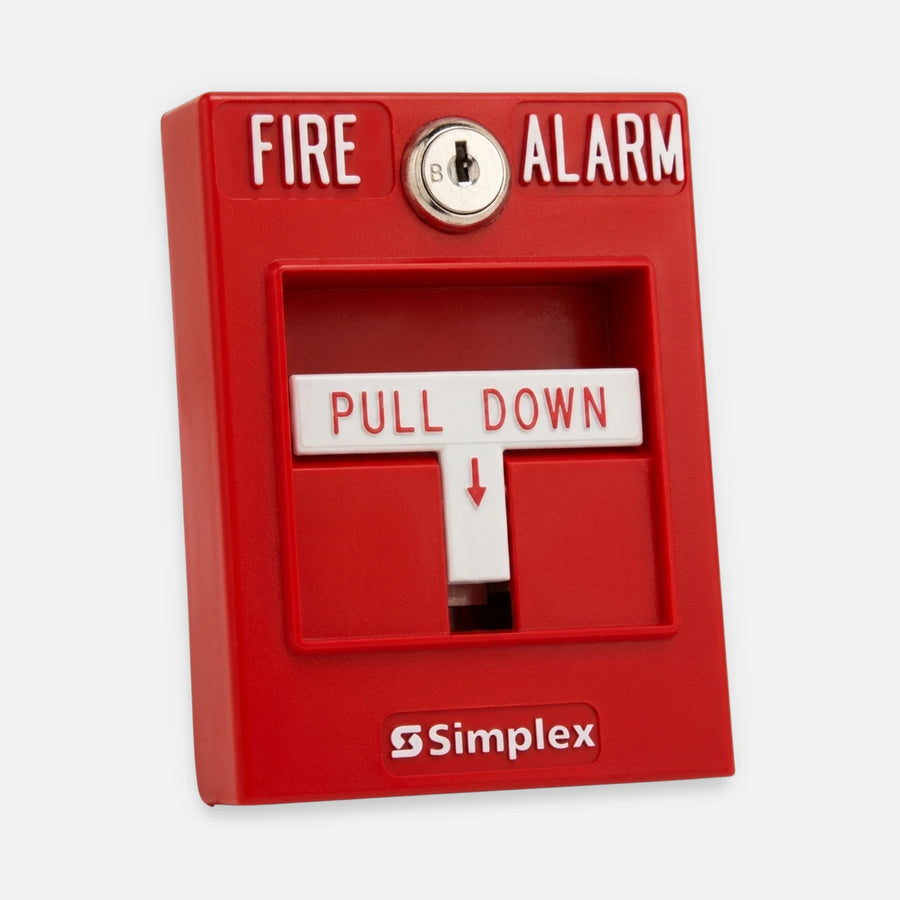

Simplex 2099-9754 Single Action Non-Coded Manual Fire Alarm Pull Station

Part number / SKU
2099-9754
  • Manual pull station
  • Conventional
  • Semi-flush or surface
  • UL, ULC, CSFM, FM, NYC MEA

Works with: 2975-9178 red sheet metal surface box, 2975-9022 red cast aluminum surface box, 2099-9804 replacement break-rod, 2099-9819 flush adapter kit, black, 2099-9820 flush adapter kit, beige, 4099-9805 NO GRIP retrofit kit and 3 more models Confirmed by the manufacturer


$38.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 2099-9754 is a single action, non-coded, non-addressable manual pull station from the 2099 Series. A firm downward pull on the lever activates the alarm switch, and the lever protrudes to show the station was operated. It is the basic model in the series, without pre-signal, annunciator contacts or covers.

The housing and pull lever are high impact polycarbonate: a red housing with white raised lettering and a white lever with red raised lettering. It measures 5 x 3 3/4 x 1 in (127 x 95 x 25 mm). Wiring lands on screw terminals for 18 to 14 AWG, and reset is by key through a tamper resistant lock. The station mounts semi-flush on a standard single gang switch box 2 1/2 in (64 mm) deep, or on the surface with a 2975-9178 or 2975-9022 red surface box.

A break-rod is supplied; its use is optional, and a used break-rod must be replaced (2099-9804). Simplex also offers a flush adapter kit, a NO GRIP retrofit kit for an easier lever and an institutional cover kit for this station.

  • Best for: conventional fire alarm systems that need a basic single action manual station.
  • System fit: conventional (non-addressable) fire alarm initiating circuits; surface boxes 2975-9178 or 2975-9022.
  • Important to know: Simplex states operation complies with ADA requirements and the operable part should be 42 to 48 in above the floor; installation must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Simple operation

    one firm downward pull activates the alarm, and the lever stays out to mark the station.

  • Key reset

    resets with a key through a tamper resistant lock.

  • Flexible mounting

    semi-flush on standard boxes or surface with matching red Simplex boxes.

  • Listed device

    UL listed to Standard 38 with UL, ULC, CSFM and FM approvals and NYC MEA acceptance.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU2099-9754
General
Brand Simplex
Model 2099-9754
Series 2099 Series non-coded, non-addressable manual stations
Device Type Manual pull station
Device Type Detail Single action
Addressing Conventional
Operation Firm downward pull activates the alarm switch; lever protrudes when alarmed
Break-Rod Supplied, use optional; replace after use with 2099-9804
Reset Key reset through tamper resistant lock (252-019 B key)
Electrical
Wiring Screw terminals for in/out wiring, 18 to 14 AWG
Physical
Dimensions 5 in H x 3 3/4 in W x 1 in D (127 x 95 x 25 mm)
Material High impact polycarbonate housing and pull lever
Color Red housing with white raised lettering; white lever with red raised lettering
Mount Type Semi-flush or surface
Semi-Flush Box Standard single gang switch box, 2 1/2 in (64 mm) deep; do not recess, 1/16 in (2 mm) max protrusion
Surface Box 2975-9178 red sheet metal (5 3/16 x 4 x 2 3/16 in) or 2975-9022 red cast aluminum (5 x 3 7/8 x 2 3/16 in)
Mounting Height Operable part 42 to 48 in (1.07 to 1.22 m) above floor
Environmental
UL Listed Temperature 32 to 120 F (0 to 49 C), indoor use
Humidity Up to 93% RH at 100 F (38 C)
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM, NYC MEA
Approval Details UL listed to Standard 38; UL, ULC, CSFM listed; FM Approved; NYC MEA accepted
CSFM Listing 7150-0026:175 (pull boxes)
