Simplex · Fire Alarm

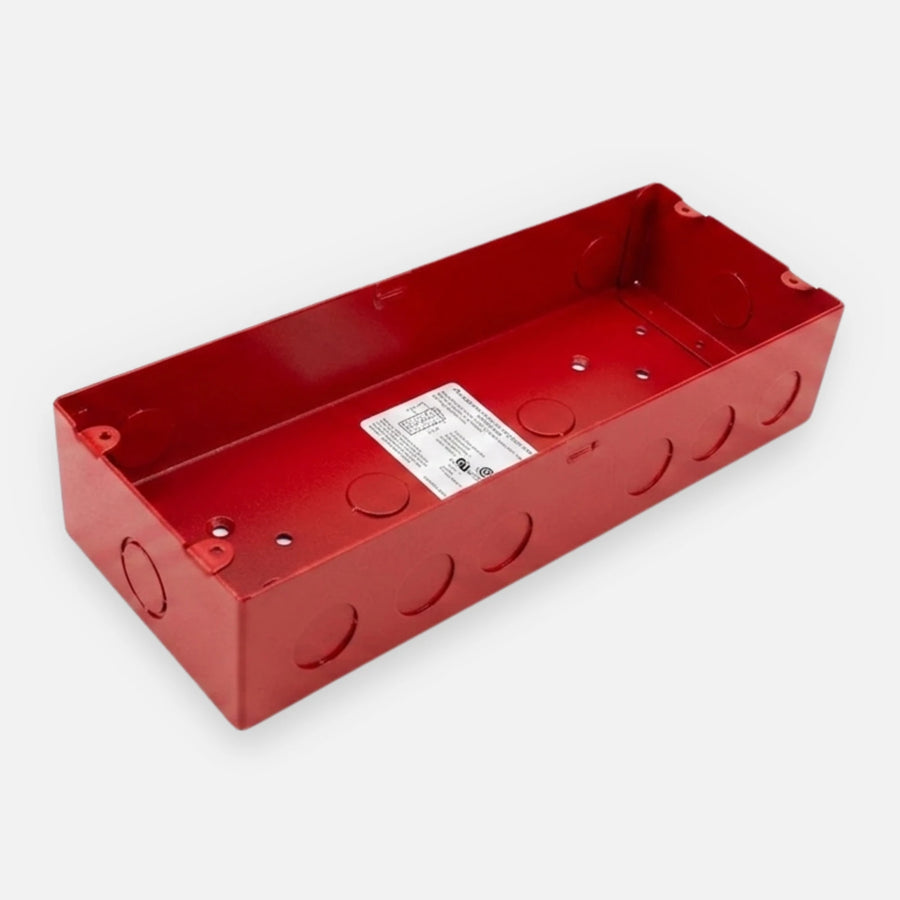

Simplex 2975-9461 Red Surface Mount Box for 4606-9202 LCD Annunciator

Part number / SKU
2975-9461
  • Surface mount metal back box
  • Surface

Works with: 4606-9202 LCD annunciator, red trim, 2975-9463 semi-flush mount box adapter (alternative), RACO 944 5-gang box (flush alternative) Confirmed by the manufacturer


$103.62

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 2975-9461 is a red surface mount metal back box for the 4606-9202 LCD annunciator (red trim). It is used to mount the annunciator on the wall surface.

The box measures 12 1/4 x 4 1/2 x 2 1/2 in (311 x 114 x 64 mm) W x H x D. The annunciator itself measures 13 x 5.21 x 2 in (330 x 132 x 51 mm). For flush mounting the annunciator uses a 5-gang RACO 944 box instead, and for existing flush boxes the 2975-9463 semi-flush adapter is available. A platinum version of the surface box is the 2975-9462.

  • Best for: surface mounting a 4606-9202 LCD annunciator on finished walls.
  • System fit: Simplex 4606-9202 LCD annunciator with red trim.
  • Important to know: use the red box with the red trim 4606-9202; installation must be done by a qualified fire alarm technician in line with local code.

Why teams choose it

Built for fire alarm systems

  • Surface installation

    mounts the annunciator without a recessed box.

  • Matching finish

    red to match the 4606-9202 red trim.

  • Metal box

    surface mount metal construction.

  • Sized for the annunciator

    12 1/4 x 4 1/2 x 2 1/2 in box for a 13 x 5.21 in annunciator.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU2975-9461
General
Brand Simplex
Model 2975-9461
Device Type Surface mount metal back box
For Use With 4606-9202 LCD annunciator, red trim
Platinum Version 2975-9462
Physical
Dimensions 12 1/4 x 4 1/2 x 2 1/2 in (311 x 114 x 64 mm) W x H x D
Color Red
Material Metal
Mount Type Surface
Annunciator Dimensions 13 x 5.21 x 2 in (330 x 132 x 51 mm)
