Simplex · Fire Alarm

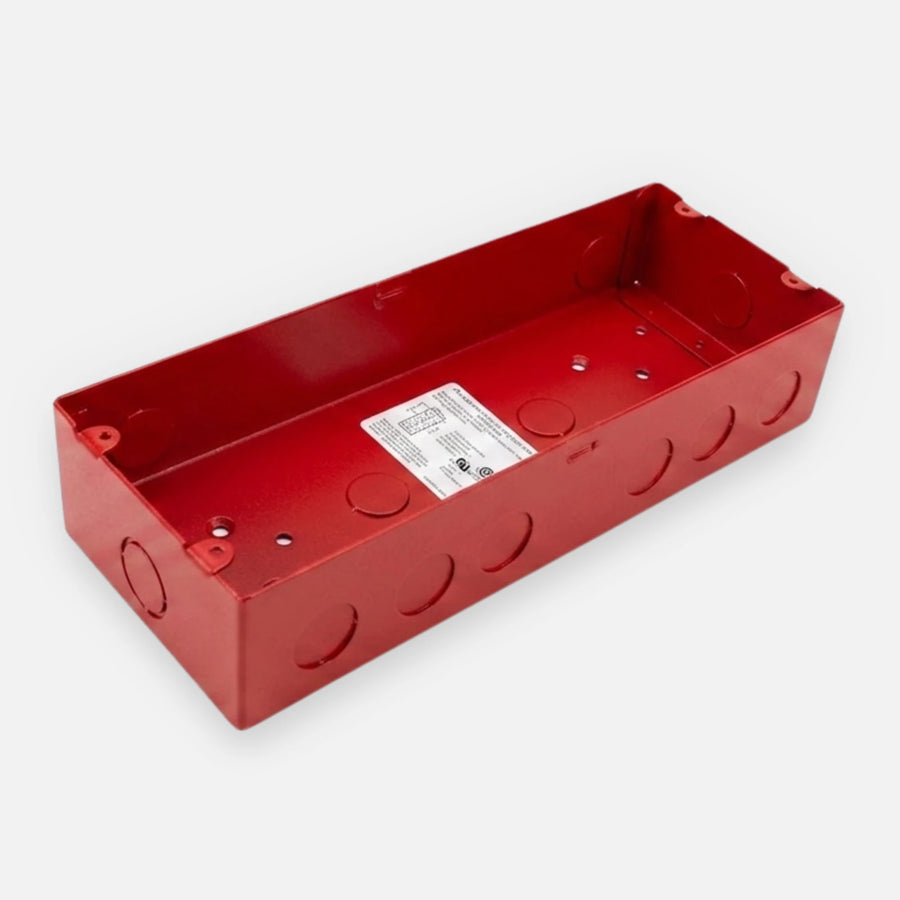

Simplex 2975-9463 Red Semi-Flush Mount Box Adapter for 4606-9202 LCD Annunciator

Part number / SKU
2975-9463
  • Semi-flush mount box adapter
  • Semi-flush

Works with: 4606-9202 LCD annunciator, red trim, 2975-9461 red surface mount box (alternative), RACO 944 5-gang box (flush alternative) Confirmed by the manufacturer


$88.36

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 2975-9463 is a red semi-flush mount box adapter for the 4606-9202 LCD annunciator (red trim). It fits existing 2-gang, 4-gang, 6-gang or 4 in square flush mounted boxes, which makes it suited to retrofits where a legacy annunciator is being replaced.

The adapter measures 12 1/4 x 4 1/2 x 1 3/4 in (311 x 114 x 44 mm) W x H x D. The annunciator itself measures 13 x 5.21 x 2 in (330 x 132 x 51 mm). For new flush work the annunciator uses a 5-gang RACO 944 box, and for surface mounting the 2975-9461 red surface box. A platinum version of the adapter is the 2975-9464.

  • Best for: retrofitting a 4606-9202 LCD annunciator onto existing flush boxes left by a legacy annunciator.
  • System fit: Simplex 4606-9202 LCD annunciator with red trim; existing 2, 4 or 6-gang or 4 in square flush boxes.
  • Important to know: this is a semi-flush adapter, not a full back box; installation must be done by a qualified fire alarm technician in line with local code.

Why teams choose it

Built for fire alarm systems

  • Retrofit friendly

    fits existing 2-gang, 4-gang, 6-gang or 4 in square flush boxes.

  • Semi-flush finish

    shallow 1 3/4 in (44 mm) depth.

  • Matching finish

    red to match the 4606-9202 red trim.

  • Sized for the annunciator

    12 1/4 x 4 1/2 in face for a 13 x 5.21 in annunciator.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU2975-9463
General
Brand Simplex
Model 2975-9463
Device Type Semi-flush mount box adapter
For Use With 4606-9202 LCD annunciator, red trim
Fits Existing Boxes 2-gang, 4-gang, 6-gang or 4 in square flush mounted boxes
Platinum Version 2975-9464
Physical
Dimensions 12 1/4 x 4 1/2 x 1 3/4 in (311 x 114 x 44 mm) W x H x D
Color Red
Material Metal
Mount Type Semi-flush
Annunciator Dimensions 13 x 5.21 x 2 in (330 x 132 x 51 mm)
