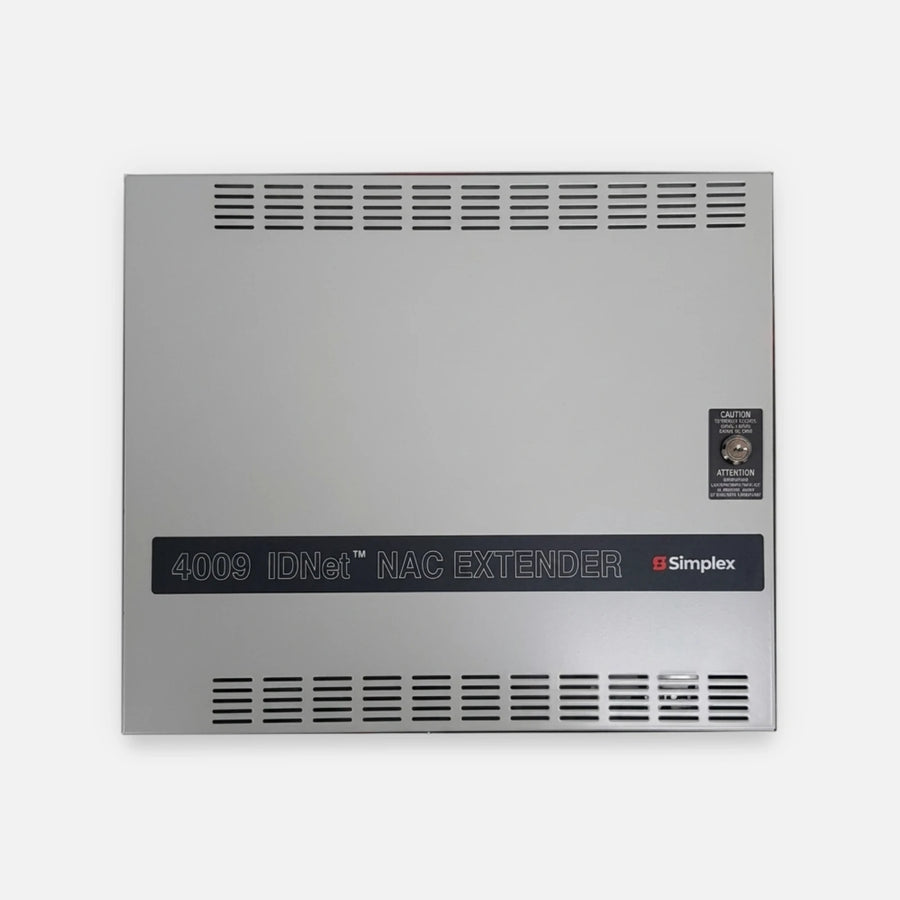

Simplex 4009-9201 IDNet NAC Extender, 4 Class B NACs, 8 A, 120 VAC

Part number / SKU
4009-9201
  • NAC extender power supply
  • One IDNet point address

Works with: Simplex 4007ES panel, Simplex 4010 panel (rev 2 software or higher), Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel (rev 11 software or higher), 2081-9272 6.2 Ah battery and 2 more models Confirmed by the manufacturer


$854.78

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4009-9201 is a 4009 IDNet NAC extender that adds notification appliance circuit power to a Simplex fire alarm system. It provides four Class B NACs from an 8 A power supply on 120 VAC input, and it can be controlled over IDNet communications from 4007ES, 4010, 4010ES and 4100ES panels or by conventional NACs from one or two host panels.

Total output is 8 A for special application appliances or 6 A for regulated 24 VDC appliances, with 2 A per standard NAC and a 500 mA 24 VDC auxiliary output. NACs are reverse polarity, with strobe synchronization for up to 33 strobes per NAC and local Temporal or March Time coding. The internal charger handles batteries up to 12.7 Ah, with up to 18 Ah in an external cabinet. It uses one IDNet address, up to 10 extenders can share a 4010ES, 4100ES or 4100U IDNet channel (5 on a 4010), and the input can be up to 2,500 ft (762 m) from the IDNet source.

Options include a four-point NAC module rated 1.5 A per NAC for up to eight NACs, dual Class A adapters, an IDNet repeater output for up to 100 devices, fiber optic IDNet transmission up to 3,000 ft (914 m) and an external battery cabinet for batteries up to 18 Ah.

  • Best for: adding horn and strobe power at a distance from the main panel on Simplex IDNet systems, or extending NACs from a conventional host panel.
  • System fit: Simplex 4007ES, 4010 (rev 2 or higher), 4010ES, 4100ES and 4100U (rev 11 or higher) over IDNet, or conventional NAC control from host panels.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • More NAC power

    8 A total for special application appliances across four Class B NACs, expandable to eight.

  • Two control methods

    IDNet addressable control or hardwired control from one or two conventional NACs.

  • Strobe sync

    up to 33 strobes per NAC can be synchronized.

  • Built-in charger

    charges batteries up to 12.7 Ah internally, with an external cabinet for up to 18 Ah.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4009-9201
General
Brand Simplex
Model 4009-9201
Series 4009 IDNet NAC Extender
Device Type NAC extender power supply
NACs 4 Class B, reverse polarity; up to 8 with four-point NAC module
Class A With dual Class A adapter
Control IDNet communications or conventional hardwired NAC input
Addressing One IDNet point address
Addressing Detail Per extender
Extenders per Channel Up to 10 per 4010ES, 4100ES or 4100U IDNet channel; up to 5 on 4010
Strobe Sync Up to 33 strobes per NAC
Local Coding Temporal or 60 beats/min March Time (one code per extender)
Earth Fault Battery, input power and earth fault monitoring; IDNet device level earth fault location
WALKTEST Available with either input method
Electrical
AC Input 3 A at 102 to 132 VAC, 60 Hz
Total Output 8 A special application appliances; 6 A regulated 24 VDC appliances
Output per NAC 2 A per standard NAC; 1.5 A special application or 1 A regulated 24 VDC per optional NAC
Auxiliary Output 500 mA at 24 VDC nominal
Hardwire Control Input 5 mA max, 16 to 33 VDC
Current Draw 85 mA supervisory; 185 mA alarm (basic panel)
Battery Charger Batteries up to 12.7 Ah internal; up to 18 Ah in external cabinet
IDNet Distance 2,500 ft (762 m) max from IDNet source
Fiber Optic IDNet 3,000 ft (914 m) max
Wiring Terminals 18 AWG stranded to 12 AWG solid
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10 to 90% RH at 32 to 104 F (0 to 40 C)
