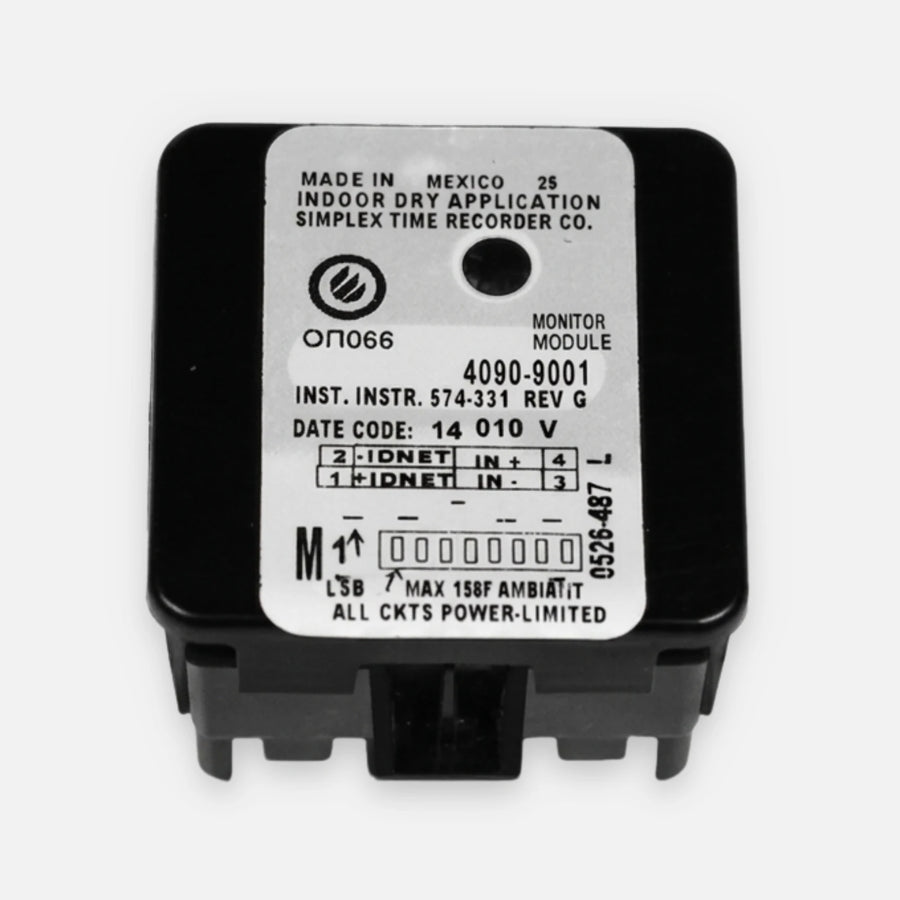

Simplex 4090-9001 Supervised IAM Addressable Input Module, IDNet and MAPNET II

Part number / SKU
4090-9001
  • Supervised IAM
  • Addressable, one address per IAM
  • Standard single-gang box
  • UL, CSFM

Works with: Simplex 4007ES panel, Simplex 4008 panel, Simplex 4010 panel, Simplex 4010ES panel, Simplex 4100ES panel, 4081-9004 EOL resistor harness, 6.8 kohm and 9 more models Confirmed by the manufacturer


$37.05

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4090-9001 is a supervised individual addressable module (IAM) that monitors normally open dry contacts and reports them to a Simplex addressable fire alarm panel. It runs on IDNet or MAPNET II communications, auto-selected, over a single two-wire pair that carries both power and data, and uses one address.

The input is supervised Class B through the wiring to an end-of-line resistor up to 500 ft (152 m) away, or 400 ft (122 m) with overvoltage protectors. With the proper end-of-line and current-limiting resistors it provides quad-state sensing (normal, open, short and current-limited), so one point can handle dual monitoring such as a tamper and a waterflow switch. The small black thermoplastic module measures 1 9/16 x 1 3/4 x 1 1/4 in (40 x 44 x 32 mm), has screw terminals for 18 to 14 AWG and is rated 32 to 158 F (0 to 70 C) for indoor use.

It mounts in a standard single-gang box, or on a surface box with the 4090-9807 trim plate, or semi-flush with the 4090-9806 trim plate and 4090-9810 bracket, which let the communications LED be seen. It can also serve as a non-fire input for single-station smoke detectors, with its in and out wiring passed through a 4090-9116 isolator.

  • Best for: bringing contact devices such as waterflow and tamper switches, heat detectors and other dry contacts onto a Simplex addressable loop.
  • System fit: Simplex 4007ES, 4008, 4010, 4010ES and 4100ES panels on IDNet; 4020, 4100, 4100U and 4120 panels and 2120 CDTs on MAPNET II.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Quad-state sensing

    reports normal, open, short and current-limited states with the proper resistors.

  • Dual monitoring

    one addressable point can watch a tamper switch and a waterflow switch.

  • Momentary contacts

    panel settings can latch the alarm from momentary contacts such as rate-of-rise heat detectors.

  • Wide temperature range

    rated 32 to 158 F (0 to 70 C) for indoor use.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4090-9001
General
Brand Simplex
Model 4090-9001
Device Type Supervised IAM
Device Type Detail Individual addressable module; input
Addressing Addressable, one address per IAM
Communications IDNet or MAPNET II, auto-selected; power and data on one two-wire pair
Input Normally open dry contacts
Supervision Class B, through wiring to end-of-line resistor
Sensing Quad-state with proper EOL and current-limiting resistors
LED Flashes to show communications
Electrical
EOL Resistor 6.8 kohm, 1/2 W harness 4081-9004 (standard N.O. supervision)
Other EOL Harnesses 4.7 kohm 4081-9003 (current-limited monitoring); 1.8 kohm 4081-9005
IAM to Contacts 500 ft (152 m) max; 400 ft (122 m) with overvoltage protectors
Communication Distance 2,500 ft (762 m) from panel; 10,000 ft (3,048 m) total including T-taps
Wire Terminals Screw terminals, 18 to 14 AWG (0.82 to 2.08 mm2)
Physical
Dimensions 1 9/16 in W x 1 3/4 in H x 1 1/4 in D (40 x 44 x 32 mm)
Housing Black thermoplastic, enclosed
Mount Type Standard single-gang box
Mount Type Detail Surface box with 4090-9807 trim plate; semi-flush with 4090-9806 trim plate and 4090-9810 bracket
Environmental
Operating Temperature 32 to 158 F (0 to 70 C), indoor use only
Humidity Up to 93% RH at 100 F (38 C)
Listings and Approvals
Agency Approvals UL, CSFM
Approval Details UL listed to Standard 864; CSFM listed
CSFM Listing 7300-0026:223
NYC MEA35-93E
