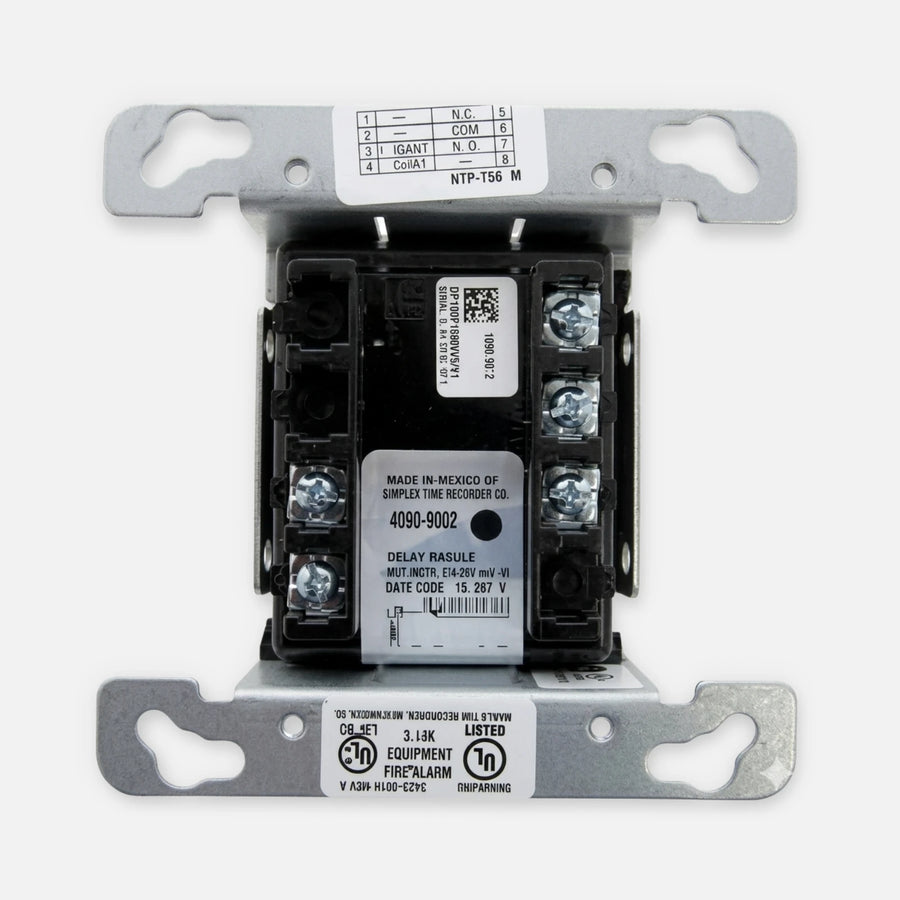

Simplex 4090-9002 IDNet Relay IAM Addressable Relay Module, Form C 2 A

Part number / SKU
4090-9002
  • Relay IAM
  • Addressable
  • 4 in square box
  • UL, ULC, CSFM, FM

Works with: Simplex 4007ES panel, Simplex 4008 panel, Simplex 4010 panel, Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel and 4 more models Confirmed by the manufacturer


$60.24

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4090-9002 relay IAM is an individual addressable module that lets a Simplex fire alarm panel control a remote Form C contact over IDNet. IDNet communications supply both data and module power, and the module uses one address for both control and status reporting.

The SPDT contacts are rated 2 A at 24 VDC resistive or 1 A at 24 VDC inductive (power-limited), and 0.5 A at 120 VAC resistive (non-power-limited); they are not rated for incandescent loads. The relay sets to OFF at power-up and on loss of IDNet communications. Wiring lands on screw terminals for 18 to 14 AWG, up to 2,500 ft (762 m) from the panel and 10,000 ft (3,048 m) total including T-taps. The black thermoplastic module measures 4 1/8 x 4 1/8 x 1 3/8 in (105 x 105 x 35 mm).

It mounts in a standard 4 in square box at least 2 1/8 in deep (RACO 232 or equal), with a 4090-9813 adapter for a 4 11/16 in box, and a double gang blank cover or the 4090-9801 (semi-flush) or 4090-9802 (surface) trim plate with LED window.

  • Best for: elevator capture, HVAC component control, pressurization fans, dampers and other local control functions from the fire alarm panel.
  • System fit: Simplex 4007ES, 4008, 4010, 4010ES, 4100ES and 4100U panels on IDNet.
  • Important to know: provide circuit fusing and transient suppression for the controlled load; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Addressable control

    one IDNet address handles both relay control and status.

  • Fail-safe state

    the relay sets to OFF at power-up and on loss of IDNet communications.

  • No separate power

    the module is powered by IDNet communications.

  • Listed for fire use

    UL listed to Standard 864 with ULC, CSFM, FM and NYC MEA acceptance.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4090-9002
General
Brand Simplex
Model 4090-9002
Device Type Relay IAM
Device Type Detail Individual addressable relay module
Addressing Addressable
Addressing Detail One IDNet address for control and status
Communications IDNet; powered by IDNet communications
Relay OFF at initial power-up and on loss of IDNet communications
LED Flashes to show communications
Electrical
Contact Type Form C, SPDT
Contact Rating, Power-Limited 2 A at 24 VDC resistive; 1 A at 24 VDC inductive
Contact Rating, Non-Power-Limited 0.5 A at 120 VAC resistive
Load Note Not rated for incandescent switching
Wire Terminals Screw terminals, 18 to 14 AWG (0.82 to 2.08 mm2)
Wiring Distance 2,500 ft (762 m) from panel; 10,000 ft (3,048 m) total including T-taps
Surge Protection Compatible with 2081-9044 overvoltage protector
Physical
Dimensions 4 1/8 in H x 4 1/8 in W x 1 3/8 in D (105 x 105 x 35 mm)
Housing Black thermoplastic; galvanized sheet metal mounting plate
Mount Type 4 in square box
Mount Type Detail 4 in (102 mm) square box, 2 1/8 in (54 mm) min. depth (RACO 232 or equal); 4090-9813 adapter for 4 11/16 in (119 mm) box
Covers Double gang blank cover, or 4090-9801 / 4090-9802 trim plate with LED window
Environmental
Operating Temperature 32 to 120 F (0 to 49 C), indoor use
Humidity Up to 93% RH at 100 F (38 C)
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM
Approval Details UL listed to Standard 864; UL, ULC, CSFM listed; FM Approved
CSFM Listing 7300-0026:223
NYC MEA35-93E
