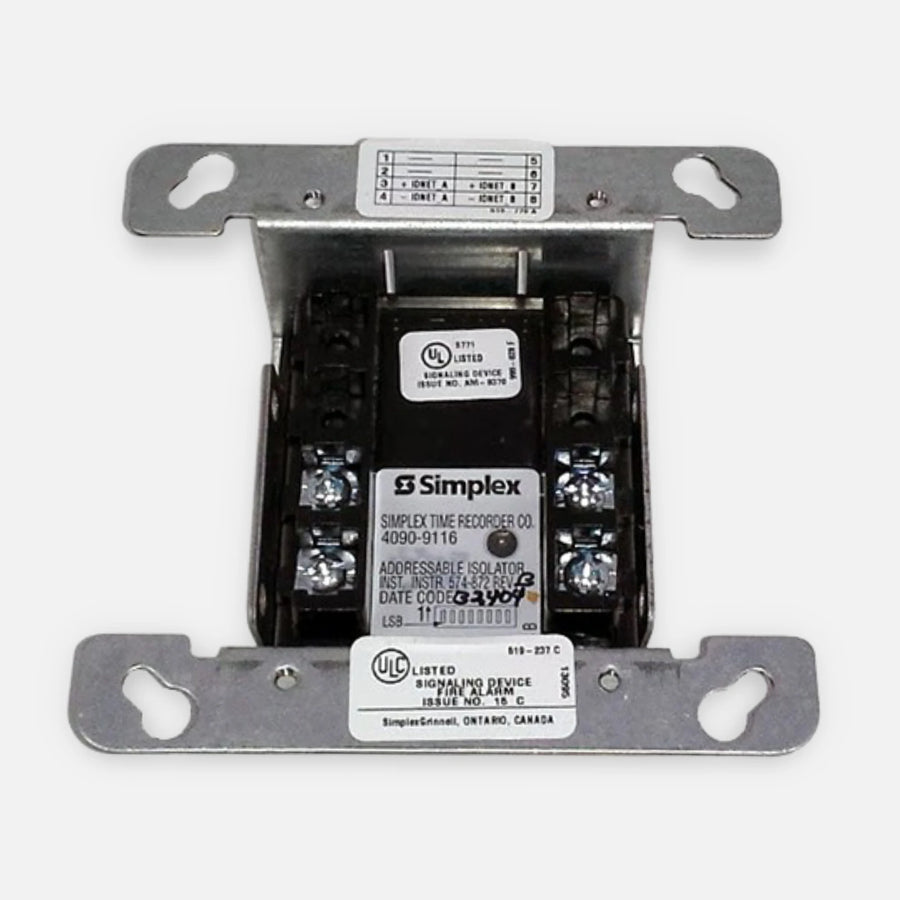

Simplex 4090-9116 Addressable IDNet Communications Short Circuit Isolator

Part number / SKU
4090-9116
  • Short circuit isolator
  • One address per device
  • 4 in square box
  • UL, ULC, CSFM, FM

Works with: Simplex 4007ES panel, Simplex 4008 panel, Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel, 4090-9813 adapter plate for 4 11/16 in box and 4 more models Confirmed by the manufacturer


$55.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4090-9116 is a dual-port, bi-directional IDNet communications short circuit isolator for Simplex addressable fire alarm loops. Either port can be the input or output, and the ports separate automatically when a communications short occurs, so a short on one floor or section does not take down the rest of the IDNet wiring.

The isolator powers up in isolation mode and connects only when the panel directs it and the output wiring is acceptable. It reports to the panel when isolated and identifies the addresses that stop communicating, and it can be opened manually from the panel to locate shorts or earth faults. It uses one address and one unit load from the IDNet SLC, with screw terminals for 18 to 14 AWG. Up to 10 ohms of line resistance (780 ft of 18 AWG) is allowed between the panel and an isolator or between two isolators.

The black thermoplastic module measures 4 1/8 x 4 1/8 x 1 3/8 in (105 x 105 x 35 mm) and mounts in a 4 in square box, with a 4090-9813 adapter for 4 11/16 in boxes. A blank double gang cover or a 4090-9801 (semi-flush) or 4090-9802 (surface) trim plate with LED viewing window can be used.

  • Best for: separating floors or sections of an IDNet loop so a wiring short affects only the isolated section.
  • System fit: Simplex 4007ES, 4008, 4010ES, 4100ES and 4100U panels with IDNet, IDNet+, IDNet 1+, IDNet 2 or IDNet 2+2 outputs.
  • Important to know: it is not compatible with the 4100-3103 panel mounted quad isolator; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Automatic isolation

    ports separate on a communications short so the rest of the loop keeps working.

  • Fault location

    reports which addresses stopped communicating and can be opened from the panel to find earth faults.

  • Bi-directional

    either port can serve as input or output on Class A or Class B wiring.

  • Light load

    one address and one unit load from the IDNet SLC.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4090-9116
General
Brand Simplex
Model 4090-9116
Device Type Short circuit isolator
Device Type Detail Addressable IDNet communications
Ports Dual-port, bi-directional
Addressing One address per device
Address Setting 8-position DIP switch under resealable label; 1 to 250 (4100ES, 4100U, 4010ES), 1 to 200 (4008)
Power-Up Starts in isolation mode; connects on panel command
Wiring Class Class A or Class B
LED Status LED flashes to show communications
Electrical
Power One unit load from the IDNet SLC
Wire Terminals Screw terminals, 18 to 14 AWG (0.82 to 2.08 mm2)
Wiring Distance 2,500 ft (762 m) from panel; 10,000 ft (3,048 m) total including T-taps
Max Line Resistance 10 ohms panel to isolator or between isolators (780 ft / 238 m of 18 AWG)
Surge Protection Compatible with 2081-9044 overvoltage protector
Physical
Dimensions 4 1/8 in H x 4 1/8 in W x 1 3/8 in D (105 x 105 x 35 mm)
Housing Black thermoplastic on metal mounting plate
Mount Type 4 in square box
Mount Type Detail 4 in (102 mm) square box; 4090-9813 adapter for 4 11/16 in box
Covers Double gang blank cover, or 4090-9801 (semi-flush) / 4090-9802 (surface) trim plate with LED viewing window
Environmental
Operating Temperature 32 to 120 F (0 to 49 C), indoor use only
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM
Approval Details UL listed to Standard 864; UL, ULC, CSFM listed; FM Approved
CSFM Listing 7300-0026:252
