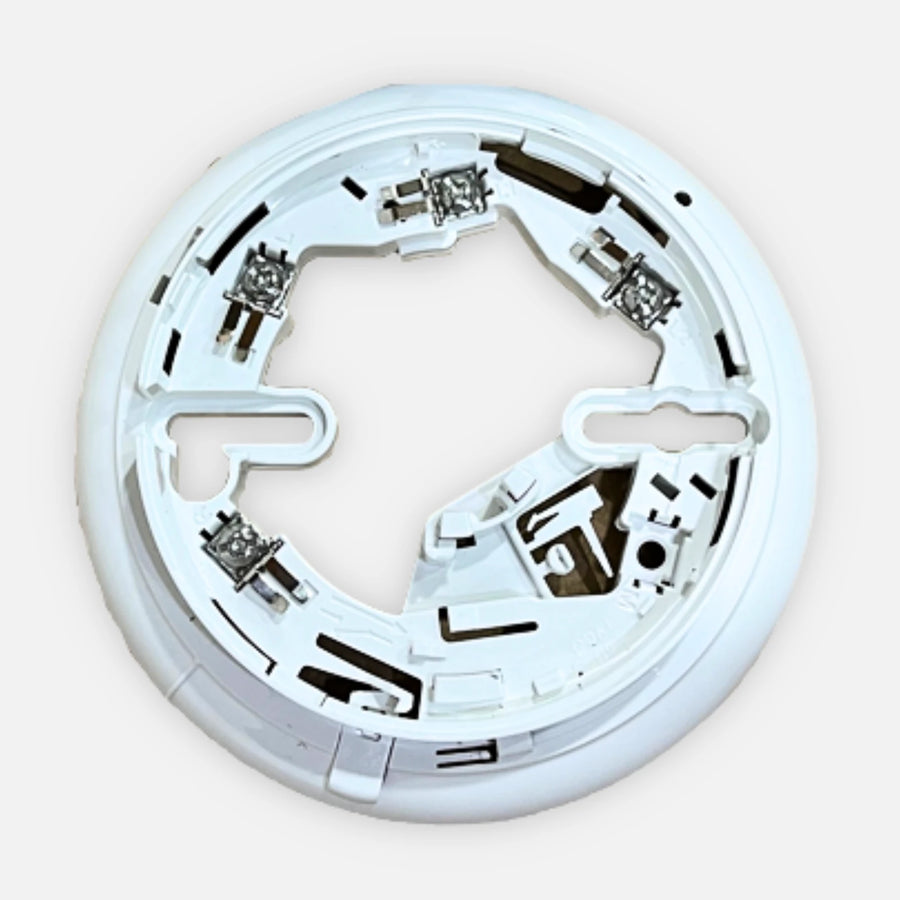

Simplex 4098-5207 5 in MX Addressable Sensor Base with Remote LED Output

Part number / SKU
4098-5207
  • 5 in addressable sensor base
  • Addressable
  • Ceiling and wall back boxes

Works with: Simplex 4100ES panel with MX loop module, Simplex 4010ES panel with MX loop module, Simplex 4100U panel with MX loop module, 4098-5201 MX heat sensor, 2098-9808 remote LED alarm indicator Confirmed by the manufacturer


$18.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4098-5207 is a 5 in addressable sensor base for Simplex MX technology sensors. It connects the sensor to the MX loop, which uses one address per sensor base, and provides connections for a 2098-9808 remote LED alarm indicator.

The base has an anti-tamper feature, a park position for commissioning and service, an address flag holder and an integral breakout locking key, and it fits a range of standard ceiling and wall mount back boxes. Terminal blocks accept 20 to 14 AWG (0.5 to 2.5 mm2) wire. MX devices are rated for indoor use up to 93% RH at 90 F (32 C). The base is used on Simplex 4100ES, 4010ES and 4100U panels fitted with an MX loop module.

The 2098-9808 remote LED shows a red alarm indication away from the sensor, draws 1 mA, uses 18 AWG color-coded leads and mounts to a standard US single-gang box. The 4098-5201 heat sensor at its 200 F setting may only be used with the 4098-5207, 4098-5208 or 4098-5210 bases.

  • Best for: mounting Simplex MX technology smoke, heat and multi-sensors on an MX loop, with an optional remote alarm LED.
  • System fit: Simplex 4100ES, 4010ES and 4100U panels with an MX loop module; MX technology sensors such as the 4098-5201 heat sensor.
  • Important to know: this base is for MX loop sensors, not IDNet TrueAlarm sensors; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Remote LED output

    connects a 2098-9808 remote LED alarm indicator.

  • Service features

    park position for commissioning and an anti-tamper facility.

  • Easy identification

    built-in address flag holder.

  • Broad box fit

    fits a variety of standard ceiling and wall mount back boxes.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-5207
General
Brand Simplex
Model 4098-5207
Series MX technology addressable devices
Device Type 5 in addressable sensor base
Addressing Addressable
Addressing Detail One MX loop address per sensor base
Features Remote LED connections, anti-tamper, park position, address flag holder, integral breakout locking key
Installation Instructions 579-936
Electrical
Power and Communications MX loop
Wire Terminals 20 to 14 AWG (0.5 to 2.5 mm2)
Remote LED 2098-9808; 1 mA; 18 AWG color-coded leads
Physical
Mount Type Ceiling and wall back boxes
Mount Type Detail Standard ceiling and wall mount back boxes
Remote LED Mounting Standard US single-gang box
Environmental
Humidity Up to 93% RH at 90 F (32 C), indoor use only
