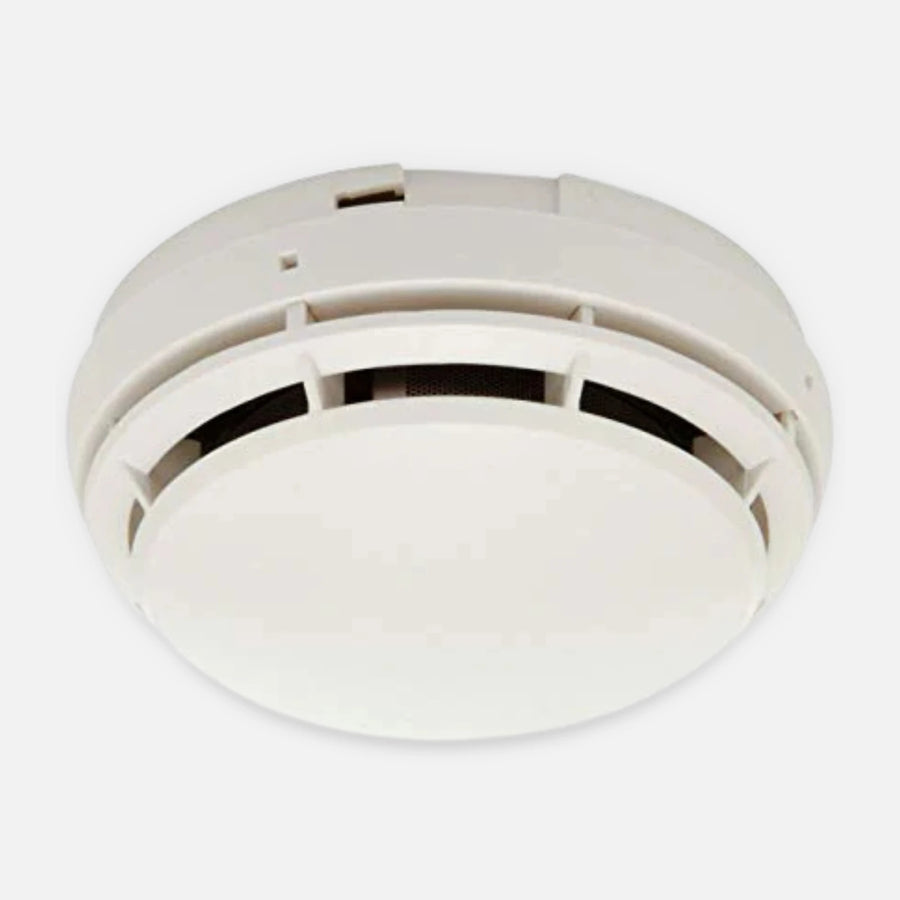

Simplex 4098-9714 TrueAlarm Addressable Photoelectric Smoke Sensor Head

Part number / SKU
4098-9714
  • Photoelectric smoke sensor head
  • Photoelectric
  • Addressable
  • TrueAlarm sensor base
  • UL, ULC, FM, CSFM

Works with: Simplex 4007ES panel, Simplex 4010 panel, Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel, Simplex 4008 panel (reduced features) and 10 more models Confirmed by the manufacturer


$34.07

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4098-9714 is a TrueAlarm analog photoelectric smoke sensor for Simplex addressable fire alarm systems. It mounts on a TrueAlarm sensor base and reports its analog smoke reading to the panel over IDNet or MAPNET II communications, auto-selected, using one address per base. Sensitivity is selected at the fire alarm control panel, including special clean-area levels of 0.2%, 0.5% and 1% per foot.

The sensor uses a pulsed infrared LED with a silicon photodiode receiver and is rated for air velocity from 0 to 4,000 ft/min (0 to 1,220 m/min). It operates from 15 to 122 F (-9 to 50 C), with a UL listed range of 32 to 100 F (0 to 38 C), and 10 to 95% RH. With a base it measures 4 7/8 in (124 mm) in diameter and 2 1/8 in (54 mm) high, in frost white. NFPA 72 guidance allows 30 ft (9.1 m) spacing on smooth ceilings as a guide.

Compatible bases include the 4098-9792 standard base, the 4098-9789 base with remote LED or relay connections, and the 4098-9791 and 4098-9780 supervised relay bases. The same sensor is factory installed in the 4098-9755 duct sensor housing.

  • Best for: addressable smoke detection on Simplex TrueAlarm systems, including clean areas that need tighter sensitivity.
  • System fit: Simplex 4007ES, 4010, 4010ES, 4100ES and 4100U on IDNet (4008 with reduced features); 4020, 4100, 4120 and 2120 CDT on MAPNET II.
  • Important to know: the sensor needs a TrueAlarm base, ordered separately; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Panel-set sensitivity

    sensitivity is selected at the panel, with special levels of 0.2%, 0.5% and 1% per foot for clean areas.

  • Analog reporting

    the panel receives the actual smoke reading over IDNet or MAPNET II.

  • High airflow rating

    rated for 0 to 4,000 ft/min air velocity.

  • Listed sensor

    UL 268 and ULC-S529, FM Approved, with NYC MEA acceptance.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-9714
General
Brand Simplex
Model 4098-9714
Series TrueAlarm analog sensors
Device Type Photoelectric smoke sensor head
Detection Type Photoelectric
Detection Type Detail Pulsed infrared LED, silicon photodiode receiver
Addressing Addressable
Addressing Detail One address per base
Communications IDNet or MAPNET II, auto-selected
Sensitivity Selected at the panel; special clean-area levels 0.2%, 0.5%, 1% per ft
Spacing Guide 30 ft (9.1 m) on smooth ceilings (NFPA 72 guidance)
Mount Type TrueAlarm sensor base
Mount Type Detail Ordered separately
Physical
Dimensions 4 7/8 in (124 mm) diameter x 2 1/8 in (54 mm) high, with base
Color Frost white
Environmental
Operating Temperature 15 to 122 F (-9 to 50 C)
UL Listed Temperature 32 to 100 F (0 to 38 C)
Storage Temperature 0 to 140 F (-18 to 60 C)
Humidity 10 to 95% RH
Air Velocity 0 to 4,000 ft/min (0 to 1,220 m/min)
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM
Approval Details UL 268; ULC-S529; FM Approved; CSFM
NYC MEA35-93E
