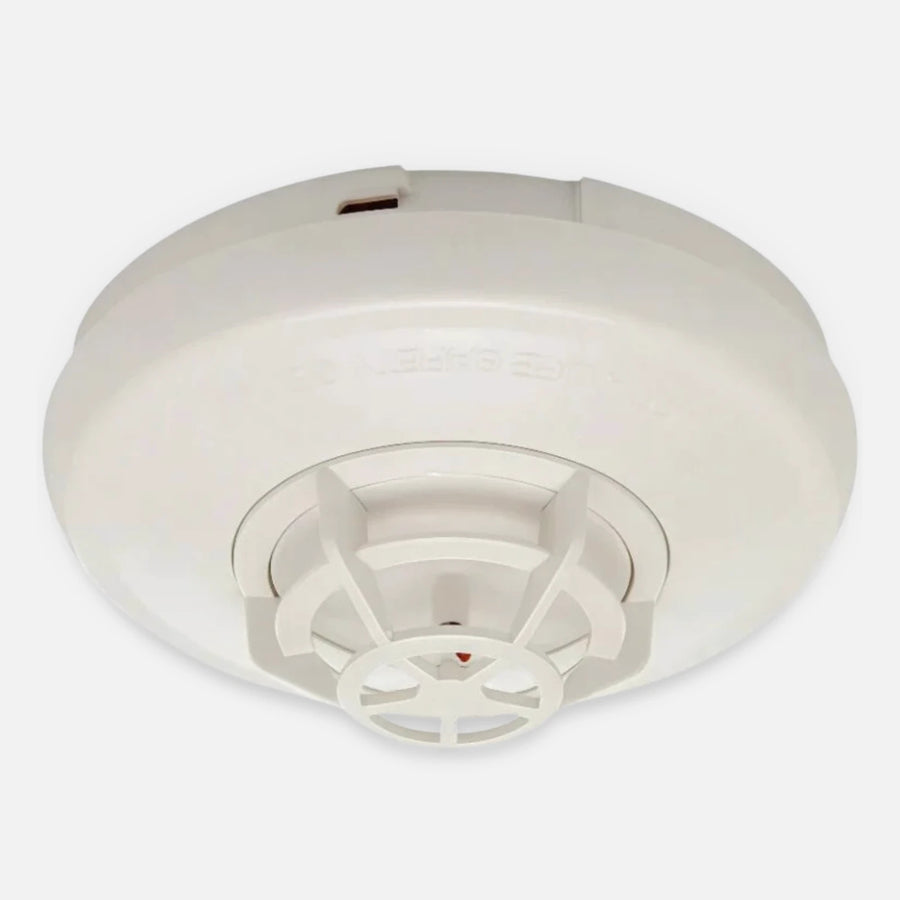

Simplex 4098-9733 TrueAlarm Addressable Heat Sensor, 135/155 F Fixed and Rate-of-Rise

Part number / SKU
4098-9733
  • Heat sensor head
  • Fixed temperature, rate-of-rise
  • Addressable
  • TrueAlarm sensor base
  • UL, ULC, FM, CSFM

Works with: Simplex 4007ES panel, Simplex 4010 panel, Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel, Simplex 4008 panel (reduced features) and 9 more models Confirmed by the manufacturer


$27.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4098-9733 is a TrueAlarm analog heat sensor for Simplex addressable fire alarm systems. It mounts on a TrueAlarm sensor base and reports temperature to the panel over IDNet or MAPNET II communications, auto-selected, with one address per base. The panel sets it for a fixed temperature alarm at 135 F (57.2 C) or 155 F (68 C), rate-of-rise at 15 F or 20 F per minute, and utility temperature monitoring from 32 to 155 F (0 to 68 C).

UL and ULC spacing is 60 x 60 ft at the 135 F setting and 40 x 40 ft at the 155 F setting. FM spacing is 20 x 20 ft for fixed temperature only and 50 x 50 ft for fixed temperature with rate-of-rise. The sensor operates from 32 to 122 F (0 to 50 C), with a UL listed range of 32 to 100 F (0 to 38 C), and 10 to 95% RH. With a base it measures 4 7/8 in (124 mm) in diameter and 2 3/8 in (60 mm) high, in frost white.

  • Best for: addressable heat detection on Simplex TrueAlarm systems, and areas where temperature monitoring is wanted alongside fire detection.
  • System fit: Simplex 4007ES, 4010, 4010ES, 4100ES and 4100U on IDNet (4008 with reduced features); 4020, 4100, 4120 and 2120 CDT on MAPNET II.
  • Important to know: the sensor needs a TrueAlarm base, ordered separately; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Selectable response

    fixed 135 F or 155 F, and rate-of-rise at 15 F or 20 F per minute, set at the panel.

  • Temperature monitoring

    utility monitoring from 32 to 155 F (0 to 68 C).

  • Wide spacing

    60 x 60 ft UL/ULC spacing at the 135 F setting.

  • Listed sensor

    UL 521 and ULC-S530, FM Approved, with NYC MEA acceptance.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-9733
General
Brand Simplex
Model 4098-9733
Series TrueAlarm analog sensors
Device Type Heat sensor head
Detection Type Fixed temperature, rate-of-rise
Detection Type Detail Fixed temperature and rate-of-rise heat
Addressing Addressable
Addressing Detail One address per base
Communications IDNet or MAPNET II, auto-selected
Fixed Temperature 135 F (57.2 C) or 155 F (68 C), panel selected
Rate-of-Rise 15 F or 20 F per minute, panel selected
Utility Monitoring 32 to 155 F (0 to 68 C)
UL/ULC Spacing 60 x 60 ft at 135 F; 40 x 40 ft at 155 F
FM Spacing 20 x 20 ft fixed temperature only; 50 x 50 ft fixed with rate-of-rise
Mount Type TrueAlarm sensor base
Mount Type Detail Ordered separately
Physical
Dimensions 4 7/8 in (124 mm) diameter x 2 3/8 in (60 mm) high, with base
Color Frost white
Environmental
Operating Temperature 32 to 122 F (0 to 50 C)
UL Listed Temperature 32 to 100 F (0 to 38 C)
Storage Temperature 0 to 140 F (-18 to 60 C)
Humidity 10 to 95% RH
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM
Approval Details UL 521; ULC-S530; FM Approved; CSFM
NYC MEA35-93E
