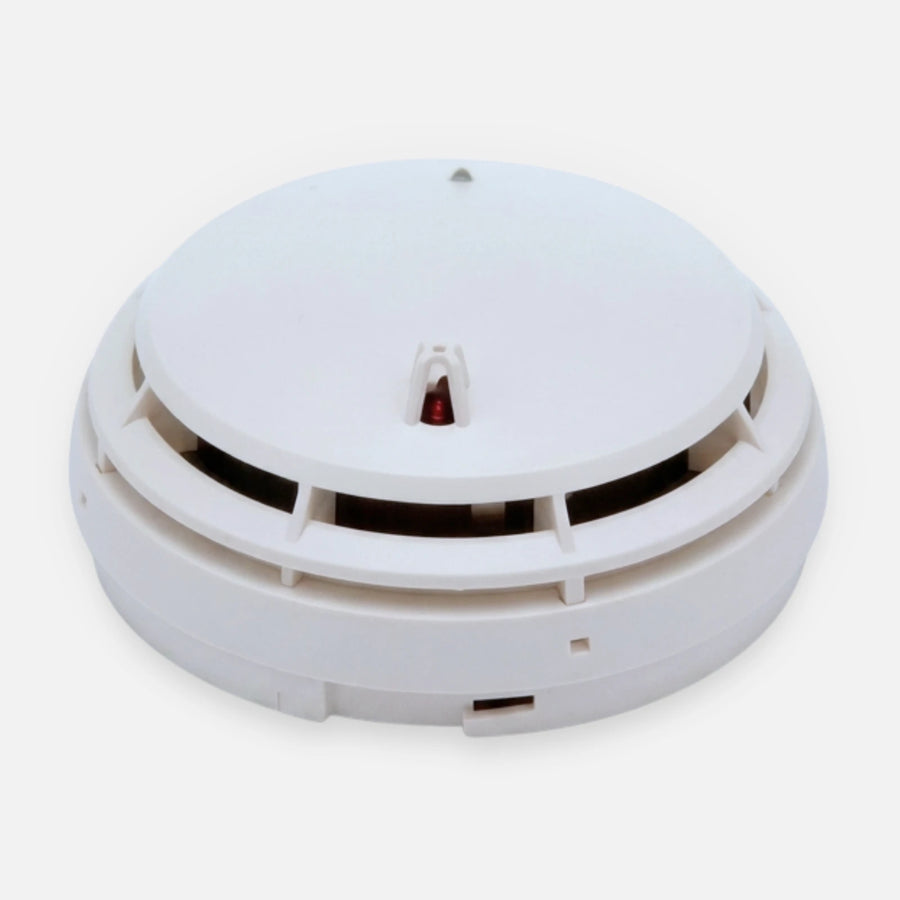

Simplex 4098-9764 TrueAlarm Multi-Sensor, Photoelectric Smoke and Heat

Part number / SKU
4098-9764
  • Multi-sensor
  • Photoelectric smoke plus heat
  • Addressable
  • TrueAlarm sensor base

Works with: Simplex 4007ES panel, Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel, 4098-9792 standard sensor base, 4098-9789 sensor base with remote LED/relay connections and 8 more models Confirmed by the manufacturer


$39.99

Special order· Lead time confirmed by our team after you order.

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4098-9764 is a TrueAlarm multi-sensor that combines a photoelectric smoke sensor and a fast response thermistor heat sensor in one head. The fire alarm panel evaluates fixed temperature, rate-of-rise, photoelectric smoke and TrueSense correlation of smoke and heat activity at the same location. It communicates over two-wire IDNet with one address per base on Simplex 4007ES, 4010ES, 4100ES and 4100U panels.

Smoke sensitivity runs from 0.2% to 3.1% per foot obscuration, with fixed special-application settings of 0.2%, 0.5% and 1% per foot. Heat sensing provides a 135 F (57.2 C) fixed temperature alarm, rate-of-rise at 15 F (8.3 C) or 20 F (11.1 C) per minute, and utility monitoring from 32 to 122 F (0 to 50 C). The sensor operates from 15 to 122 F (-9 to 50 C), UL listed 32 to 100 F (0 to 38 C), at 10 to 95% RH and 0 to 4,000 ft/min air velocity, in frost white.

It mounts on TrueAlarm bases including the 4098-9792 standard base, 4098-9789 remote LED or relay base, 4098-9791 and 4098-9780 relay bases, 4098-9793 isolator base and 4098-9794 sounder base. Boxes are 4 in square or octagonal, 1 1/2 in or 2 1/8 in deep, with a 1 1/2 in extension ring for a locally mounted relay.

  • Best for: addressable areas where combined smoke and heat analysis at one point is wanted on Simplex TrueAlarm systems.
  • System fit: Simplex 4007ES, 4010ES, 4100ES and 4100U panels on IDNet; TrueAlarm sensor bases.
  • Important to know: the sensor needs a TrueAlarm base, ordered separately; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Two sensors in one

    photoelectric smoke and thermistor heat sensing share one head and one address.

  • TrueSense correlation

    the panel combines smoke and heat activity at the same location.

  • Selectable heat response

    135 F fixed and 15 F or 20 F per minute rate-of-rise, set at the panel.

  • High airflow rating

    rated for 0 to 4,000 ft/min (0 to 1,220 m/min) air velocity.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-9764
General
Brand Simplex
Model 4098-9764
Series TrueAlarm multi-point analog sensing
Device Type Multi-sensor
Device Type Detail Photoelectric smoke and heat
Detection Type Photoelectric smoke plus heat
Detection Type Detail Photoelectric light scattering smoke plus thermistor heat; TrueSense correlation
Addressing Addressable
Addressing Detail One address per base
Communications IDNet, two-wire
Smoke Sensitivity 0.2% to 3.1% per ft obscuration
Fixed Smoke Settings 0.2%, 0.5%, 1% per ft (special applications)
Fixed Temperature 135 F (57.2 C)
Rate-of-Rise 15 F (8.3 C) or 20 F (11.1 C) per minute
Utility Monitoring 32 to 122 F (0 to 50 C)
Spacing Guide 30 ft (9.1 m) on smooth ceilings (NFPA 72 guidance)
Mount Type TrueAlarm sensor base
Mount Type Detail Ordered separately
Physical
Color Frost white
Mounting Box 4 in square or octagonal, 1 1/2 in or 2 1/8 in deep; single-gang 2 1/8 in deep for flush mounting without local relay
Mounting Box with Relay 1 1/2 in extension ring
Environmental
UL Listed Temperature 32 to 100 F (0 to 38 C)
Operating Temperature 15 to 122 F (-9 to 50 C)
Storage Temperature 0 to 140 F (-18 to 60 C)
Humidity 10 to 95% RH
Air Velocity 0 to 4,000 ft/min (0 to 1,220 m/min)
