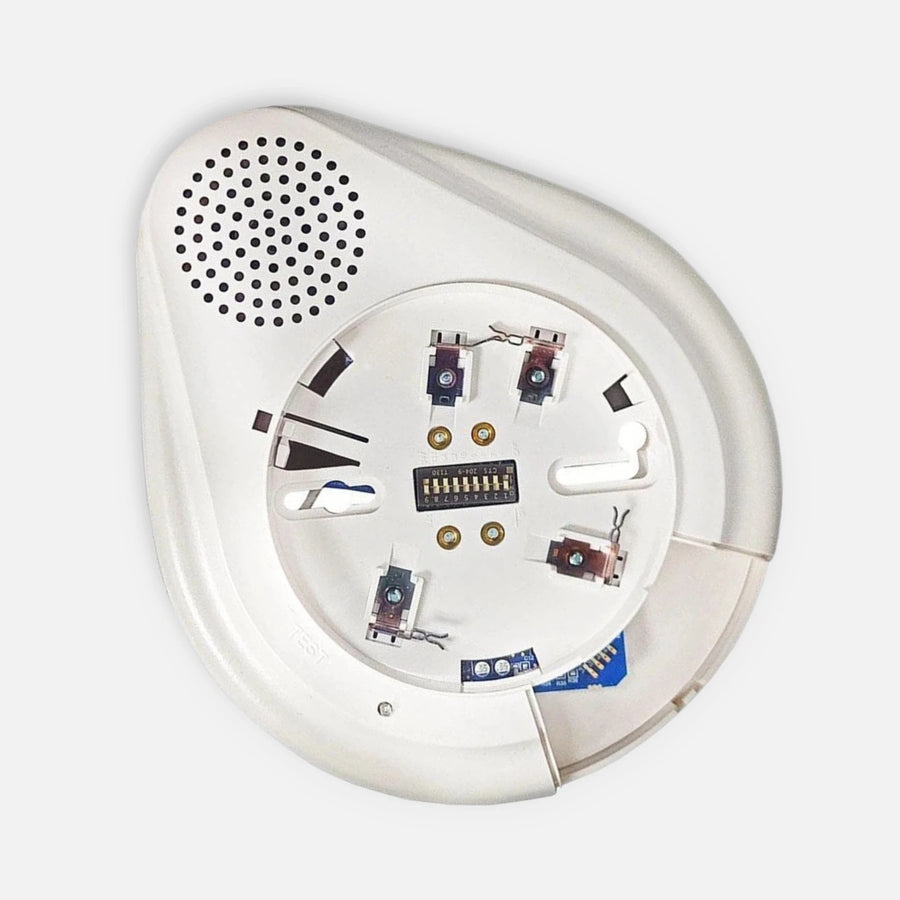

Simplex 4098-9773 TrueAlarm CO Sensor Base with 520 Hz Sounder

Part number / SKU
4098-9773
  • CO sensor base
  • Carbon monoxide plus smoke/heat
  • Addressable
  • Ceiling, flush mounting required
  • 16 to 32 VDC from NAC

Works with: Simplex 4007ES panel (software 2.01.02 or higher), Simplex 4010ES panel (software 2.01.02 or higher), Simplex 4100ES panel (software 2.01.02 or higher), Simplex 4100U panel (software 12.05 or higher), 4098-9714 photoelectric sensor, 4098-9764 multi-sensor and 3 more models Confirmed by the manufacturer


$162.96

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4098-9773 is a TrueAlarm sensor base that combines a carbon monoxide sensor with a 520 Hz sounder. It mounts a TrueAlarm photoelectric, multi-sensor or heat sensor head, ordered separately, and uses one IDNet address per base, reporting up to seven sub-points on 4007ES, 4010ES and 4100ES panels. With a temporal code module it can sound Temporal 3 for fire and Temporal 4 for toxic CO alarms.

The sounder runs on 16 to 32 VDC (24 VDC nominal) from a NAC and draws 129 mA at 16 V or 115 mA at 18 V in 520 Hz mode, with a broadband option. Supervision is selectable for continuous 24 VDC power or unsupervised when the NAC provides supervision, and communications draw 1 mA typical from IDNet. The CO sensor has a 10 year operating life (5 years on 4100U panels), with expiration notices at less than 12 months and less than 6 months, and alarms within 60 to 240 minutes at 70 ppm, 10 to 50 minutes at 150 ppm and 4 to 15 minutes at 400 ppm.

The base is frost white, needs flush mounting on a 4 in octagonal or square box 1 1/2 in deep or a single-gang box 2 1/8 in deep, and uses the 4098-9863 adapter plate for 4 in square boxes. It operates 32 to 100 F (0 to 38 C) UL listed, 10 to 95% RH, with 18 to 14 AWG wiring.

  • Best for: locations that need smoke or heat detection, CO detection and a 520 Hz audible signal at one ceiling point on Simplex TrueAlarm systems.
  • System fit: Simplex 4007ES, 4010ES and 4100ES (software 2.01.02 or higher) and 4100U (12.05 or higher); 4098-9714, 4098-9764 or 4098-9733 sensors.
  • Important to know: the CO sensor must be replaced at end of life, and the base needs a sensor head and NAC power; installation must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Three functions at one point

    sensor base, CO detection and 520 Hz sounder in one ceiling device.

  • Coded signals

    Temporal 3 for fire and Temporal 4 for CO with the temporal code module.

  • Life tracking

    10 year CO sensor life with expiration notices at 12 and 6 months.

  • Selectable supervision

    supervised for continuous 24 VDC, or unsupervised when the NAC supervises.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-9773
General
Brand Simplex
Model 4098-9773
Series TrueAlarm ES analog sensing
Device Type CO sensor base
Device Type Detail With 520 Hz sounder
Detection Type Carbon monoxide plus smoke/heat
Detection Type Detail Carbon monoxide (base) plus mounted smoke or heat sensor
Addressing Addressable
Addressing Detail One IDNet address per base
Sub-Points Up to 7 on 4007ES/4010ES/4100ES; 3 with multi-sensor or 2 with other sensors on 4100U
Compatible Sensors 4098-9714 photoelectric, 4098-9764 multi-sensor, 4098-9733 heat
Sounder Tone 520 Hz low frequency; broadband option
Coding Temporal 3 (fire) and Temporal 4 (CO) with temporal code module
CO Sensor Life 10 years; 5 years on 4100U
CO Expiration Notices Less than 12 months and less than 6 months
CO Alarm Time 70 ppm: 60 to 240 min; 150 ppm: 10 to 50 min; 400 ppm: 4 to 15 min
CO No-Alarm Level 30 ppm for 30 days
Electrical
Operating Voltage 16 to 32 VDC from NAC
Operating Voltage Detail 24 VDC nominal
Alarm Current, 520 Hz 129 mA at 16 V; 115 mA at 18 V
Alarm Current, Broadband 139 mA at 16 V; 125 mA at 18 V
Communications Current 1 mA typical from IDNet
Supervision Selectable: supervised for continuous 24 VDC, or unsupervised with NAC supervision
Wire Gauge 18 to 14 AWG (0.82 to 2.08 mm2); remote LED leads 18 AWG
Physical
Mount Type Ceiling, flush mounting required
Mounting Box 4 in octagonal or square, 1 1/2 in deep; or single-gang, 2 1/8 in deep
Adapter Plate 4098-9863 for 4 in square boxes
Color Frost white
Environmental
UL Listed Temperature 32 to 100 F (0 to 38 C)
Operating Temperature with Sensors 32 to 122 F (0 to 50 C) with 4098-9733, 4098-9714 or 4098-9764
Humidity 10 to 95% RH
Air Velocity 0 to 1,000 ft/min (0 to 305 m/min) with photoelectric or multi-sensor
