Simplex 4098-9789 TrueAlarm Sensor Base with Remote LED or Relay Output

Part number / SKU
4098-9789
  • Sensor base
  • Addressable
  • UL, ULC, CSFM, FM

Works with: Simplex 4007ES panel, Simplex 4010 panel, Simplex 4010ES panel, Simplex 4100ES panel, Simplex 4100U panel, Simplex 4008 panel (reduced features) and 9 more models Confirmed by the manufacturer


$31.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

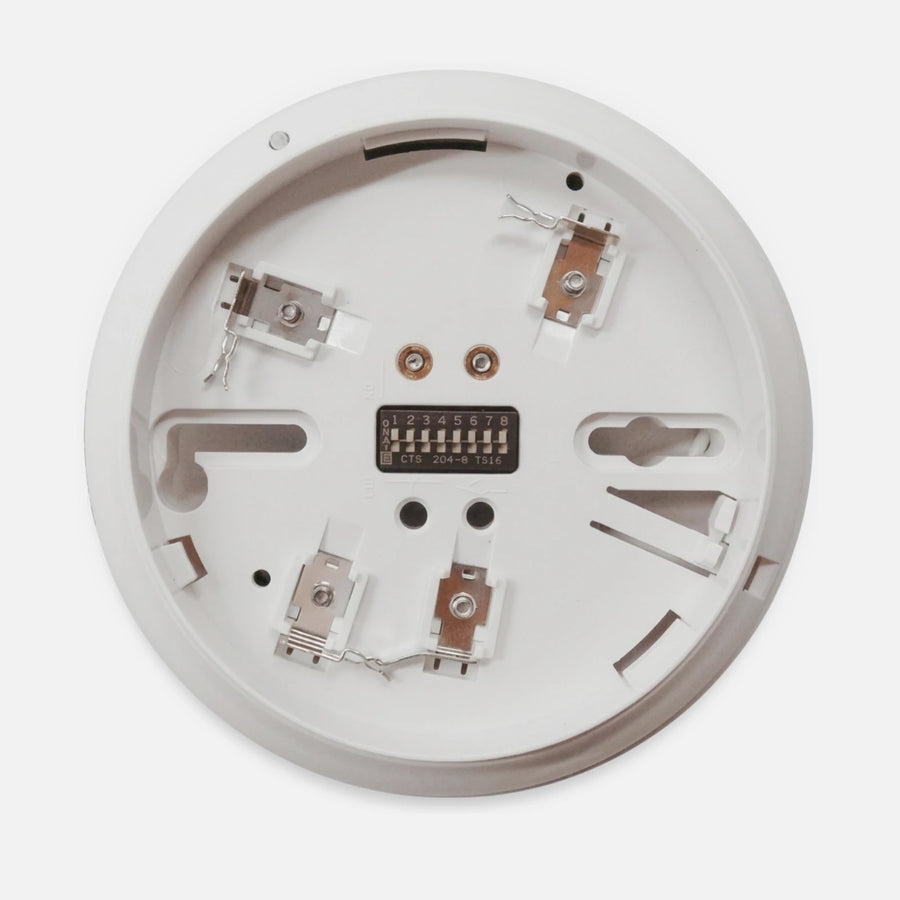

The Simplex 4098-9789 is a TrueAlarm sensor base with wired connections for a 2098-9808 remote red LED alarm indicator or a 4098-9822 unsupervised relay. It mounts TrueAlarm photoelectric, heat and multi-sensors and connects them to IDNet or MAPNET II communications, auto-selected, with one address per base.

Communication terminals accept 18 to 14 AWG wire, and remote LED and relay connections use color-coded 18 AWG leads. The remote LED draws 1 mA typical. The optional 4098-9822 relay mounts in the base electrical box, tracks the base LED, has DPDT contacts rated 2 A at 28 VDC (power-limited) or 1/2 A at 120 VAC (non-power-limited) and needs a separate 18 to 32 VDC coil supply. The base is 6 3/8 in (162 mm) in diameter.

It mounts on a 4 in octagonal or 4 in square box, with the depth set by the number and size of wires; with the relay in the box, add a 1 1/2 in extension ring. The 4098-9832 adapter plate is needed for surface or semi-flush mounting on a 4 in square box or surface mounting on a 4 in octagonal box.

  • Best for: TrueAlarm sensors above ceilings, in closed rooms or other places where a remote alarm LED or a relay output is needed.
  • System fit: Simplex 4007ES, 4010, 4010ES, 4100ES and 4100U on IDNet (4008 with reduced features); 4020, 4100, 4120 and 2120 CDT on MAPNET II.
  • Important to know: sensor heads, remote LED and relay are ordered separately; installation must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Remote indication

    wires to a 2098-9808 remote red LED so an alarm can be seen away from the sensor.

  • Relay option

    accepts a 4098-9822 DPDT relay that tracks the base LED.

  • Low LED current

    the remote LED draws 1 mA typical.

  • Retrofit friendly

    the 4098-9832 adapter plate fits surface boxes and replaces existing 6 3/8 in bases.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-9789
General
Brand Simplex
Model 4098-9789
Series TrueAlarm
Device Type Sensor base
Device Type Detail With remote LED or unsupervised relay connections
Addressing Addressable
Addressing Detail One address per base
Communications IDNet or MAPNET II, auto-selected
Compatible Sensors 4098-9714 photoelectric, 4098-9733 heat, 4098-9754 and 4098-9764 multi-sensors
Electrical
Communication Terminals 18 to 14 AWG
Remote LED and Relay Leads Color-coded 18 AWG
Remote LED Current 1 mA typical
4098-9822 Relay Contacts DPDT; 2 A at 28 VDC power-limited; 1/2 A at 120 VAC non-power-limited
4098-9822 Coil 18 to 32 VDC (24 VDC nominal), external supply
Physical
Base Diameter 6 3/8 in (162 mm)
Mounting Box 4 in octagonal or 4 in square; depth per wire count and size
Mounting Box with Relay 4 in box with 1 1/2 in extension ring
Adapter Plate 4098-9832 for surface or semi-flush 4 in square, or surface 4 in octagonal box
Color Frost white
Environmental
UL Listed Temperature 32 to 100 F (0 to 38 C)
Storage Temperature 0 to 140 F (-18 to 60 C)
Humidity 10 to 95% RH
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM
Approval Details UL, ULC and CSFM listed; FM Approved
NYC MEA35-93E
