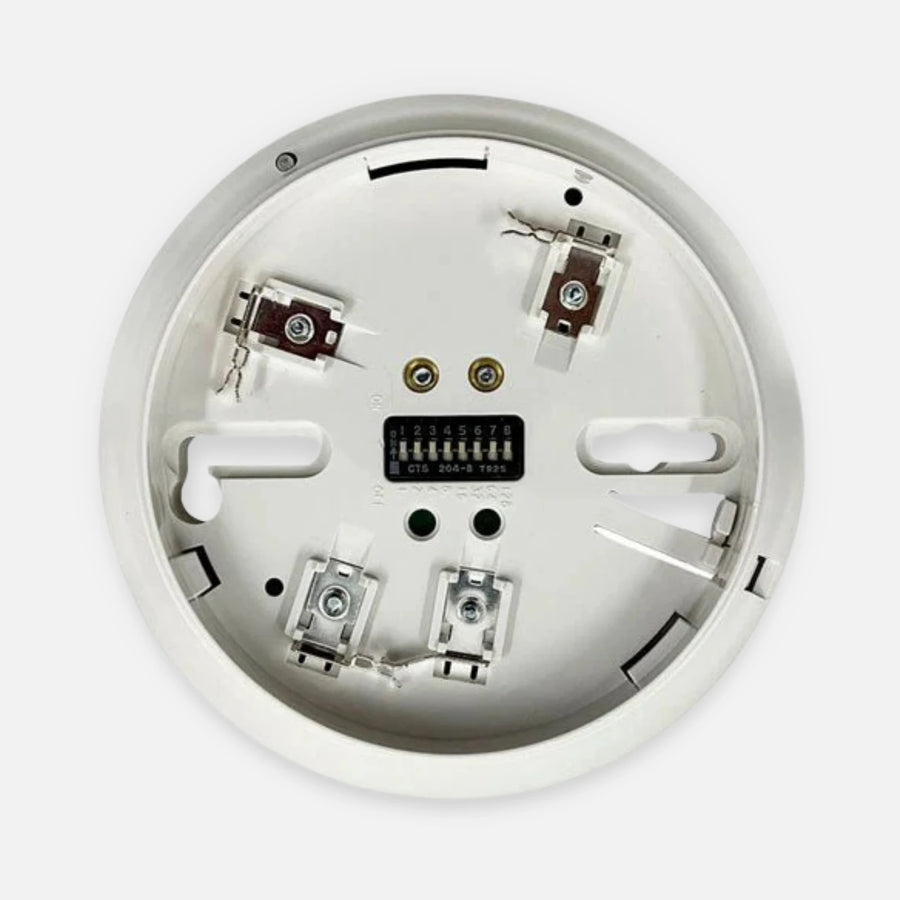

Simplex 4098-9792 TrueAlarm Standard Sensor Base, IDNet and MAPNET II

Part number / SKU
4098-9792
  • Standard sensor base, no options
  • Addressable
  • 4 in octagonal or square box
  • UL, ULC, CSFM, FM

Works with: TrueAlarm photoelectric sensor 4098-9714, TrueAlarm heat sensor 4098-9733, 4098-9832 adapter plate, Simplex 4007ES panel, Simplex 4010 panel, Simplex 4010ES panel and 5 more models Confirmed by the manufacturer


$41.29

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4098-9792 is the standard TrueAlarm sensor base, with no options, for 4098-9714 photoelectric and 4098-9733 heat sensors. The base holds the addressable electronics that monitor the detachable sensor, digitize its output and send it to the panel every four seconds over IDNet or MAPNET II, auto-selected, using one address per base.

The address is set with a DIP switch under the sensor, accessible from the front, so it stays with its programmed location when the sensor is changed. An integral red LED pulses to show power and stays on for alarm or trouble, the sensor locks in with an anti-tamper design, and a magnet operates the functional test. Field wiring lands on screw terminals for 18 to 14 AWG (0.82 to 2.08 mm2) wire.

The base mounts to a 4 in octagonal or 4 in square box at least 1-1/2 in deep, or a single-gang box at least 2 in deep. The 4098-9832 adapter plate is required for surface or semi-flush mounting to a 4 in square box and for surface mounting to a 4 in octagonal box. The 4098-9792 has no relay or remote LED connections; the 4098-9789 base provides them.

  • Best for: new installs, expansions and replacements of TrueAlarm photoelectric and heat sensors on Simplex addressable loops.
  • System fit: Simplex 4007ES, 4010, 4010ES, 4100ES and 4100U (IDNet), 4008 with reduced features, and MAPNET II panels (4020, 4100, 4120, 2120 CDT).
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Swap sensors, keep the address

    the DIP switch address stays in the base when the sensor is replaced.

  • Two protocols

    auto-selects IDNet or MAPNET II, one address per base.

  • Visible status

    the built-in LED pulses in normal service and stays on in alarm or trouble.

  • Common back boxes

    mounts to standard 4 in octagonal, 4 in square or single-gang boxes.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4098-9792
General
Brand Simplex
Model 4098-9792
Series TrueAlarm
Device Type Standard sensor base, no options
Addressing Addressable
Addressing Detail IDNet or MAPNET II auto-selected, one address per base
Address Setting DIP switch under the sensor, front accessible
Reporting Sensor output sent to the panel every four seconds
Indicator Integral red LED, pulses for power, steady for alarm or trouble
Compatible Sensors 4098-9714 photoelectric; 4098-9733 heat
Testing Magnetically operated functional test
Relay and Remote LED Not provided (use 4098-9789 base)
Color Frost white
Electrical
Wiring Screw terminals, 18 to 14 AWG (0.82 to 2.08 mm2)
Physical
Mount Type 4 in octagonal or square box
Mount Type Detail 4 in octagonal or 4 in square box, 1-1/2 in min depth; single-gang box, 2 in min depth
Adapter Plate 4098-9832 for surface or semi-flush 4 in square and surface 4 in octagonal boxes
Tamper Resistance Locking anti-tamper design
Environmental
UL Listed Temperature 32 to 100 F (0 to 38 C)
Operating Temperature 32 to 122 F (0 to 50 C) with heat sensor; 15 to 122 F (-9 to 50 C) with smoke sensor
Storage Temperature 0 to 140 F (-18 to 60 C)
Humidity 10 to 95% RH
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM
Approval Details UL Listed; ULC Listed; CSFM Listed; FM Approved
Standards UL 268 and ULC-S529 (smoke); UL 521 and ULC-S530 (heat)
NYC MEA35-93E
