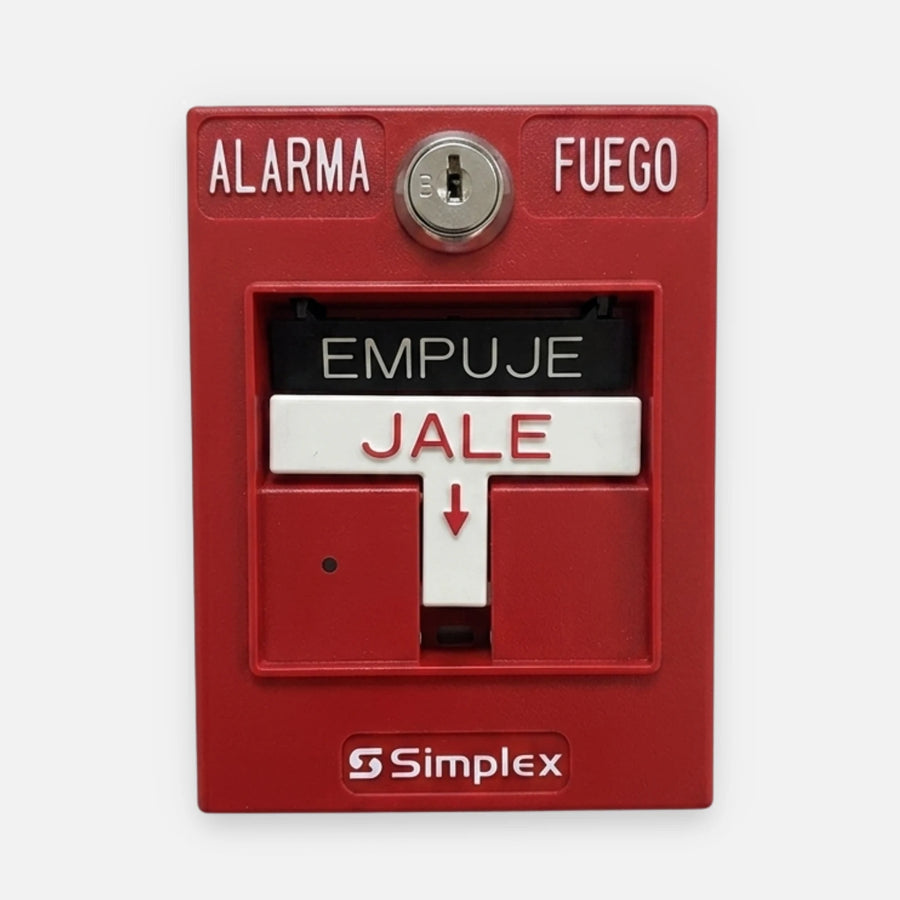

Simplex 4099-9006SP Addressable Double Action Push Manual Pull Station, Spanish

Part number / SKU
4099-9006SP
  • Addressable manual pull station
  • Addressable, IDNet or MAPNET II
  • Surface or semi-flush
  • UL Listed; FM Approved

Works with: Simplex 4007ES panel, Simplex 4008 panel, Simplex 4010 / 4010ES panels, Simplex 4100ES / 4100U panels, Simplex 4020 / 4100 / 4120 panels (MAPNET II), Series 2120 CDT (MAPNET II) and 6 more models Confirmed by the manufacturer


$67.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4099-9006SP is an addressable double action push manual pull station with Spanish housing text. It is powered by and communicates over an IDNet or MAPNET II loop on a single wire pair and uses one address, set by an 8-position DIP switch. It works with Simplex 4007ES, 4008, 4010, 4010ES, 4100ES, 4100U, 4020, 4100 and 4120 panels with IDNet or MAPNET II, and with Series 2120 CDTs with MAPNET II.

A spring-loaded plate marked PUSH must be pushed in before the lever can be pulled, which gives a two-step activation. An integral LED flashes during communications and stays on steady when the station is activated, and reset requires a key. The red housing measures 5 x 3-3/4 x 1 in, accepts 18 to 14 AWG wire on screw terminals, and mounts surface or semi-flush to standard electrical boxes; the 2975-9178 steel surface box is preferred and gives a NEMA 1 rating.

  • Best for: Simplex addressable fire alarm systems that need manual stations with Spanish wording.
  • System fit: Simplex 4007ES, 4008, 4010, 4010ES, 4100ES, 4100U, 4020, 4100 and 4120 panels with IDNet or MAPNET II.
  • Important to know: reset requires a key; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Point identification

    each station uses one IDNet or MAPNET II address set by DIP switch.

  • Status at the device

    the integral LED flashes during communications and stays on when activated.

  • Simple wiring

    power and communications share one wire pair on 18 to 14 AWG screw terminals.

  • Two-step activation

    the PUSH plate must be pressed before the lever can be pulled.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4099-9006SP
General
Brand Simplex
Model 4099-9006SP
Device Type Addressable manual pull station
Activation Double action, push then pull
Language Spanish
Housing Text ALARMA FUEGO EMPUJE JALE
Addressing Addressable, IDNet or MAPNET II
Addressing Detail One address per station
Address Setting 8-position DIP switch
Indicator Integral LED, flashes during communications, steady when activated
Reset Key reset
Electrical
Communications IDNet or MAPNET II loop, single wire pair (power and data)
Wiring Screw terminals, 18 to 14 AWG (0.82 to 2.08 mm²)
Physical
Housing Red with white raised lettering
Pull Lever White with red raised lettering
Material Lexan polycarbonate or equivalent
Dimensions 5 x 3-3/4 x 1 in (127 x 95 x 25 mm)
Mount Type Surface or semi-flush
Mount Type Detail To standard electrical boxes
Surface Back Box 2975-9178 steel (preferred); 2975-9022 cast aluminum
Enclosure Rating NEMA 1 with 2975-9178 back box
Environmental
Operating Temperature 32 to 120 °F (0 to 49 °C), indoor use only
Humidity Up to 93% RH at 100 °F (38 °C)
Listings and Approvals
Agency Approvals UL Listed; FM Approved
Standards UL Standard 38
