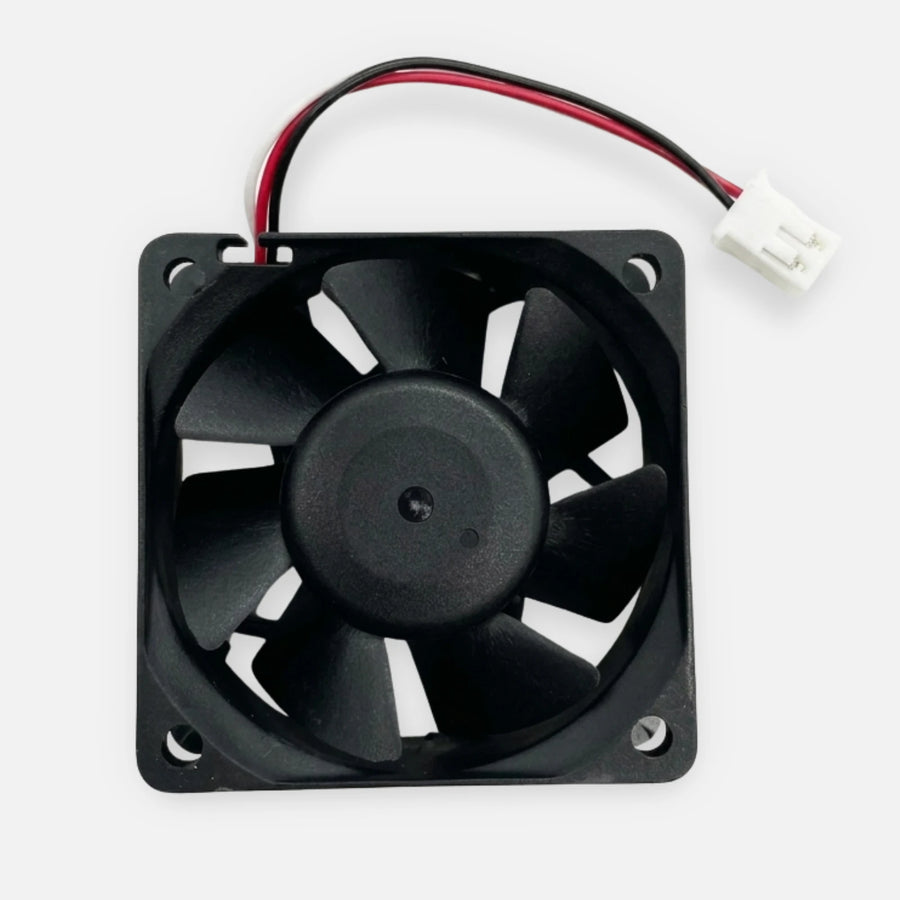

Simplex 4100-5131 ES-PS Fan Module for 4100ES Power Supplies

Part number / SKU
4100-5131
  • ES-PS power supply fan module

Works with: 4100-5401 ES-PS power supply, Simplex 4100ES fire control unit, 4100-9600 / 4100-9601 MINIPLEX transponders Confirmed by the manufacturer


$92.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4100-5131 is the fan module for ES-PS power supplies in 4100ES fire control units and MINIPLEX transponders. Simplex states that it allows more than one power supply to be installed in a single bay and may increase the total DC output capacity of each power supply.

An ES-PS supply is rated 9.5 A total DC output without the fan. With the fan it is rated 9.7 A when IDNAC modules are installed and 12.7 A without an IDNAC module. The fan module draws 0 mA in supervisory and 200 mA in alarm.

  • Best for: 4100ES cabinets with more than one power supply in a bay, or where more ES-PS output is needed.
  • System fit: Simplex ES-PS power supplies (4100-5401) in 4100ES fire control units and MINIPLEX transponders.
  • Important to know: include the 200 mA alarm draw in battery calculations; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • More supplies per bay

    allows more than one power supply in a single bay.

  • Higher output

    ES-PS output rises from 9.5 A to 12.7 A with the fan and no IDNAC module.

  • With IDNAC

    ES-PS output is 9.7 A with the fan and IDNAC modules installed.

  • No standby load

    0 mA supervisory draw; 200 mA only in alarm.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4100-5131
General
Brand Simplex
Model 4100-5131
Device Type ES-PS power supply fan module
Function Allows more than one power supply per bay; may increase total DC output per supply
System 4100ES fire control units, MINIPLEX transponders
Electrical
Supervisory Current 0 mA
Alarm Current 200 mA
ES-PS Output without Fan 9.5 A total DC
ES-PS Output with Fan and IDNAC 9.7 A total DC
ES-PS Output with Fan, no IDNAC 12.7 A total DC
Environmental
Operating Temperature 32 to 120 °F (0 to 49 °C), 4100ES fire control unit rating
Humidity Up to 93% RH, non-condensing at 90 °F (32 °C)
