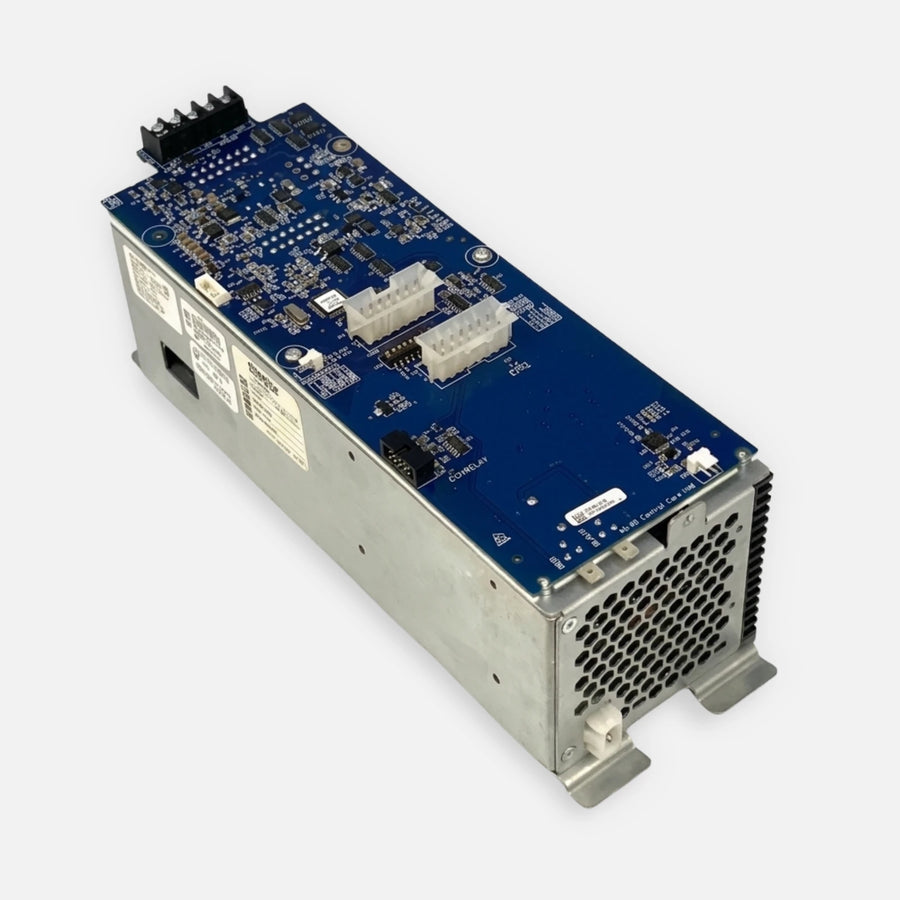

Simplex 4100-5401 ES-PS Power Supply with 110 Ah Battery Charger for 4100ES

Part number / SKU
4100-5401
  • ES-PS power supply
  • UL, ULC

Works with: 4100-5131 ES-PS fan module, 4100-0644 120 VAC PDM harness, 4100-0645 220 VAC PDM harness, 4100-0646 230 VAC PDM harness, 4100-0647 240 VAC PDM harness, 4100-5451 IDNAC module and 3 more models Confirmed by the manufacturer


$606.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4100-5401 is the ES-PS power supply with battery charger for 4100ES fire control units and MINIPLEX transponders. It accepts 120 to 240 VAC, 50/60 Hz, and provides 9.5 A total DC output without a fan, 9.7 A with the 4100-5131 fan and IDNAC modules, 12.7 A with the fan and no IDNAC module, and 5.0 A with regulated 24 V appliance loads.

The supply includes a 24 V auxiliary relay, 24 V auxiliary power (2 A maximum tap, taken from total output), a 110 Ah battery charger and two PDI blocks for compatible option cards. NACs programmed for auxiliary power are limited to 3 A each and 5 A total. The charger is UL/ULC listed for sealed lead-acid batteries up to 110 Ah, is temperature compensated and dual rate, and recharges depleted batteries within 48 hours; batteries over 50 Ah need a remote battery cabinet.

Each power supply needs a PDM harness for its input voltage: 4100-0644 (120 VAC), 4100-0645 (220 VAC), 4100-0646 (230 VAC) or 4100-0647 (240 VAC). The 4100-5451 IDNAC module can only be powered from a 4100-5401 or 4100-5402 supply, and the charger is not available when the ES-PS powers Flex-35 or Flex-50 amplifiers.

  • Best for: main or expansion power in 4100ES cabinets and MINIPLEX transponders, including IDNAC notification loads.
  • System fit: Simplex 4100ES fire control units and MINIPLEX transponders; uses 4100-0644 to 4100-0647 PDM harnesses and the optional 4100-5131 fan.
  • Important to know: one power supply with charger is required for each battery set; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • High output

    9.5 A total DC, up to 12.7 A with the 4100-5131 fan and no IDNAC module.

  • Built-in charger

    charges sealed lead-acid batteries up to 110 Ah and recharges within 48 hours.

  • Auxiliary outputs

    24 V aux relay and 24 V aux power with a 2 A maximum tap.

  • Option card space

    two PDI blocks, plus IDNAC card support on the ES-PS.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4100-5401
General
Brand Simplex
Model 4100-5401
Device Type ES-PS power supply
Device Type Detail With battery charger
Included Features 24 V aux relay, 24 V aux power, 110 Ah battery charger, 2 PDI blocks
Bay Placement Blocks G and H; blocks E and F when configured as backup
System 4100ES fire control units, MINIPLEX transponders
Electrical
AC Input 120 to 240 VAC, 50/60 Hz
Input Current at 120 VAC 3.72 A
Input Current at 220 to 240 VAC 1.82 A
Output without Fan 9.5 A total DC
Output with Fan and IDNAC 9.7 A total DC
Output with Fan, no IDNAC 12.7 A total DC
Output with Regulated 24 V Appliance Loads 5.0 A
Auxiliary Power 2 A maximum tap, taken from total output
NACs as Auxiliary Power 3 A maximum per NAC, 5 A maximum total
Battery Charger Temperature compensated, dual rate; recharges depleted batteries within 48 hours
Battery Capacity Sealed lead-acid up to 110 Ah; over 50 Ah requires remote battery cabinet
PDM Harness One per supply: 4100-0644 (120 VAC), 4100-0645 (220 VAC), 4100-0646 (230 VAC), 4100-0647 (240 VAC)
Environmental
Operating Temperature 32 to 120 °F (0 to 49 °C)
Humidity Up to 93% RH, non-condensing at 90 °F (32 °C)
Listings and Approvals
Agency Approvals UL, ULC
Approval Details Charger UL/ULC listed for batteries up to 110 Ah; 4100ES fire control units UL, ULC, CSFM listed and FM approved
Standards 4100ES system: UL 864 (UOJZ, UUKL, SYZV, UOQY), UL 1076, UL 2017, UL 1730, UL 2572, CAN/ULC-S527, CAN/ULC-S559
