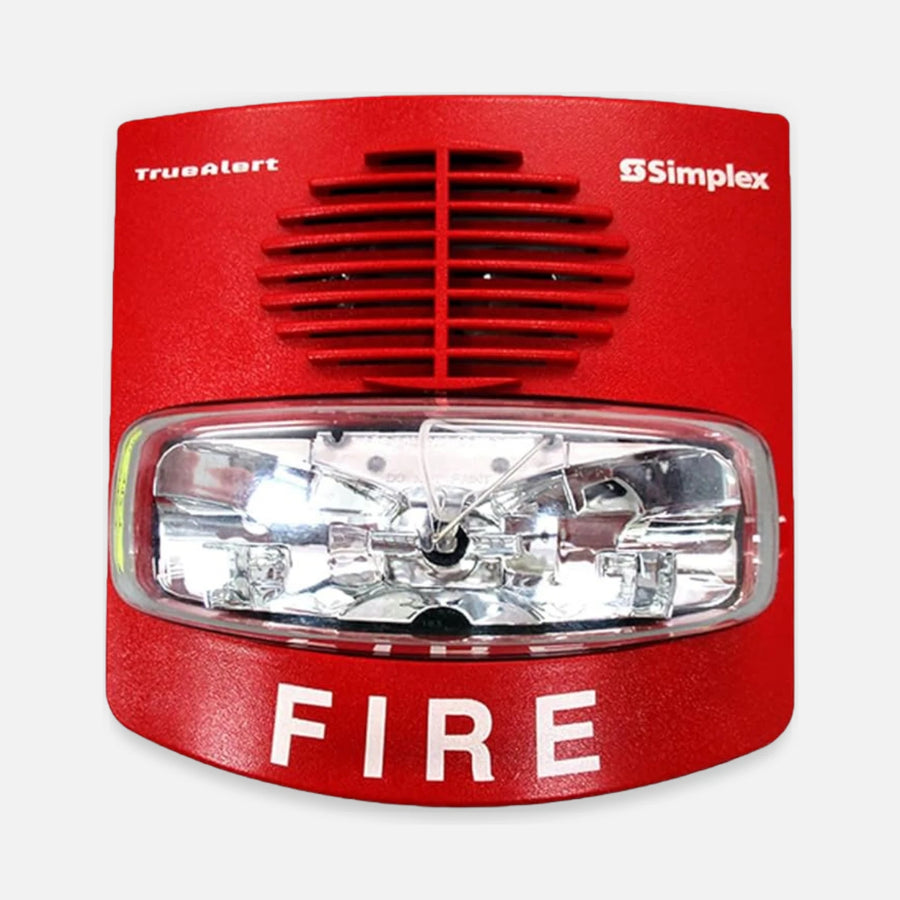

Simplex 4906-9127 TrueAlert Non-Addressable Multi-Candela Horn Strobe, Wall Mount, Red

Part number / SKU
4906-9127
  • Audible/visible horn strobe
  • Conventional, non-addressable
  • Wall
  • Regulated 24 VDC

Works with: Simplex 4007ES Hybrid panel (SmartSync NAC), Simplex 4010ES panel (SmartSync NAC), Simplex 4100ES panel (SmartSync NAC), 4009 IDNet NAC Extender, SmartSync control module (SCM), 4905-9931 adapter plate for 2975-9145 box and 2 more models Confirmed by the manufacturer


$58.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 4906-9127 is a wall mount, non-addressable TrueAlert audible/visible appliance in a red housing that combines an electronic horn with a multi-candela xenon strobe. It uses SmartSync two-wire operation: the horn is on until silenced and the strobe is on until reset, so the horn can be silenced while strobes keep flashing in sync at 1 Hz.

Strobe output is set to 15, 30, 75 or 110 cd with a plug at the back of the housing. The horn sweeps 2400 to 3700 Hz and sounds steady, Temporal or 60 BPM March Time, rated 88 dBA steady at 10 ft at 24 VDC (UL reverberant). It is rated for regulated 24 VDC with an operating range of 16 to 33 VDC and mounts to a single gang, double gang or 4 in square box; terminals accept 18 to 12 AWG.

SmartSync control comes from 4007ES Hybrid, 4010ES and 4100ES panels, the 4009 IDNet NAC Extender or a SmartSync control module, with up to 35 synchronized strobes per NAC. Class B wiring needs a compatible SmartSync NAC or the control module.

  • Best for: conventional notification appliance circuits that need horn and strobe signaling with horn silence on the same two-wire circuit.
  • System fit: SmartSync NACs on Simplex 4007ES Hybrid, 4010ES and 4100ES panels, 4009 IDNet NAC Extender, or a SmartSync control module.
  • Important to know: candela is set on the appliance before mounting; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Selectable candela

    15, 30, 75 or 110 cd from one appliance.

  • Horn silence with strobes on

    SmartSync two-wire control keeps strobes flashing after the horn is silenced.

  • Synchronized flash

    1 Hz flash rate with up to 35 strobes per NAC.

  • Field options

    steady, Temporal or 60 BPM March Time horn patterns.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU4906-9127
General
Brand Simplex
Series TrueAlert
Model 4906-9127
Device Type Audible/visible horn strobe
Addressing Conventional, non-addressable
Mount Type Wall
Housing Color Red
Candela Settings 15, 30, 75 or 110 cd, plug selectable
Flash Rate 1 Hz, synchronized
Synchronization SmartSync two-wire; up to 35 strobes per NAC
Horn Patterns Steady, Temporal or 60 BPM March Time
Horn Tone 2400 to 3700 Hz sweep, modulated at 120 Hz
Horn Output, 24 VDC, Reverberant 88 dBA steady; 84 dBA coded at 10 ft
Horn Output, 24 VDC, Anechoic 94 dBA steady; 95 dBA coded at 10 ft
Electrical
Operating Voltage Regulated 24 VDC
Operating Voltage Detail 16 to 33 VDC operating range
Maximum RMS Current 15 / 30 / 75 / 110 cd: 75 / 116 / 221 / 285 mA
Current at 24 VDC 15 / 30 / 75 / 110 cd: 50 / 77 / 147 / 190 mA
Wiring Terminal blocks, 18 to 12 AWG, two wires per terminal for in/out
Physical
Dimensions 5-1/8 x 5 x 2-3/4 in (130 x 127 x 70 mm), with lens
Back Box Single gang, double gang or 4 in square box
Environmental
Operating Temperature 32 to 122 °F (0 to 50 °C)
Humidity 10 to 93%, non-condensing at 100 °F (38 °C)
