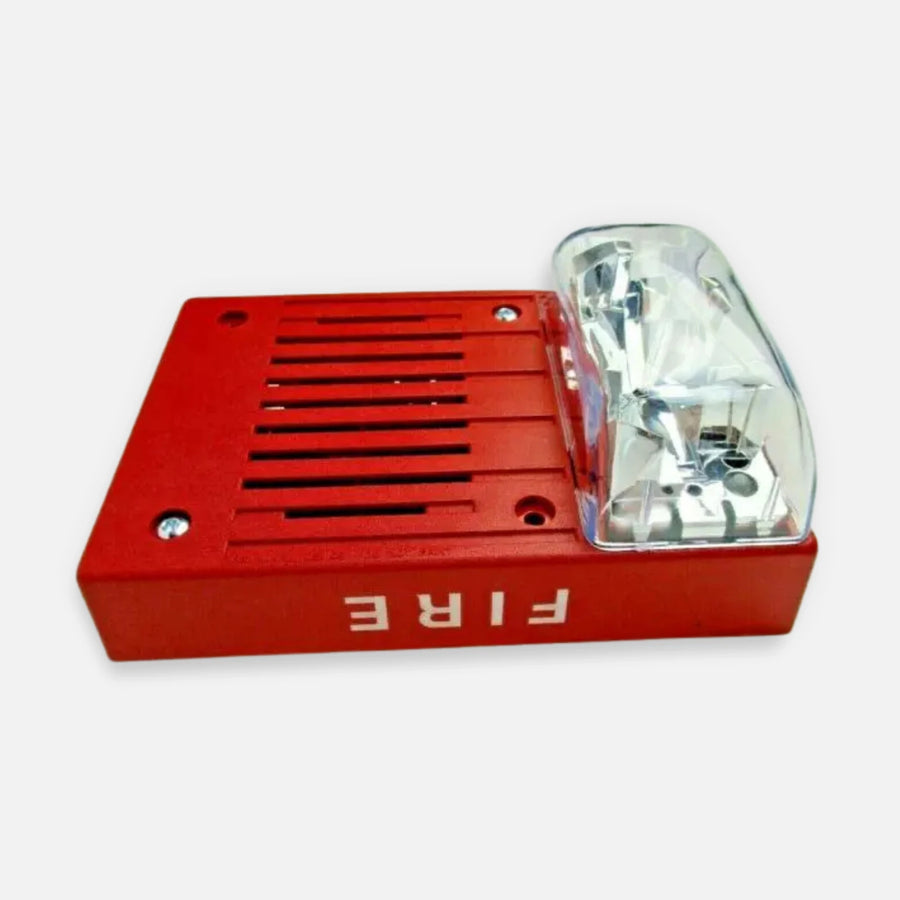

Simplex 4906-9128 TrueAlert Non-Addressable Multi-Candela Horn Strobe, Ceiling Mount, Red
- Part number / SKU
- 4906-9128
- Audible/visible horn strobe
- Conventional, non-addressable
- Ceiling
- Regulated 24 VDC
Works with: Simplex 4007ES Hybrid panel (SmartSync NAC), Simplex 4010ES panel (SmartSync NAC), Simplex 4100ES panel (SmartSync NAC), 4009 IDNet NAC Extender, SmartSync control module (SCM) Confirmed by the manufacturer
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Free Economy shipping available at checkout
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for fire alarm systems
-
Selectable candela
15, 30, 75 or 110 cd from one appliance.
-
Horn silence with strobes on
SmartSync two-wire control keeps strobes flashing after the horn is silenced.
-
Synchronized flash
1 Hz flash rate with up to 35 strobes per NAC.
-
Field options
steady, Temporal or 60 BPM March Time horn patterns.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | 4906-9128 |
| General | |
| Brand | Simplex |
| Series | TrueAlert |
| Model | 4906-9128 |
| Device Type | Audible/visible horn strobe |
| Addressing | Conventional, non-addressable |
| Mount Type | Ceiling |
| Housing Color | Red |
| Candela Settings | 15, 30, 75 or 110 cd, plug selectable |
| Flash Rate | 1 Hz, synchronized |
| Synchronization | SmartSync two-wire; up to 35 strobes per NAC |
| Horn Patterns | Steady, Temporal or 60 BPM March Time |
| Horn Tone | 2400 to 3700 Hz sweep, modulated at 120 Hz |
| Horn Output, 24 VDC, Reverberant | 88 dBA steady; 84 dBA coded at 10 ft |
| Horn Output, 24 VDC, Anechoic | 94 dBA steady; 95 dBA coded at 10 ft |
| Electrical | |
| Operating Voltage | Regulated 24 VDC |
| Operating Voltage Detail | 16 to 33 VDC operating range |
| Maximum RMS Current | 15 / 30 / 75 / 110 cd: 92 / 140 / 288 / 376 mA |
| Current at 24 VDC | 15 / 30 / 75 / 110 cd: 57 / 88 / 167 / 213 mA |
| Wiring | Terminal blocks, 18 to 12 AWG, two wires per terminal for in/out |
| Physical | |
| Dimensions | 4-3/4 x 6-7/8 x 2-5/8 in (121 x 175 x 67 mm), with lens |
| Back Box | Standard 4 in box |
| Environmental | |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Humidity | 10 to 93%, non-condensing at 100 °F (38 °C) |
