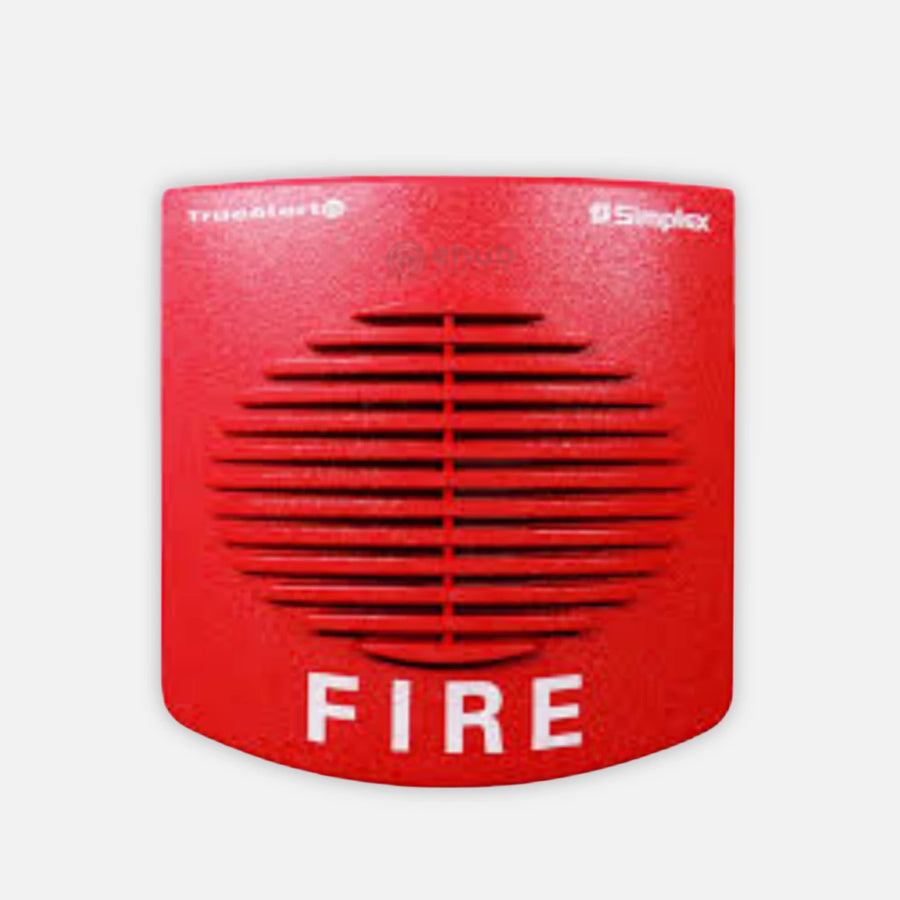

Simplex 49AO-WRF TrueAlert ES Addressable Wall Horn, Red, FIRE

Part number / SKU
49AO-WRF
  • Audible-only electronic horn
  • Addressable, IDNAC SLC
  • Wall, flush or surface
  • 23 to 31 VDC
  • UL, ULC, CSFM, FM

Works with: Simplex panels with IDNAC SLC, Earlier TrueAlert addressable systems, 4905-9937 red surface mount adapter skirt, 4905-9931 adapter plate for 2975-9145 box, 2975-9145 mounting box Confirmed by the manufacturer


$50.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 49AO-WRF is a TrueAlert ES addressable audible-only notification appliance (electronic horn) for wall mounting, with a red housing and white FIRE lettering. It receives power, supervision and control from a Simplex fire alarm panel over an IDNAC signaling line circuit, and each horn is individually supervised.

The horn sweeps 2400 to 3700 Hz, modulated at 120 Hz, and plays Temporal Code 3, March Time at 20, 60 or 120 per minute, continuous or Temporal Code 4, selected at the panel. High or low output, about 6 dBA apart, is selectable at the device or the controller; at 23 VDC it is rated 89.8 dBA steady high at 10 ft (UL 464 reverberant). Class B circuits can be T-tapped, Class A needs in/out wiring, and terminals take 18 to 12 AWG.

The horn mounts on a separate mounting plate to a single gang, double gang or 4 in square box, flush or surface, and covers can be swapped without disturbing the wiring. Non-intrusive magnet test diagnostics and an electrical test point accessible without removing the cover simplify checkout, and it works with earlier TrueAlert addressable systems for upgrades.

  • Best for: Simplex IDNAC addressable notification circuits that need audible-only signaling with individual supervision.
  • System fit: Simplex fire alarm panels with IDNAC SLCs; compatible with earlier TrueAlert addressable systems.
  • Important to know: tones and output level are set from the panel or device; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Individually supervised

    each horn is addressed and supervised on the IDNAC SLC.

  • Selectable output

    high or low setting about 6 dBA apart.

  • Multiple patterns

    Temporal Code 3, Temporal Code 4, March Time or continuous.

  • Easy service

    magnet test and front test point without removing the cover.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU49AO-WRF
General
Brand Simplex
Series TrueAlert ES
Model 49AO-WRF
Device Type Audible-only electronic horn
Addressing Addressable, IDNAC SLC
Mount Type Wall, flush or surface
Housing Red with white FIRE lettering
Horn Tone 2400 to 3700 Hz sweep, modulated at 120 Hz
Horn Patterns Temporal Code 3, March Time (20, 60 or 120 per min), continuous, Temporal Code 4
Output Levels High or low, about 6 dBA apart
Sound Output, UL 464, 23 VDC 89.8 dBA steady high; 83.4 dBA steady low at 10 ft
Sound Output, UL 464 Coded, 23 VDC 86.0 dBA high; 79.2 dBA low at 10 ft
Sound Output, ULC S525, 23 VDC 92.5 dBA steady high; 86.7 dBA steady low at 10 ft
Electrical
Operating Voltage 23 to 31 VDC
Operating Voltage Detail 17 VDC ratings apply to legacy special application
SLC Source Voltage 29 VDC constant, including standby on battery
Maximum RMS Current 23 mA at 31 VDC
Supervisory Load 1 unit load (0.8 mA panel current)
SLC Loading Up to 127 addresses and 139 unit loads per SLC
Wiring 18 to 12 AWG, two wires per terminal for in/out; UTP recommended
Class B Distance Up to 10,000 ft (3048 m) per SLC, T-taps allowed
Distance to Any Appliance Up to 4000 ft (1219 m)
Physical
Housing Material Impact-resistant, flame-retardant thermoplastic
Back Box Single gang, double gang or 4 in square, with separate mounting plate
Surface Adapter Skirt 5-3/8 x 5-1/4 x 1-5/8 in; 3-1/8 in (79 mm) total depth with horn
Environmental
Operating Temperature 32 to 122 °F (0 to 50 °C)
Humidity 10 to 93%, non-condensing at 104 °F (40 °C)
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM
Approval Details UL, ULC, CSFM listed; FM approved
CSFM 7135-0026:0372
Standards UL 464; ULC S525
