Simplex 49AV-WRF TrueAlert ES Addressable Multi-Candela Horn Strobe, Wall, Red, FIRE

Part number / SKU
49AV-WRF
  • Multi-candela horn strobe
  • Addressable, IDNAC SLC
  • Wall, flush or surface
  • UL, ULC, CSFM, FM

Works with: Simplex 4100ES with EPS or EPS+ power supply (IDNAC), 4009 IDNAC Repeater, 4100ES / 4100U with TrueAlert Power Supply (legacy, 15 to 110 cd), 4009T TrueAlert Addressable Controller (legacy), 49MP-AVVOWR red mounting plate, 4905-9937 red surface mount adapter skirt and 2 more models Confirmed by the manufacturer


$99.93

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

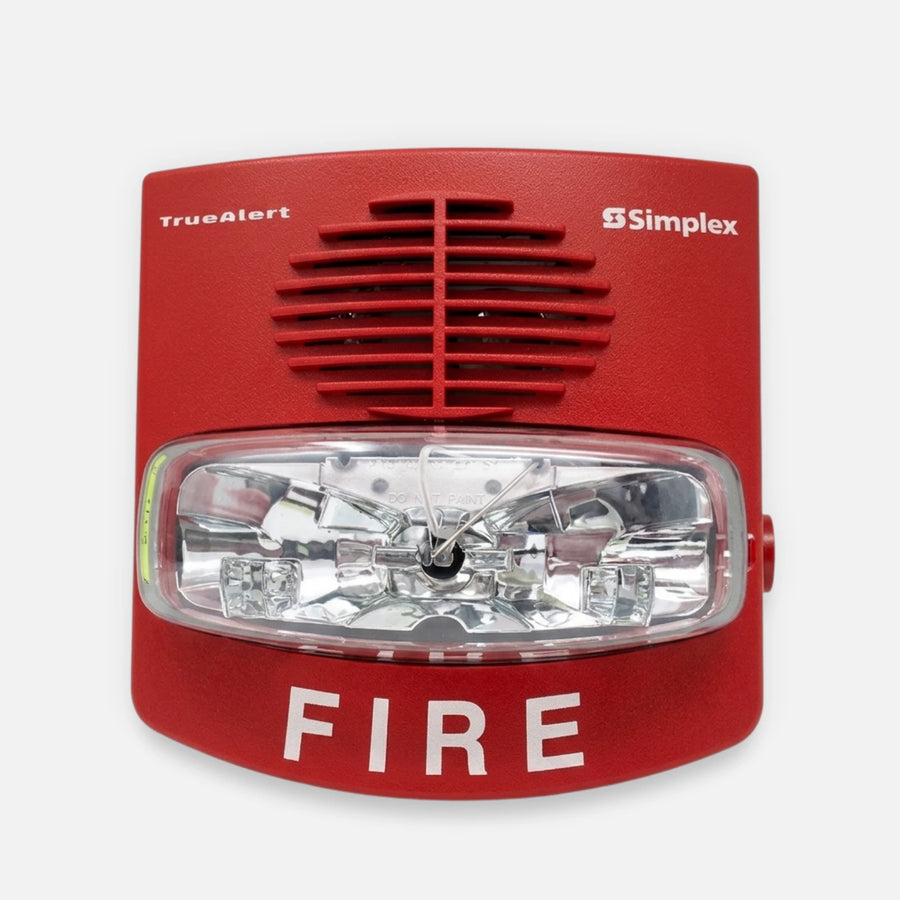

The Simplex 49AV-WRF is a TrueAlert ES individually addressed, multi-candela audible/visible appliance for wall mounting, with a red cover, FIRE wording and clear lens. Power, supervision and control come from Simplex fire alarm panels over IDNAC signaling line circuits, with separate visible and audible control on one two-wire circuit.

The xenon strobe flashes in sync at 1 Hz and is set to 15, 30, 75, 110, 135 or 185 cd from the panel or by jumper. The horn sweeps 2400 to 3700 Hz and plays Temporal Code 3, March Time at 20, 60 or 120 bpm or Temporal Code 4, with high or low output about 5 dBA apart; it is rated 90.1 dBA steady high at 10 ft on an IDNAC SLC (UL 464 reverberant). With the horn on high, current on an IDNAC SLC runs from 59 mA at 15 cd to 215 mA at 185 cd.

The appliance mounts on a separate mounting plate to a single gang, double gang or 4 in square box 1-1/2 in deep, flush or surface, and measures 5-1/8 x 5 x 1-1/2 in with cover. It works with 4100ES panels with EPS or EPS+ power supplies and 4009 IDNAC Repeaters, and with legacy TrueAlert controllers at 15 to 110 cd.

  • Best for: Simplex IDNAC addressable notification circuits that need horn and strobe signaling with per-appliance control.
  • System fit: Simplex 4100ES with EPS or EPS+ power supplies on IDNAC SLCs, 4009 IDNAC Repeater; legacy 4100ES/4100U TrueAlert power supply and 4009T controller.
  • Important to know: legacy TrueAlert controllers support 15 to 110 cd only; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Six candela settings

    15, 30, 75, 110, 135 or 185 cd, set from the panel or by jumper.

  • Separate control

    horn and strobe controlled independently on one two-wire IDNAC circuit.

  • Selectable sound

    high or low output about 5 dBA apart, with Temporal 3, Temporal 4 or March Time.

  • Long circuits

    up to 10,000 ft per SLC with Class B T-taps.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU49AV-WRF
General
Brand Simplex
Series TrueAlert ES
Model 49AV-WRF
Device Type Multi-candela horn strobe
Device Type Detail Addressable
Addressing Addressable, IDNAC SLC
Mount Type Wall, flush or surface
Cover Red, FIRE wording, clear lens
Candela Settings 15, 30, 75, 110, 135 or 185 cd
Flash Rate 1 Hz, synchronized
Horn Patterns Temporal Code 3, March Time (20, 60 or 120 bpm), Temporal Code 4
Horn Tone 2400 to 3700 Hz sweep, modulated at 120 Hz
Output Levels High or low, about 5 dBA apart
Sound Output, UL 464, IDNAC SLC 90.1 dBA steady high; 83.6 dBA steady low at 10 ft
Sound Output, ULC S525, IDNAC SLC 94.1 dBA steady high; 88.1 dBA steady low at 10 ft
Electrical
Current, Horn High, IDNAC SLC 15 cd 59 mA; 30 cd 67 mA; 75 cd 107 mA; 110 cd 139 mA; 135 cd 166 mA; 185 cd 215 mA
Supervisory Load 1 unit load per SLC
SLC Loading Up to 63 addresses and 75 unit loads per SLC
Wiring 18 to 12 AWG (0.82 to 3.31 mm²), two wires per terminal; UTP recommended
Class B Distance Up to 10,000 ft (3048 m) per SLC with T-taps
Distance to Any Appliance Up to 4000 ft (1219 m)
Maximum Wiring Resistance 26 Ω between compatible appliances
Physical
Dimensions 5-1/8 x 5 x 1-1/2 in (130 x 127 x 38 mm), with cover
Back Box Single gang, double gang or 4 in square, 1-1/2 in (38 mm) deep
Surface Adapter Skirt 4905-9937 red, 5-3/8 x 5-1/4 x 1-5/8 in
Environmental
Operating Temperature 32 to 122 °F (0 to 50 °C)
Humidity 10 to 93%, non-condensing at 104 °F (40 °C)
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM
Approval Details UL, ULC, CSFM listed; FM approved (wall A/V)
CSFM 7135-0026:0373
Standards Strobe UL 1971 and ULC S526; horn UL 464 and ULC S525
