Simplex · Fire Alarm

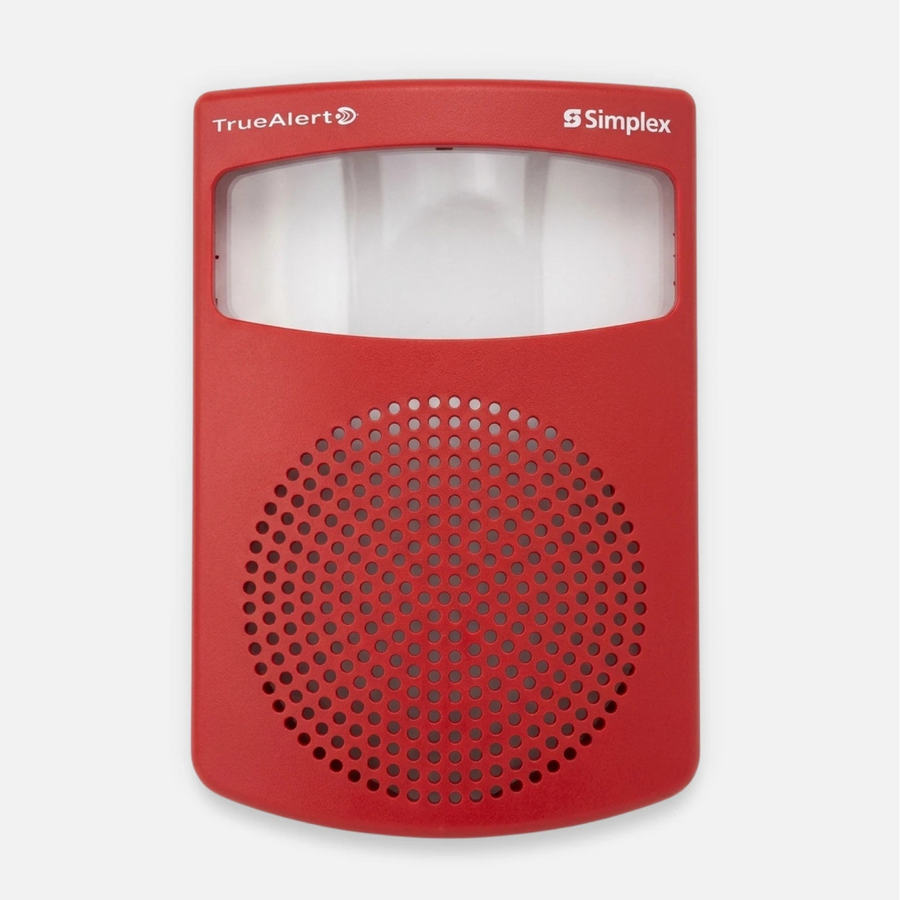

Simplex 49SVC-WRFIRE TrueAlert Speaker/Visible Wall Cover, Red, FIRE

Part number / SKU
49SVC-WRFIRE
  • Speaker/visible wall cover
  • Wall

Works with: 49SV-APPLW speaker/visible appliance, 49MP-SVWR red mounting plate Confirmed by the manufacturer


$18.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Simplex 49SVC-WRFIRE is the red wall cover with FIRE lettering for TrueAlert addressable wall-mount speaker/visible appliances. A cover is required when ordering the 49SV-APPLW speaker/visible appliance, which is supplied without one, and it pairs with the 49MP-SVWR red mounting plate.

The 49SV-APPLW appliance it finishes has 1/4, 1/2, 1 and 2 W speaker taps on 25 or 70.7 VRMS lines, with 400 to 4000 Hz response, and a strobe selectable at 15, 30, 75, 110, 135 or 185 cd on an IDNAC SLC.

  • Best for: completing a 49SV-APPLW wall speaker/visible appliance in a red FIRE finish.
  • System fit: TrueAlert addressable 49SV-APPLW wall speaker/visible appliances with the 49MP-SVWR red mounting plate.
  • Important to know: the cover does not include the speaker/visible appliance or mounting plate; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Required finish

    the 49SV-APPLW appliance comes without a cover and needs one.

  • Clear marking

    red cover with FIRE lettering.

  • Matched set

    pairs with the 49MP-SVWR red mounting plate.

  • Full appliance range

    fits a speaker/visible with 1/4 to 2 W taps and 15 to 185 cd strobe.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU49SVC-WRFIRE
General
Brand Simplex
Series TrueAlert ES
Model 49SVC-WRFIRE
Device Type Speaker/visible wall cover
Color Red
Lettering FIRE
Mount Type Wall
Used With 49SV-APPLW speaker/visible appliance (cover required)
Mounting Plate 49MP-SVWR, red
Appliance Speaker Taps 1/4, 1/2, 1 or 2 W
Appliance Line Voltage 25 or 70.7 VRMS
Appliance Frequency Response 400 to 4000 Hz
Appliance Candela Settings 15, 30, 75, 110, 135 or 185 cd
Environmental
Appliance Operating Temperature 32 to 120 °F (0 to 49 °C)
Appliance Humidity 10 to 93%, non-condensing at 104 °F (40 °C)
