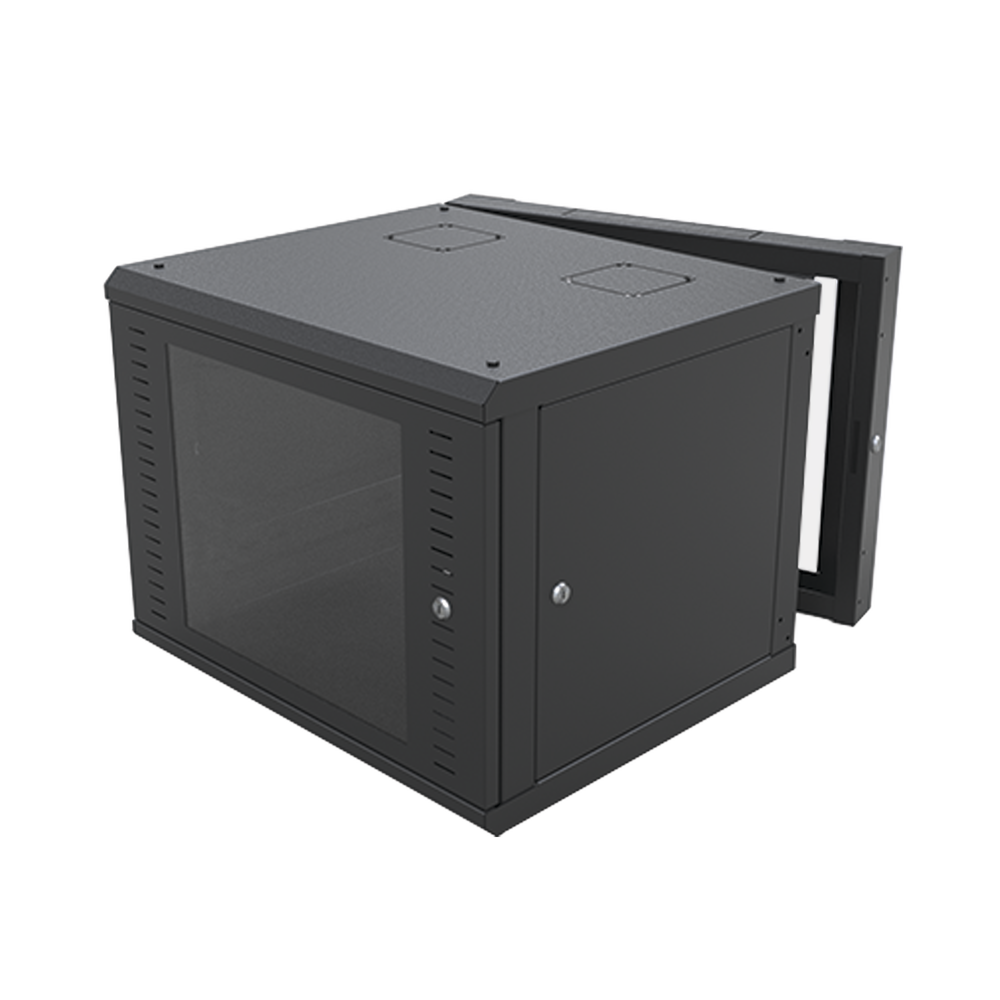

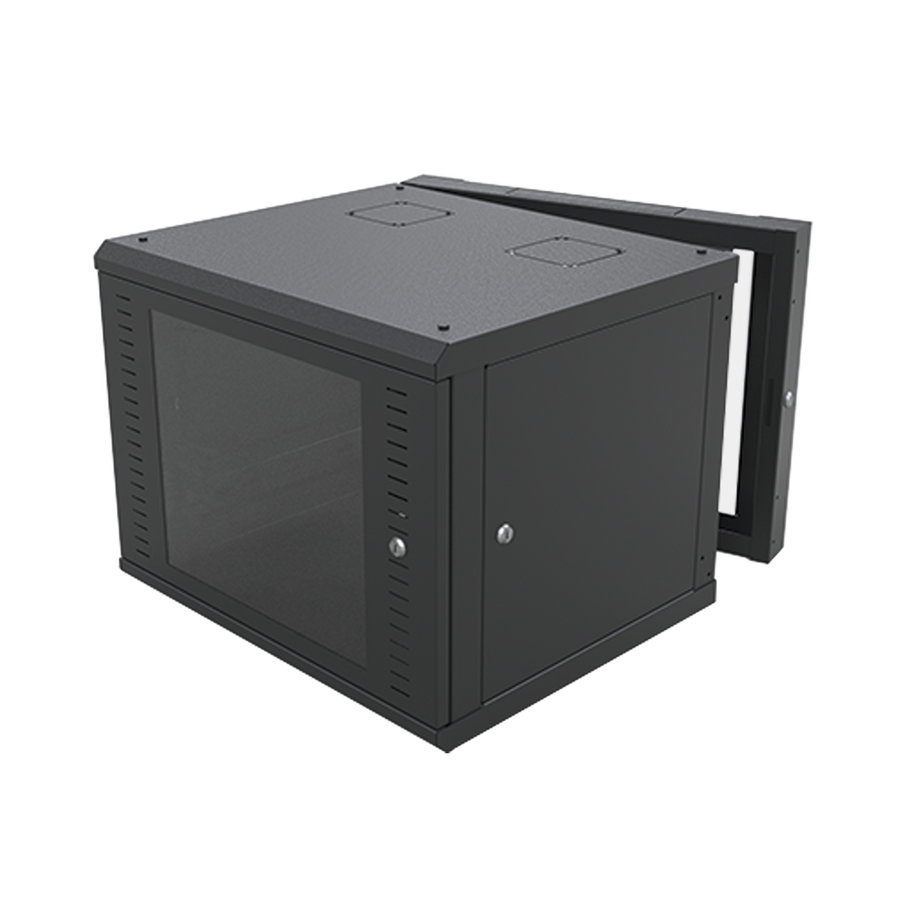

Linkedpro SR-1909-GAP-V4 9U Wall-Mount Swing Rack Cabinet Tempered Glass
Product identifier
SKU
SR-1909-GAP-V4
$489.24
Out of stock
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Highlighted Features:
- Installation Type: Wall-mounted.
- The body rotates on its right (or left) axis for free access to equipment connections.
- Tempered glass door.
- Removable side panels.
- The 4 rack posts can be adjusted for better equipment installation.
- Security lock on the door (one key combination per lock).
- Detachable door with reversible opening direction.
- Prepared for 1 or 2 single fans (LP-VENT-BASIC) or 1 dual fan (LP-VENT-02V2)
- Shipped unassembled.
Application:
- Video surveillance systems.
- Backup units.
- Internet service distribution.
- Two-way radio communication.
- Radio communication.
- Copper and fiber cable management.
Included Equipment:
- Metal frame (top, sides, rack posts).
- Black screws for assembly.
- Mounting hardware for three rack-mounted devices (12 cage nuts, 12 screws, and washers).
- Packaging.
Physical Characteristics:
- Application: Indoor.
- High-quality steel.
- Manufactured according to ANSI/TIA RS-310-D standards.
- Weight: 26.28 Kg (without packaging).
- Weight: 57.93 lbs (without packaging).
- Load capacity: 45 Kg.
- Load capacity: 99.21 lbs.
- Dimensions: 24.76 x 19.17 x 23.70 inches (Width x Height x Depth).
- Dimensions: 629 x 487 x 602 mm
- Front to back rack distance: 20.79 inches.
- Front to back rack distance: 528 mm.
- Rack Units: 9.
- Maximum working depth: 16.93 inches.
- Maximum working depth: 430 mm.
- Color: Semi-matte black.
- Baked polyester-based coating.
- Not prepared for floor use (not compatible with wheels).
Key Features
- Swing-Out Design for Easy Rear Access to Connections
- Tempered Glass Front Window for Equipment Visibility
- Removable Side Panels for Quick Internal Access
- Four Adjustable Rack Posts for Maximum Equipment Adaptability
- Prepared for Single or Dual Fan Installation Options
- ANSI/TIA RS-310-D Standard Compliant Construction
