RF ELEMENTS
RF Elements STA-SMA SMA adapter for StarterDish RF elements antenna
Product identifier
SKU
STA-SMA
$39.93
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
RP-SMA Coaxial Interface For StarterDishTM Antennas

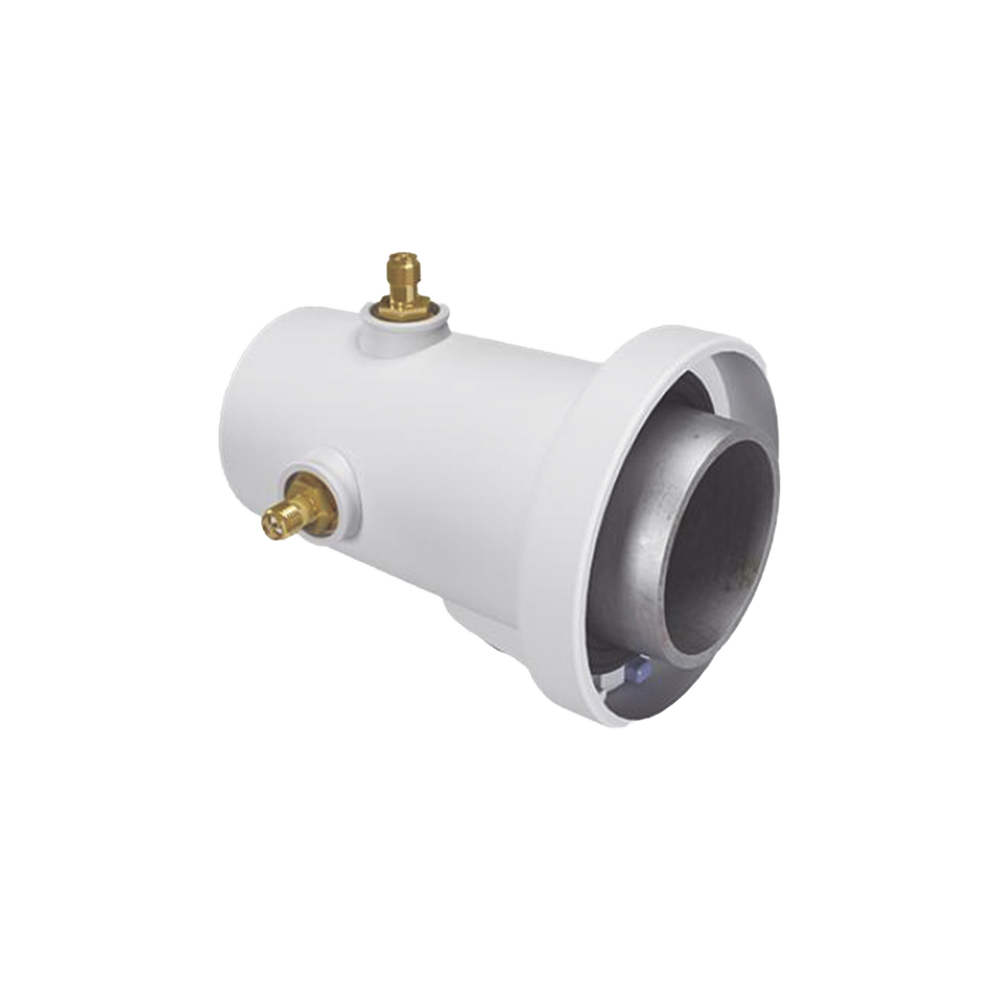

StarterAdapterTM SMA connects to StarterDishTM antennas and provides female RP-SMA connectors - standard coaxial interface for any 3rd party radios. STA-SMA has dual linear H+V polarization.
Performance
STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8 throughout the whole bandwidth.
Minimized Loss
STA-SMA is a waveguide-based adapter. Since waveguide has near-zero loss, the adapter introduces practically zero attenuation in the waveguide part. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.
Key Features
- RP-SMA Female Connectors for Universal Compatibility With Third-Party Radios
- Dual Linear H+V Polarization for Maximum Flexibility in Signal Reception
- 5150-5950 MHz Frequency Range With VSWR Below 1.8 Across Bandwidth
- Waveguide-Based Design With Near-Zero Loss for Minimal Signal Attenuation
- Optimized Coaxial to Waveguide Transition for Superior Performance
- Compact Design for Easy Integration Into Existing Antenna Systems
