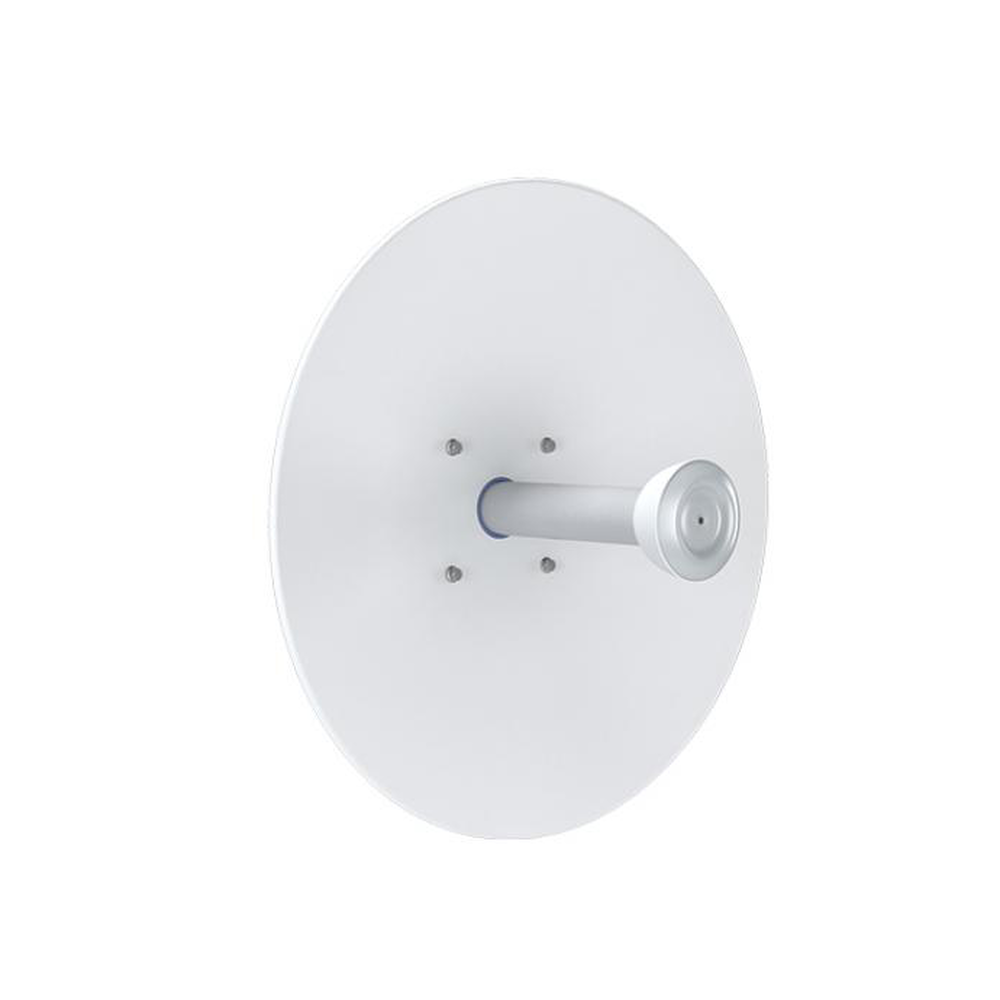

RF Elements STD-27-UM-5-PACK (5-Pack) 27dBi Parabolic Dish Antenna Waveguide
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Versatile CPE Antennas
StarterDishTM UM are parabolic dish antennas with high directivity designed for CPE deployment scenarios. The StarterDishTM UM is a convenient and affordable antenna series providing wide range of footprint, gain, and connectivity options.
Beam Performance
StarterDishTM UM antennas are designed for the best possible performance having minimized side lobes, enabling their deployment as CPE antennas in high interference environment.
Balanced Gain for Both Polarizations
StarterDishTM UM antennas provide stable gain performance over the whole working frequency band and both polarizations. Stable gain results in dependable field performance when changing radio channels.
Flexible Radio Connectivity
The StarterDishTM UM antennas provide waveguide connection to Ubiquiti Networks waveguide connector and Mimosa waveguide connector straight out of the box. Separately sold StarterAdapterTM enables connectivity with any radio with coaxial interface. This adapter provides a pair of RP-SMA connectors and is not part of the StarterDishTM UM package.
Slick Pole Mount
StarterDishTM antennas come with integrated pole mount. It is simple, slick, and light weight. The range of pole diameters it supports is from 20 to 55 mm (the upper part of pole diameter range is recommended for the best results).
Light Weight
StarterDishTM antennas are very light. Low weight provides multiple benefits when installing CPEs in environment with few mounting options. Low weight is also a big plus for field technicians and installation teams.
Cost-efficient Multi Packs
StarterDishTM UM Antennas come in cost-efficient five-packs to minimize shipping costs and packaging waste. Minimized amount of packaging elements saves time in workshop when preparing bulk deployments.
Key Features
- High 27 dBi Gain for Superior Signal Strength and Range
- 5150-5950 MHz Frequency Range for 5 GHz Band Operation
- Minimized Side Lobes Reduce Interference in Crowded Environments
- Lightweight Construction for Easy Installation and Handling
- Integrated Pole Mount for 20-55 mm Diameter Posts
- Direct Connectivity for C5X, IS-5AC, PS-5AC and IS-M5 Devices
