Suprema · Access Control

Suprema BioEntry W2 BEW2-OHPB Outdoor Fingerprint Reader with HID Prox, PoE, IP67, IK09

Manufacturer part number
BEW2-OHPB
EhubAmerica SKU
BEW2OHPB(US)
  • IP67

$915.99

In stock

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

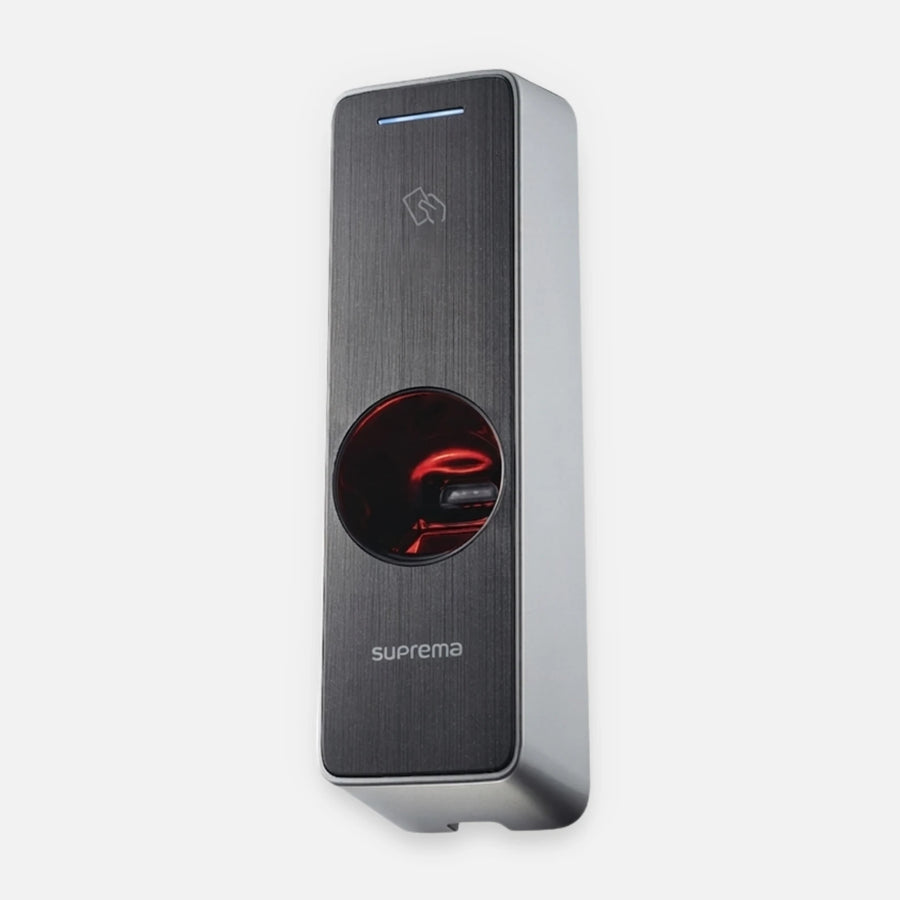

The Suprema BioEntry W2 is an outdoor IP fingerprint reader and door controller for Suprema access control systems. It uses an optical fingerprint sensor with live finger detection and stores up to 500,000 users and 1,000,000 text logs. The BEW2-OHPB version reads 125 kHz HID Prox cards.

It connects over 10/100 Mbps Ethernet and is powered by PoE (IEEE 802.3af) or 12 VDC. One RS-485 port (OSDP), one Wiegand port selectable for input or output, two TTL inputs and one relay connect door hardware and other readers. The slim housing measures 50 x 172 x 43.5 mm and is rated IP67 and IK09; it has a multi color LED, buzzer and tamper switch.

  • Best for: outdoor and indoor doors that need fingerprint plus card authentication.
  • System fit: Suprema access control platforms; OSDP over RS-485 and Wiegand for third party panels.
  • Important to know: the reader has no display; power supply not included.

Why teams choose it

Built for secure sites

  • Fingerprint plus card

    optical sensor with live finger detection and HID Prox reading.

  • Large capacity

    up to 500,000 users and 1,000,000 text logs.

  • Single cable install

    PoE 802.3af powers the reader over Ethernet.

  • Outdoor housing

    IP67 and IK09 rated.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUBEW2OHPB(US)
General
Brand Suprema
Model BEW2-OHPB
Series BioEntry W2
Device Type Outdoor fingerprint reader and controller
Fingerprint Sensor Optical, live finger detection
Card Technology 125 kHz HID Prox
Max Users 500,000
Max Text Logs 1,000,000
Indicators Multi color LED, multi tone buzzer
Tamper Yes
Interfaces
Ethernet Ports 1x 10/100 Mbps
RS-485 1, OSDP
Wiegand 1, input or output
TTL Inputs 2
Relay 1
Power
Power Method PoE 802.3af or 12 VDC
DC Input 12 VDC
Physical
Dimensions 50 x 172 x 43.5 mm, W x H x D
Environmental
IP Rating IP67
IK Rating IK09
Listings and Approvals
Certifications CE, FCC, KC, RoHS, REACH, WEEE
