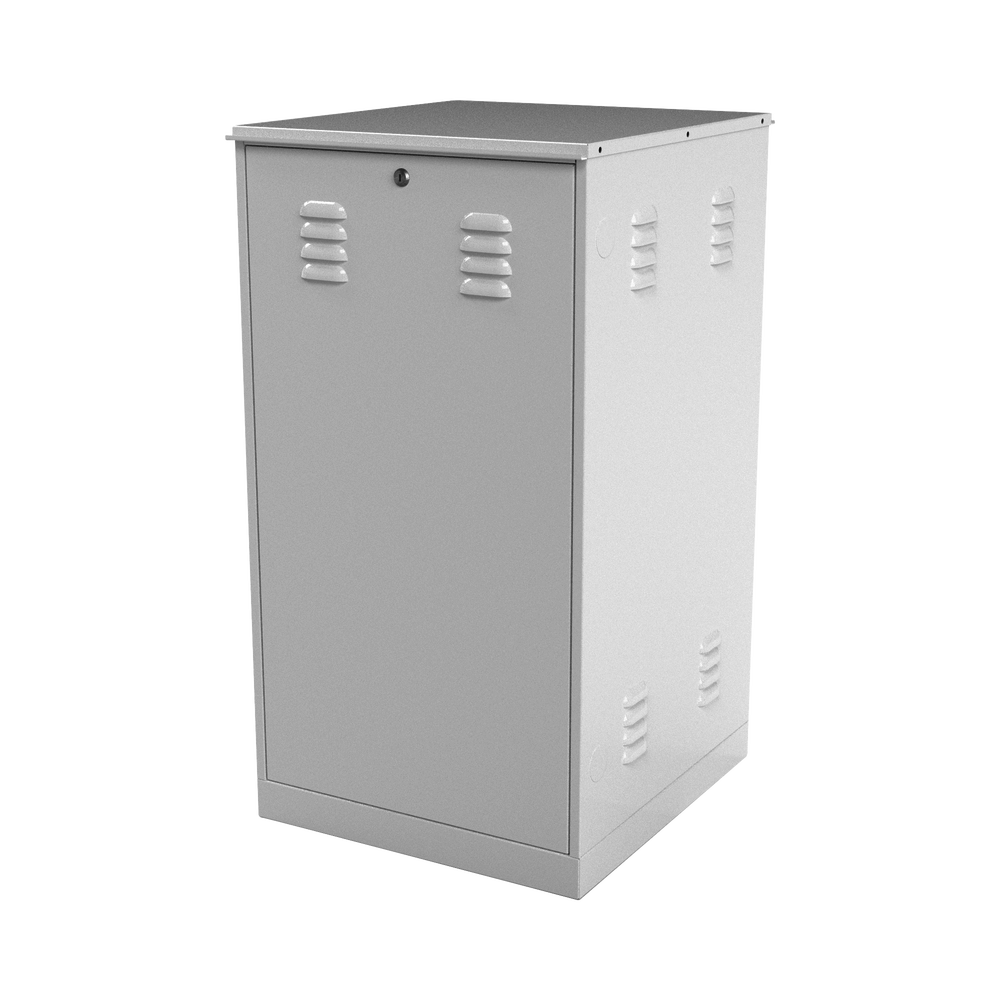

Linkedpro SVR-3419 19" 20U Heavy Duty Outdoor Cabinet with Standard Rack
Product identifier
SKU
SVR-3419
$401.30
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Functional Features:
- Double swing door with lock.
- 2 openings on each side for cable passthrough, protected by plastic caps when not in use.
- ANSI / TIA RS-310-D.
- Includes 3 hardware kits (TUERACK and TORRACK).
- Includes floor levelers.
- Compatible wheels ROD4-2.5".
Physical Characteristics:
- Paint: electrostatic beige.
- Application: indoor/outdoor
- Material: 14-gauge steel rack, 16-gauge base and 22-gauge walls and doors.
- Rack units: 20.
- Ingress Protection: IP22.
- Weight: 79.36 (36 kg).
- Dimensions: 23.07 x 38.30 x 22.99" (586 x 973 x 584 mm) (W x H x D).
- Working depth: 18.11" (460 mm)
Compatible equipment:
- Radio communication and surveillance equipment prepared to be installed at 19" rack.
- ROD4-2.5''. Wheel kit for the enclosure.
Recommendations:
- Ensure that the installation is performed by a trained professional.
- Check if the hardware is properly adjusted periodically.
- Set up a maintenance plan to clean the hardware.
-
*Color may vary. Weight without accessories and packaging. We manufacture cabinets to suit your needs. If you have any questions, please contact us.
FOR ANY QUESTION OR COMMENT CONTACT OUR ENGINEERING DEPARTMENT.
Key Features
- Double Swing Doors With Lock for Secure Equipment Access
- Side Cable Pass-Through Holes With Plastic Plugs
- Complies With ANSI/TIA RS-310-D Standard for Data Centers
- Includes 3 Hardware Kits for Easy Equipment Mounting
- Leveling Feet and Optional Casters for Stable Installation
- IP22 Rated for Indoor and Outdoor Environmental Protection
