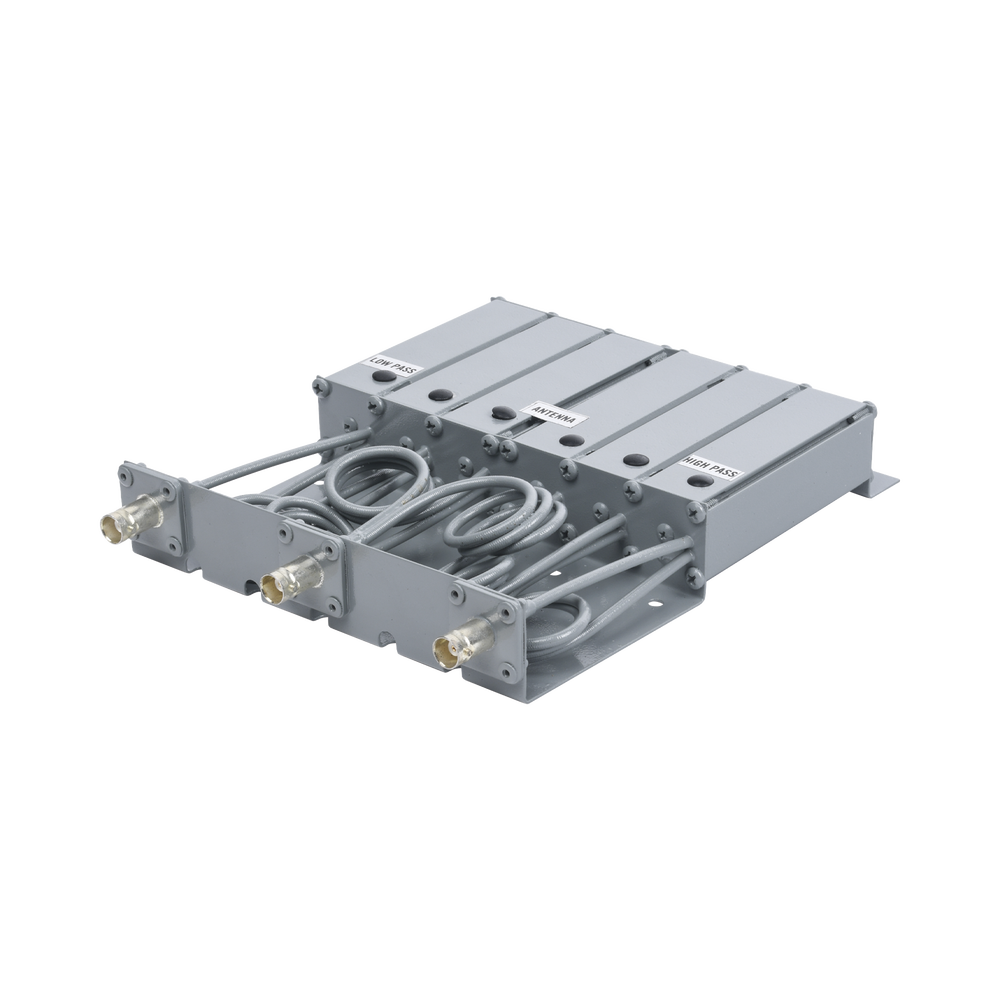

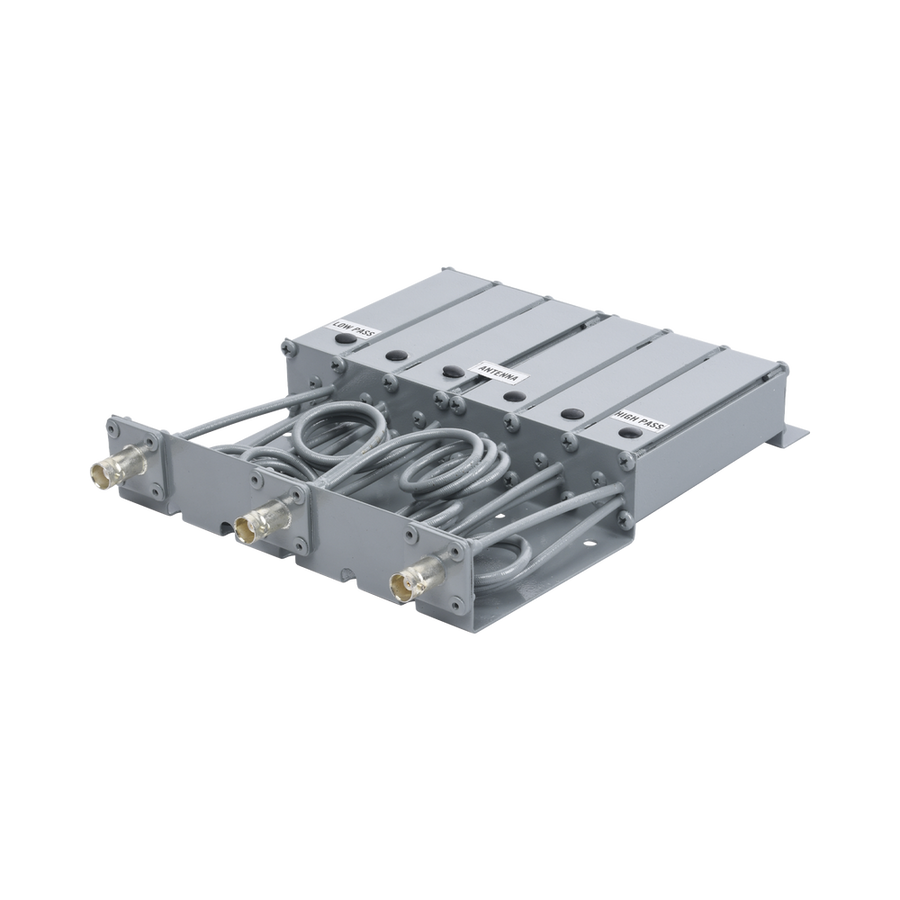

Epcom SYS-1533-2 VHF Duplexer 6-Cavity 80dB Isolation 50W BNC
Product identifier
SKU
SYS-1533-2
$246.24
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Specifications
- 5 to 8 MHz Tx / Rx split rejection frequency band.
- Maximum insertion loss: 1.2 dB.
- Isolation between Tx and Rx: 80 dB.
- Wide range of Full mobile radios and repeaters (50 W max).
- Minimum frequency shift caused by temperature changes.
- Copper-plated tube resonators (UHF) and tinned copper helical resonators (VHF).
- VHF and UHF teflon insulation.
- Interconnection with conformable cables reduces insertion loss.
- Shielding with 6063-T5 extruded aluminum cavities.
- Standard BNC Female Connectors with an option for N Female adding N.
- Dimensions: 6.25" x 1.25" x 8.5" (159 x 31.8 x 216 mm)
- Weight: 2 lb (0.92 Kg)
We Manufacture Jumpers
- Any cable, any length, any connector, any amount
- Customized equipment and great customer support
- High-quality, reliable, and very aesthetic products are offered at a reduced price.
- We only use the highest quality cables and connectors.
Key Features
- 6 Cavity Helical Copper Resonators for Superior Filtering Performance
- 5 to 8 MHz TX-RX Frequency Separation for Flexible Channel Spacing
- 80 dB Isolation Between Transmit and Receive Channels
- Tinned Copper Helical Resonators With Minimal Thermal Drift
- Extruded 6063-T5 Tempered Aluminum Shielding for RF Protection
- Flexible Interconnect Cables With Less Than 1.2 dB Insertion Loss
